"Shut Down a Server Node" on page
2.
Remove the top cover.
a.

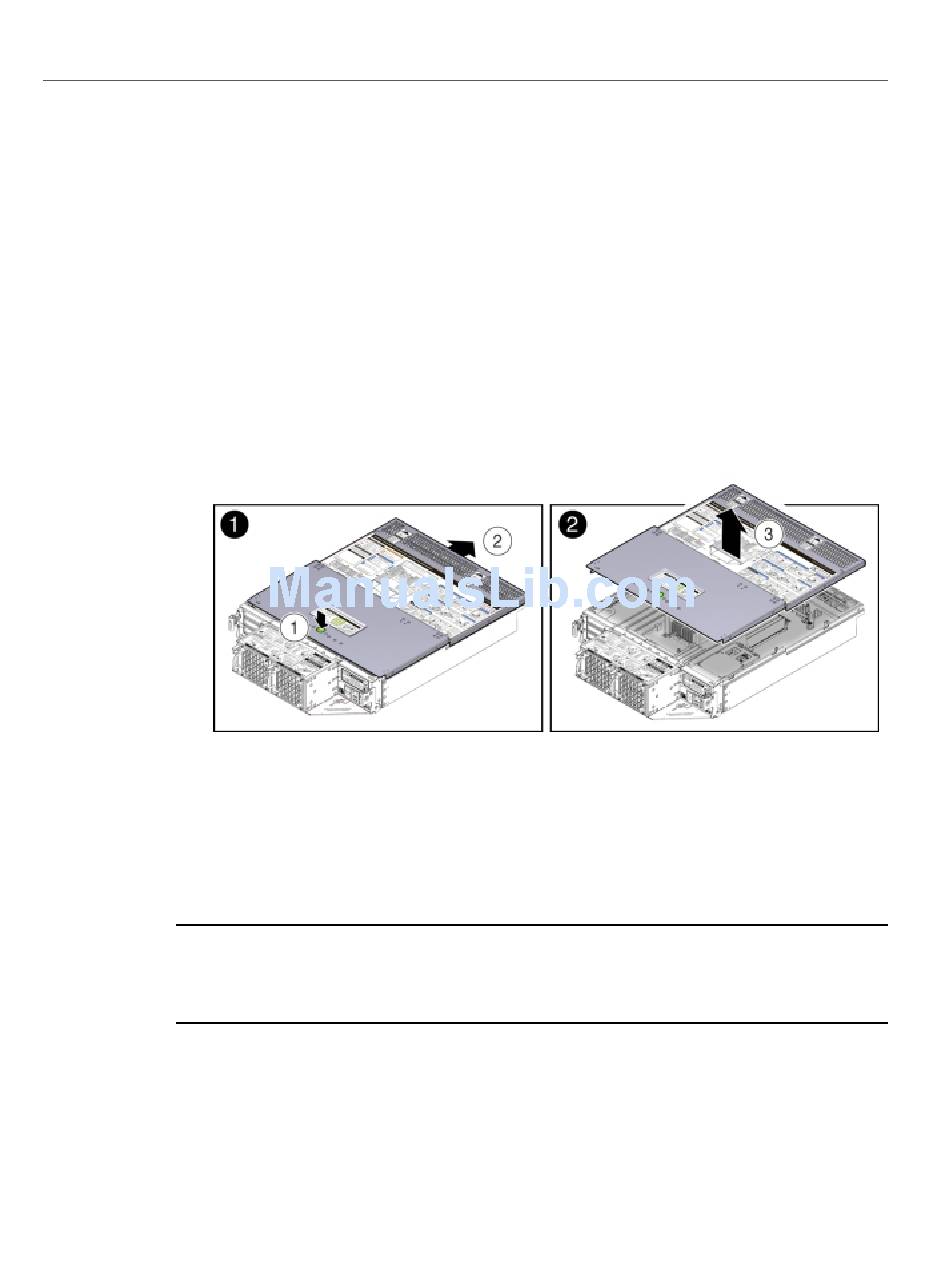

To unlatch the server node top cover, press and hold the green release
button on the top of the server node cover [1].
b.
Using the indented area near the green release button, slide the cover
toward the front of the server node about 0.5 inches (12.7 mm) [1].
c.
Lift the cover up and remove it [2].
Removing the Middle Section of the System Top
Cover
Note -
Information in this appendix does NOT apply to Oracle Database Appliance X3-
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
To gain access to the Oracle Database Appliance Version 1 power distribution board and the
disk midplane board you must remove the middle section of the system's top cover.
109.
Appendix A • Servicing the Oracle Database Appliance Version 1
Remove the Server Node Top Cover
115
