Filter; Favorites; Connected Outputs - Extron electronics MediaPort 200 User Manual

Filter

Favorites

Connected Outputs

Panel

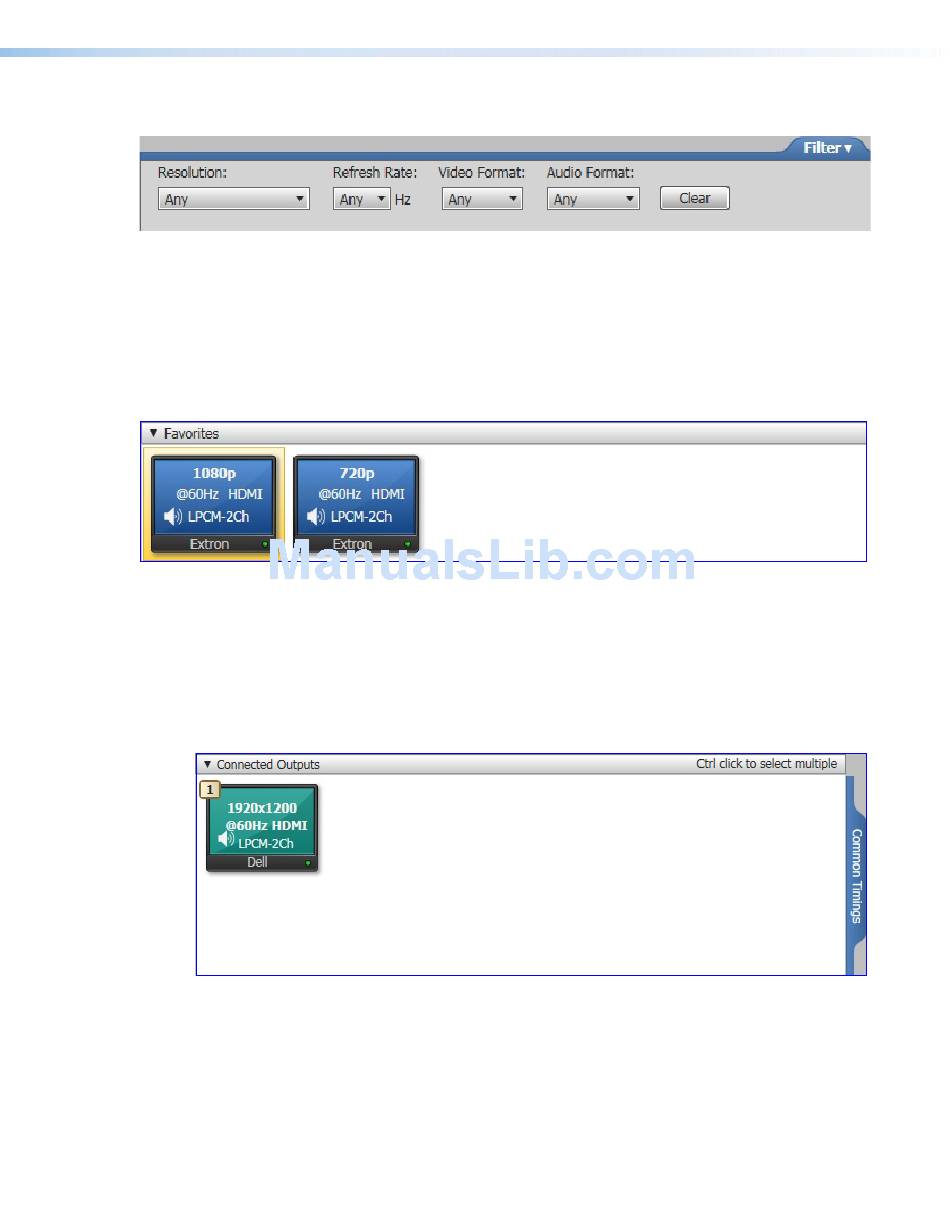

Figure 45. Filter Panel
The panel is a search tool that allows available EDID settings to be filtered according
Filter
to following parameters:
• Resolution
• Refresh Rate
Figure 46. Favorites Panel
The panel contains a list of favorite EDID for quick selection without having to
Favorites
search through all available EDID. EDID can be clicked and dragged from the
panel into the
Available EDID
favorite from the Favorites panel, right click the EDID being removed, and select
.
Remove from Favorites
Figure 47. Connected Outputs Panel
The panel displays the EDID of the sink device that is connected to the
Connected Outputs
HDMI Loop output.
• Video Format
• Audio Format
panel to be added as a favorite. To remove a
Favorites
MediaPort 200 • Product Configuration Software (PCS) 44
