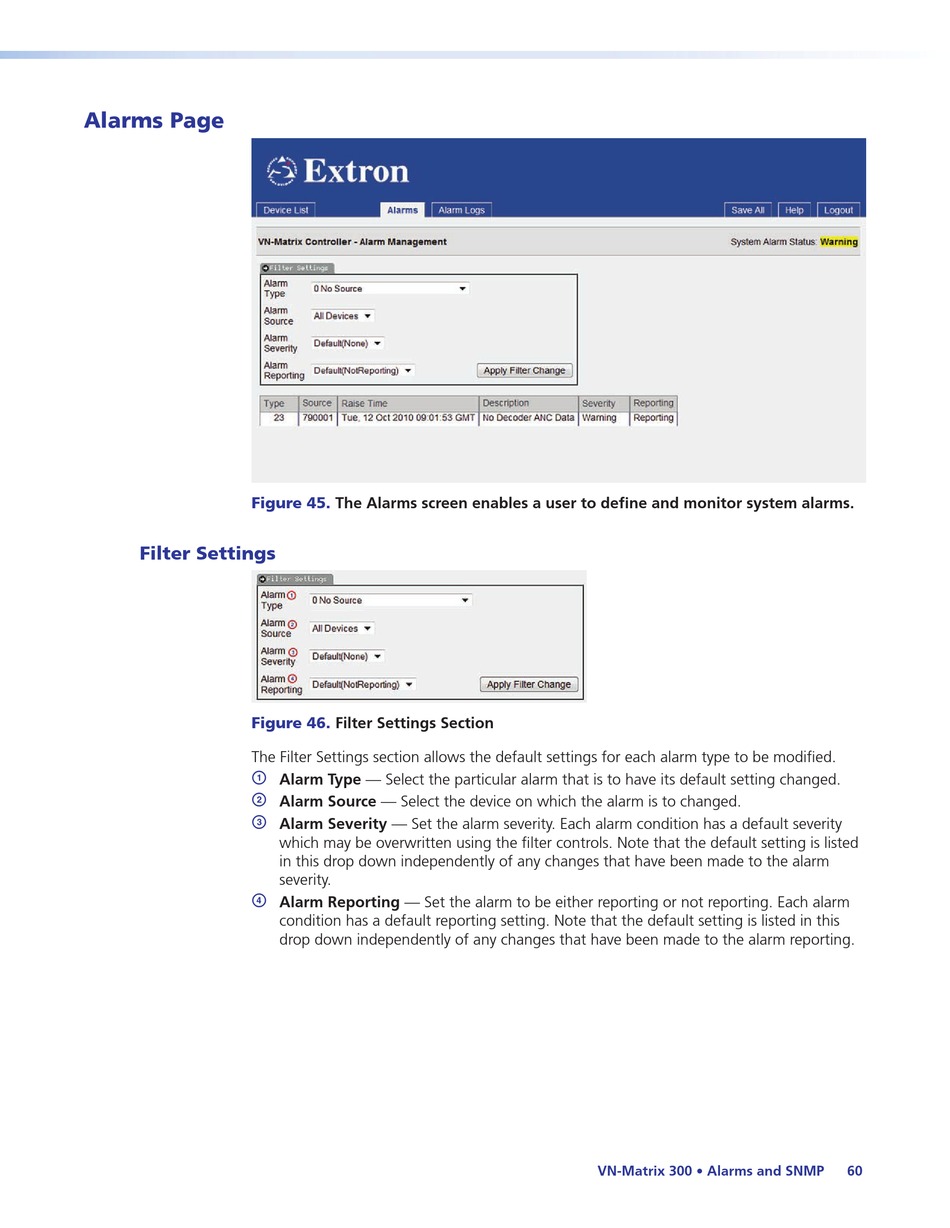

Alarms Page

Figure 45.

Filter Settings

Figure 46.
The Filter Settings section allows the default settings for each alarm type to be modified.
a
b
c
d
The Alarms screen enables a user to define and monitor system alarms.
Filter Settings Section
Alarm Type — Select the particular alarm that is to have its default setting changed.
Alarm Source — Select the device on which the alarm is to changed.
Alarm Severity — Set the alarm severity. Each alarm condition has a default severity
which may be overwritten using the filter controls. Note that the default setting is listed
in this drop down independently of any changes that have been made to the alarm
severity.
Alarm Reporting — Set the alarm to be either reporting or not reporting. Each alarm
condition has a default reporting setting. Note that the default setting is listed in this
drop down independently of any changes that have been made to the alarm reporting.
VN-Matrix 300 • Alarms and SNMP 60
