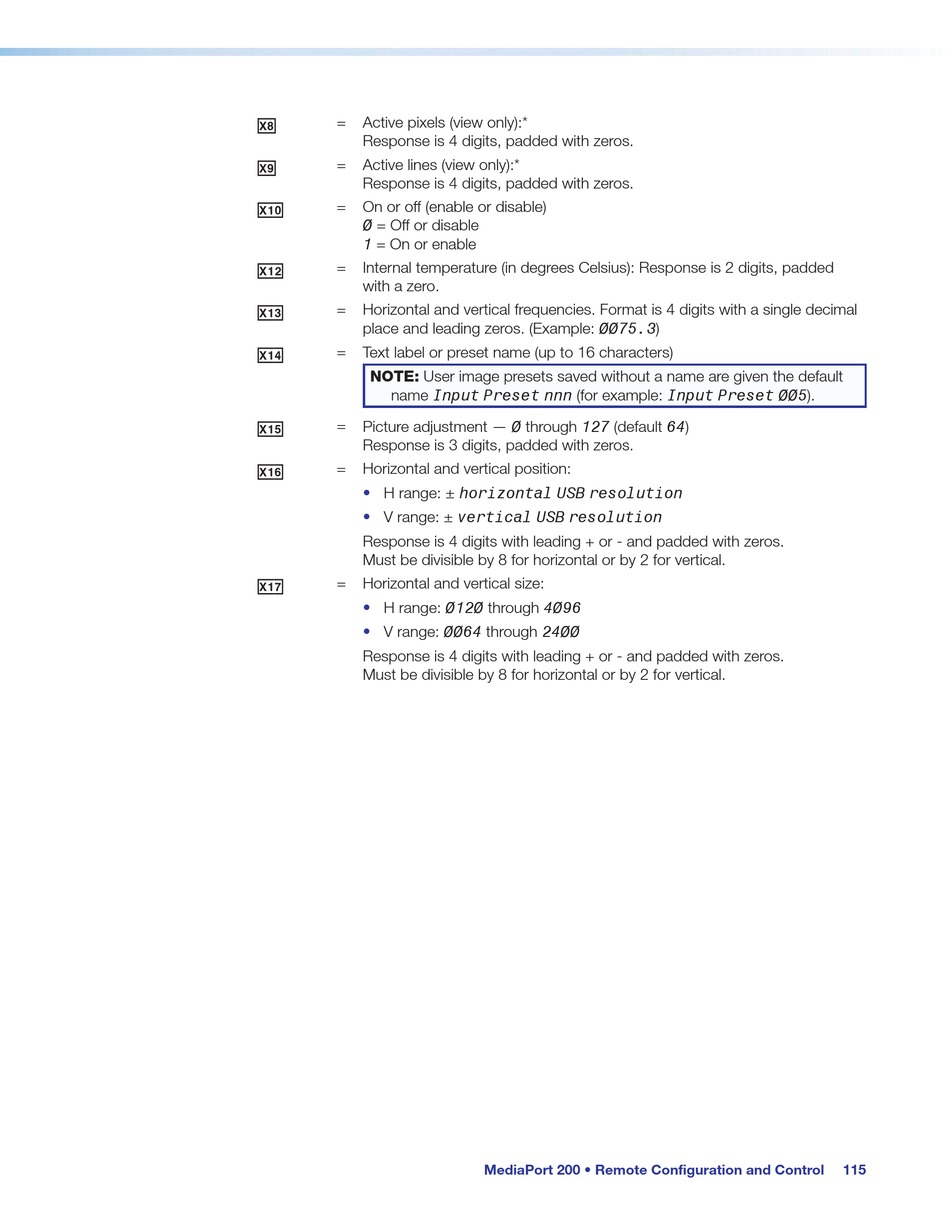

X* = Active pixels (view only):*
Response is 4 digits, padded with zeros.
X( = Active lines (view only):*
Response is 4 digits, padded with zeros.
X1) = On or off (enable or disable)
0 = Off or disable
1 = On or enable
X1@ = Internal temperature (in degrees Celsius): Response is 2 digits, padded
with a zero.
X1# = Horizontal and vertical frequencies. Format is 4 digits with a single decimal
place and leading zeros. (Example: 0075.3)
X1$ =
Text label or preset name (up to 16 characters)
NOTE: User image presets saved without a name are given the default
name Input Preset nnn (for example: Input Preset 005).
=
X1% Picture adjustment — 0 through 127 (default 64)
Response is 3 digits, padded with zeros.
X1^ = Horizontal and vertical position:
• H range: ± horizontal USB resolution
V range: ± vertical USB resolution
•
Response is 4 digits with leading + or - and padded with zeros.
Must be divisible by 8 for horizontal or by 2 for vertical.
X1& = Horizontal and vertical size:
• H range: 0120 through 4096
• V range: 0064 through 2400
Response is 4 digits with leading + or - and padded with zeros.
Must be divisible by 8 for horizontal or by 2 for vertical.
MediaPort 200 • Remote Configuration and Control 115
