Video Codec Input 12
"Far end" audio from a hardware video codec conference line output is connected to
DMP 128.
Video codec line out is connected to DMP 128 Input 12 "Video Codec."
•
• DMP 128 Input 12 is routed Output 3. Output 3 is connected to the MediaPort 200 Mic/
Line Input.
• DMP 128 Input 12 is routed to Virtual Send E.
• From Virtual Return E, the video codec is routed to Outputs 1 and 2, which is
connected to the sound reinforcement system in the room. Virtual Return E is also
routed to Virtual Send H for the AEC reference.

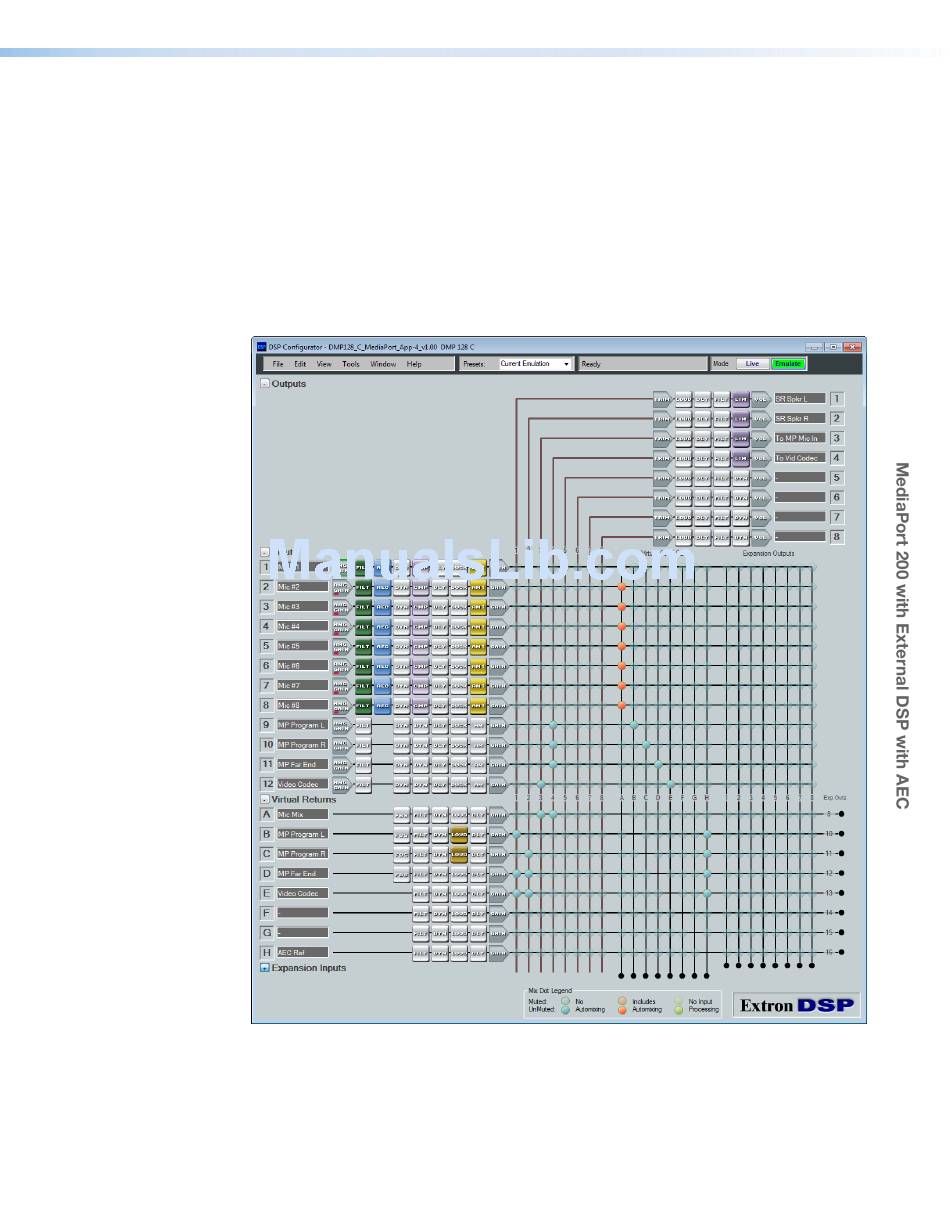

Figure 87. DSP Routing for Application 2
MediaPort 200 • with External DSP with AEC Application Setup 105
