Adjust Numerically

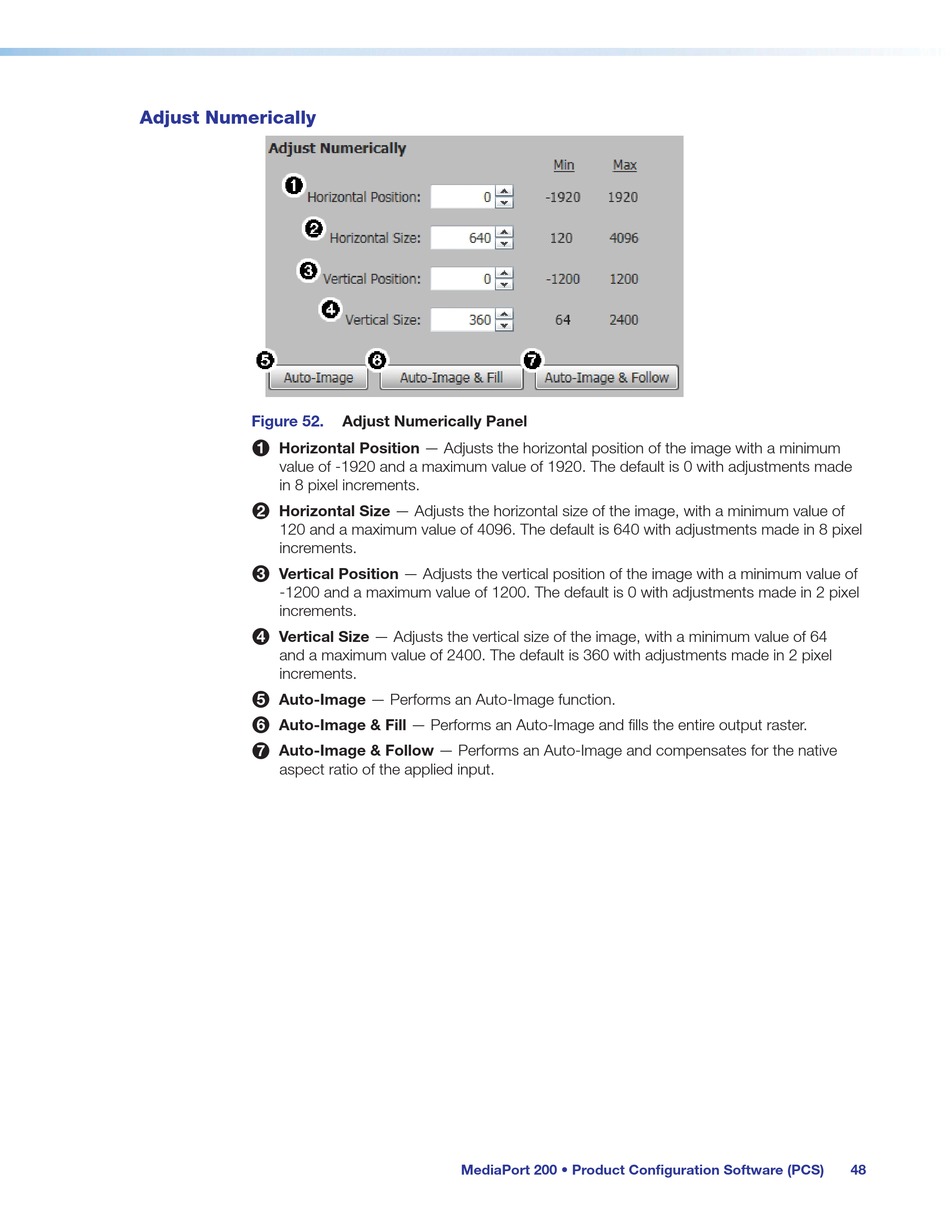

Figure 52.
Horizontal Position — Adjusts the horizontal position of the image with a minimum
1
value of -1920 and a maximum value of 1920. The default is 0 with adjustments made
in 8 pixel increments.
Horizontal Size — Adjusts the horizontal size of the image, with a minimum value of
2
120 and a maximum value of 4096. The default is 640 with adjustments made in 8 pixel
increments.
Vertical Position — Adjusts the vertical position of the image with a minimum value of
3
-1200 and a maximum value of 1200. The default is 0 with adjustments made in 2 pixel
increments.
Vertical Size — Adjusts the vertical size of the image, with a minimum value of 64
4
and a maximum value of 2400. The default is 360 with adjustments made in 2 pixel
increments.
Auto-Image — Performs an Auto-Image function.
5
Auto-Image & Fill — Performs an Auto-Image and fills the entire output raster.
6
Auto-Image & Follow — Performs an Auto-Image and compensates for the native
7
aspect ratio of the applied input.
Adjust Numerically Panel
MediaPort 200 • Product Configuration Software (PCS) 48
