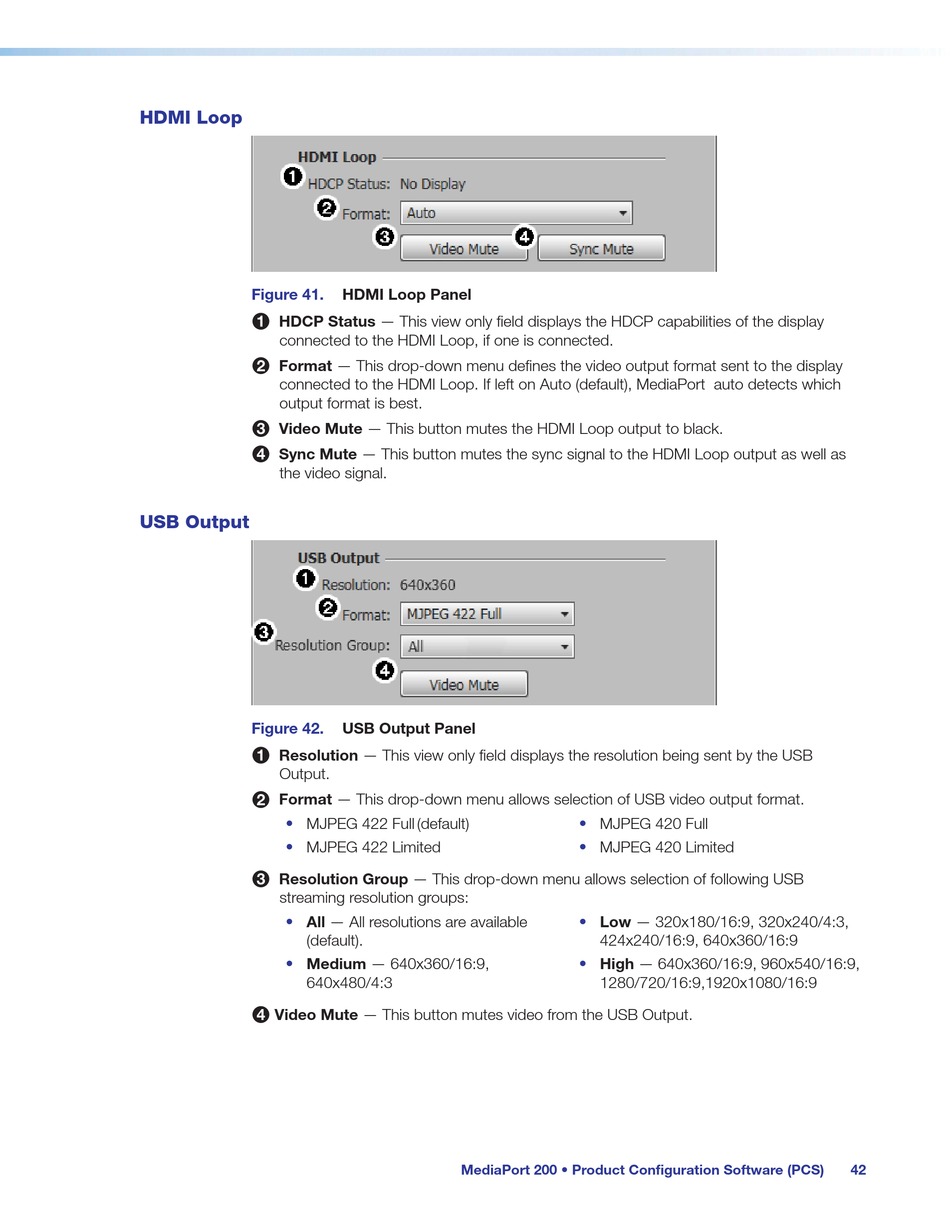

HDMI Loop

Figure 41.
HDCP Status — This view only field displays the HDCP capabilities of the display
1
connected to the HDMI Loop, if one is connected.
Format — This drop-down menu defines the video output format sent to the display
2
connected to the HDMI Loop. If left on Auto (default), MediaPort auto detects which
output format is best.
Video Mute — This button mutes the HDMI Loop output to black.
3
Sync Mute — This button mutes the sync signal to the HDMI Loop output as well as
4
the video signal.

USB Output

Figure 42.
Resolution — This view only field displays the resolution being sent by the USB
1
Output.
Format — This drop-down menu allows selection of USB video output format.
2
• MJPEG 422 Full (default)
• MJPEG 422 Limited
Resolution Group — This drop-down menu allows selection of following USB
3
streaming resolution groups:
All — All resolutions are available
•
(default).
Medium — 640x360/16:9,
•
640x480/4:3
Video Mute — This button mutes video from the USB Output.
4
HDMI Loop Panel
USB Output Panel
MediaPort 200 • Product Configuration Software (PCS)
• MJPEG 420 Full
• MJPEG 420 Limited
Low — 320x180/16:9, 320x240/4:3,
•
424x240/16:9, 640x360/16:9
High — 640x360/16:9, 960x540/16:9,
•
1280/720/16:9,1920x1080/16:9
42
