Test Patterns

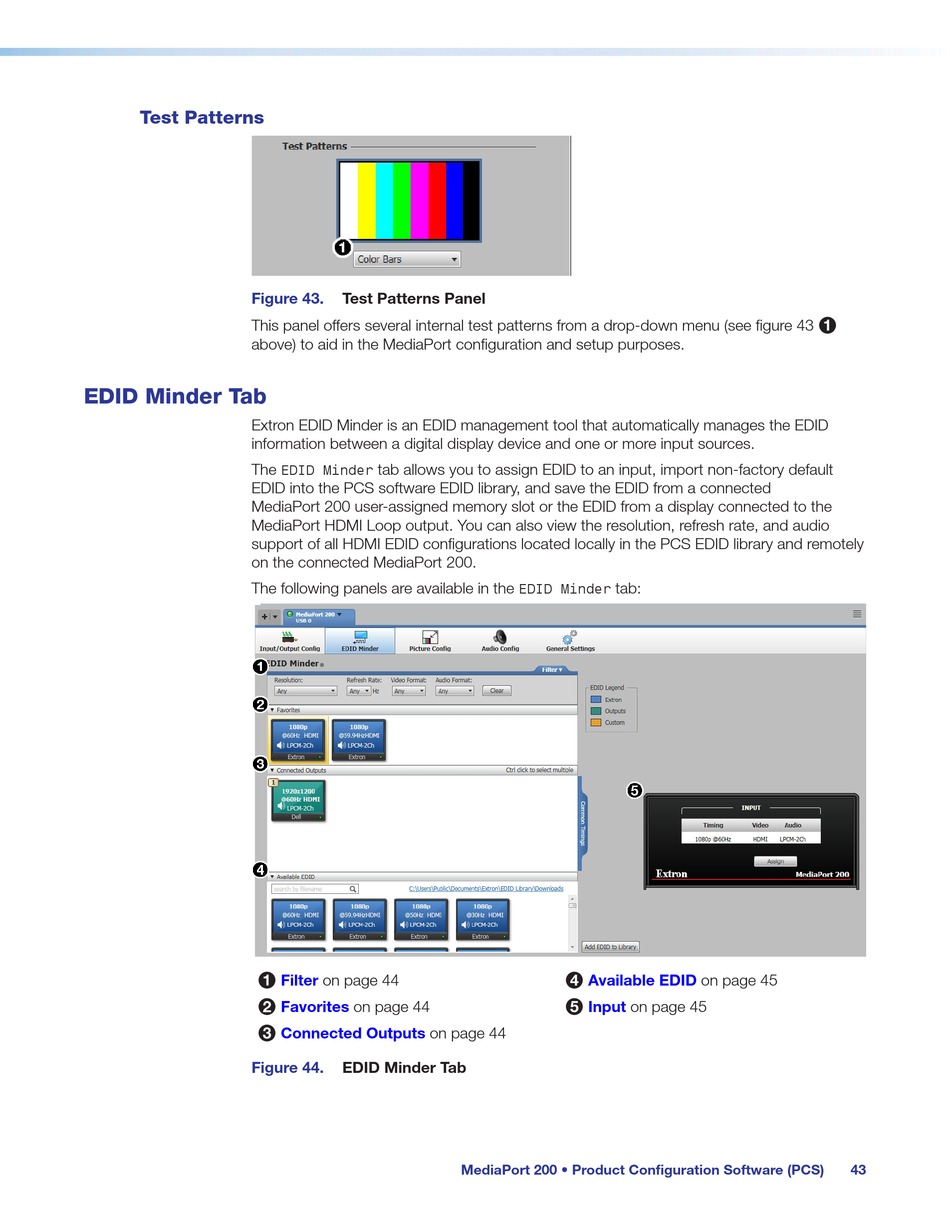

Figure 43.
This panel offers several internal test patterns from a drop-down menu (see figure 43
above) to aid in the MediaPort configuration and setup purposes.

EDID Minder Tab

Extron EDID Minder is an EDID management tool that automatically manages the EDID
information between a digital display device and one or more input sources.
The
EDID into the PCS software EDID library, and save the EDID from a connected
MediaPort 200 user-assigned memory slot or the EDID from a display connected to the
MediaPort HDMI Loop output. You can also view the resolution, refresh rate, and audio
support of all HDMI EDID configurations located locally in the PCS EDID library and remotely
on the connected MediaPort 200.
The following panels are available in the
1
2
3
Figure 44.
Test Patterns Panel
tab allows you to assign EDID to an input, import non-factory default
EDID Minder
Filter on page 44
Favorites on page 44
Connected Outputs
on page 44
EDID Minder Tab
tab:
EDID Minder
Available EDID
4
Input on page 45
5
MediaPort 200 • Product Configuration Software (PCS)
1
on page 45
43
