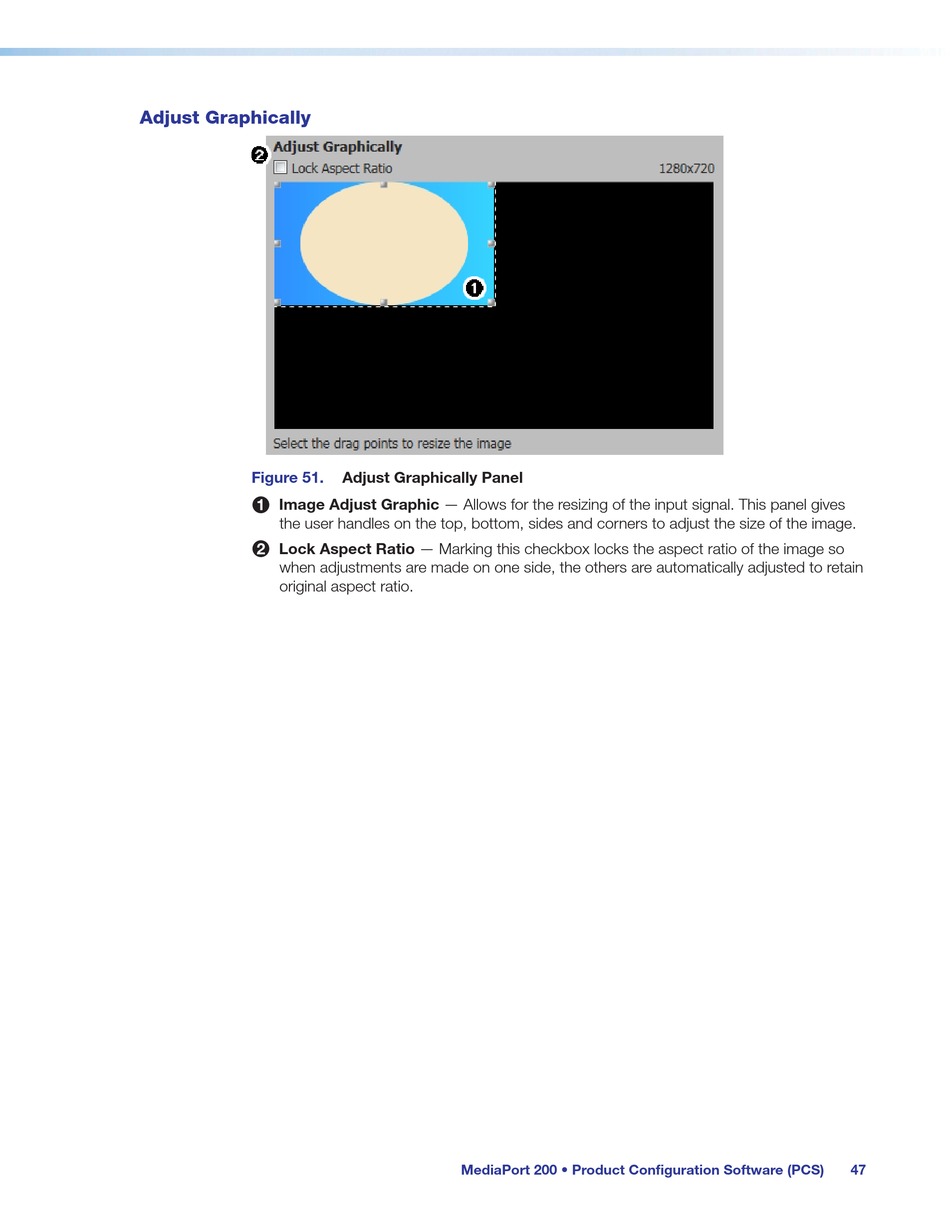

Adjust Graphically
Figure 51.
Image Adjust Graphic — Allows for the resizing of the input signal. This panel gives
1
the user handles on the top, bottom, sides and corners to adjust the size of the image.
Lock Aspect Ratio — Marking this checkbox locks the aspect ratio of the image so
2
when adjustments are made on one side, the others are automatically adjusted to retain
original aspect ratio.
Adjust Graphically Panel
MediaPort 200 • Product Configuration Software (PCS)
47
