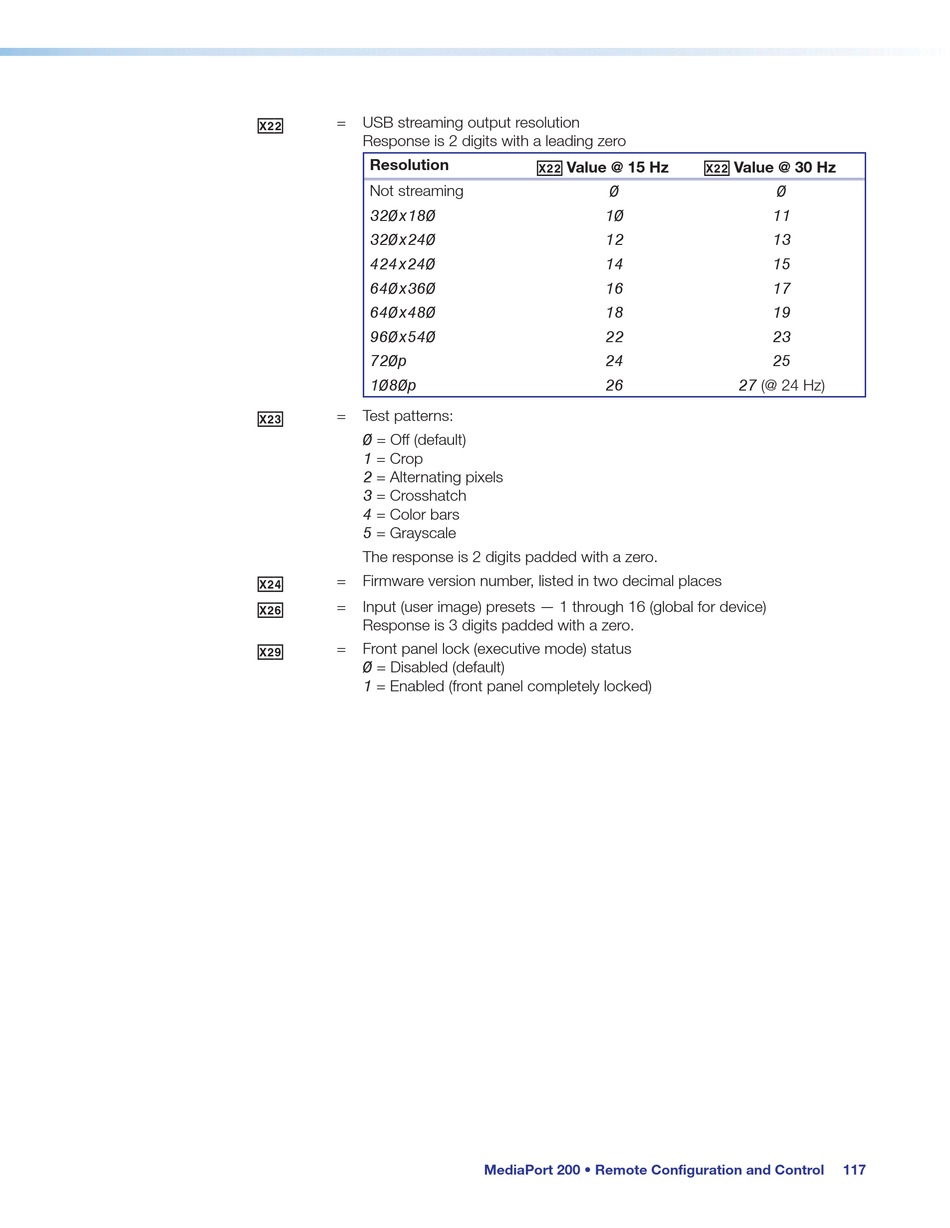

X2@ = USB streaming output resolution
Response is 2 digits with a leading zero
Resolution
Not streaming
320x180
320x240
424x240
640x360
640x480
960x540
720p
1080p
X2# = Test patterns:
0 = Off (default)
1 = Crop
2 = Alternating pixels
3 = Crosshatch
4 = Color bars
5 = Grayscale
The response is 2 digits padded with a zero.
X2$ = Firmware version number, listed in two decimal places
X2^ = Input (user image) presets — 1 through 16 (global for device)
Response is 3 digits padded with a zero.
X2( = Front panel lock (executive mode) status
0 = Disabled (default)
1 = Enabled (front panel completely locked)
X2@
Value @ 15 Hz
0
10
12
14
16
18
22
24
26
MediaPort 200 • Remote Configuration and Control
X2@
Value @ 30 Hz
0
11
13
15
17
19
23
25
27 (@ 24 Hz)
