7.16
S tatus Display
4 9 B
The states of the motors of each axis can be monitored.

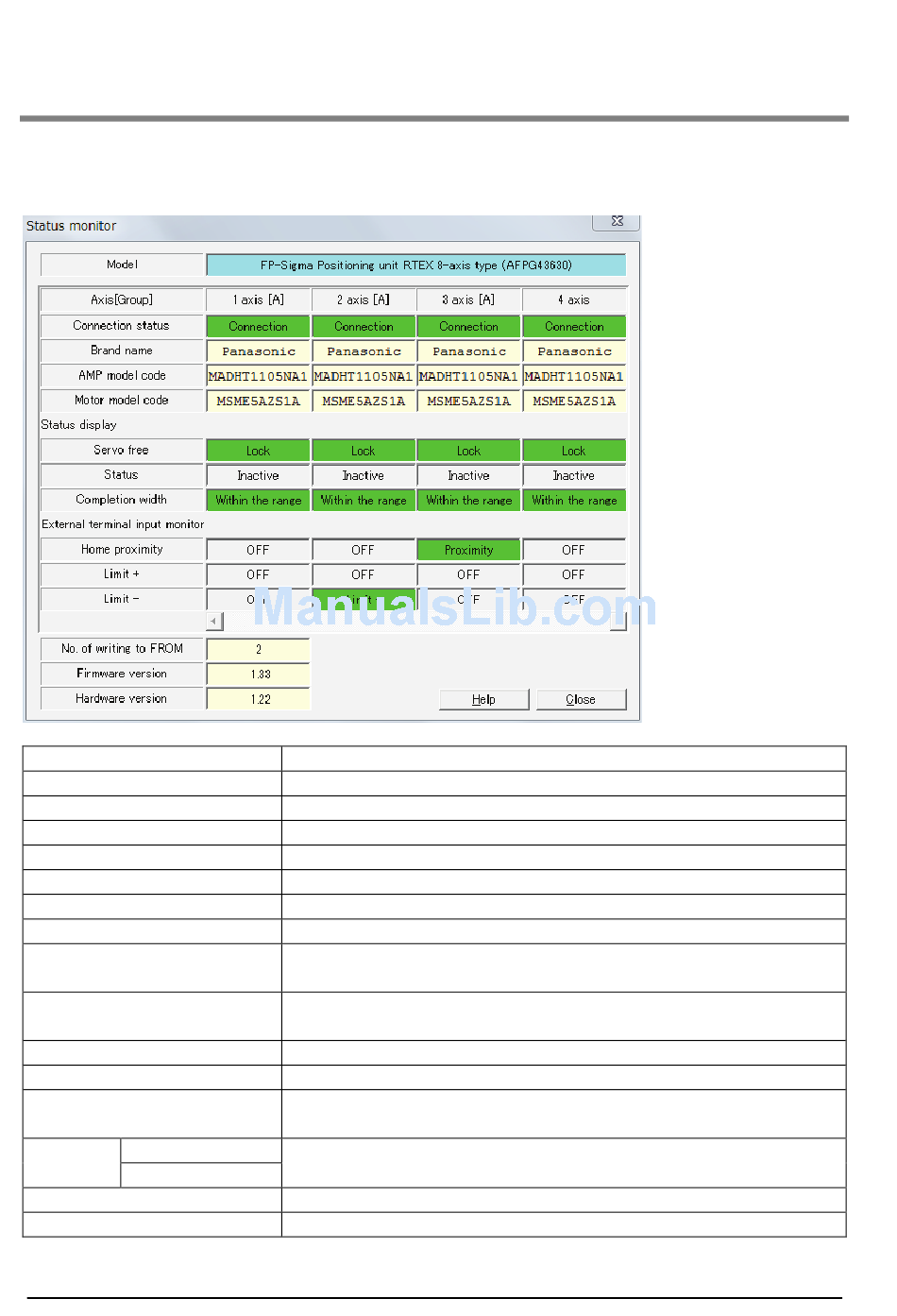

Make the connection between a PC and PLC. Then, select [Online] → [Status Display] in the
menu bar. The following dialog is shown.
Model
Axis [Group]
Connection status
Brand name
AMP model code
Motor model code
servo free
Status
Completion width
Home proximity
Limit +
Limit -
Number of writing to FROM
Firmware
Version
Hardware
Help
Close
7-38
The model name of positioning unit RTEX
The axis number and group names to be monitored.
Monitor the connection statuses of each axis
The individual brand names for each axis.
Obtain and display the model code of AMP.
Obtain and display the model code of a motor.
The state of the servo of the AMP whether it is locked or free.
The operating states of axes
The state of the deviation counter whether it is in the range of the
imposition or out of the range of the imposition.
The state of the AMP input contact whether the home return is input
or not.
The limit + input state of the AMP input setting.
The limit- input state of the AMP input setting.
The number of writing the setting data to FROM in the positioning
unit RTEX.
The version of the positioning unit RTEX
Indicate the help regarding this function.
Close this dialog.
