5.1 P rocedures For System Establishment
3 0 B
5.1.1 Procedure 1: Wiring

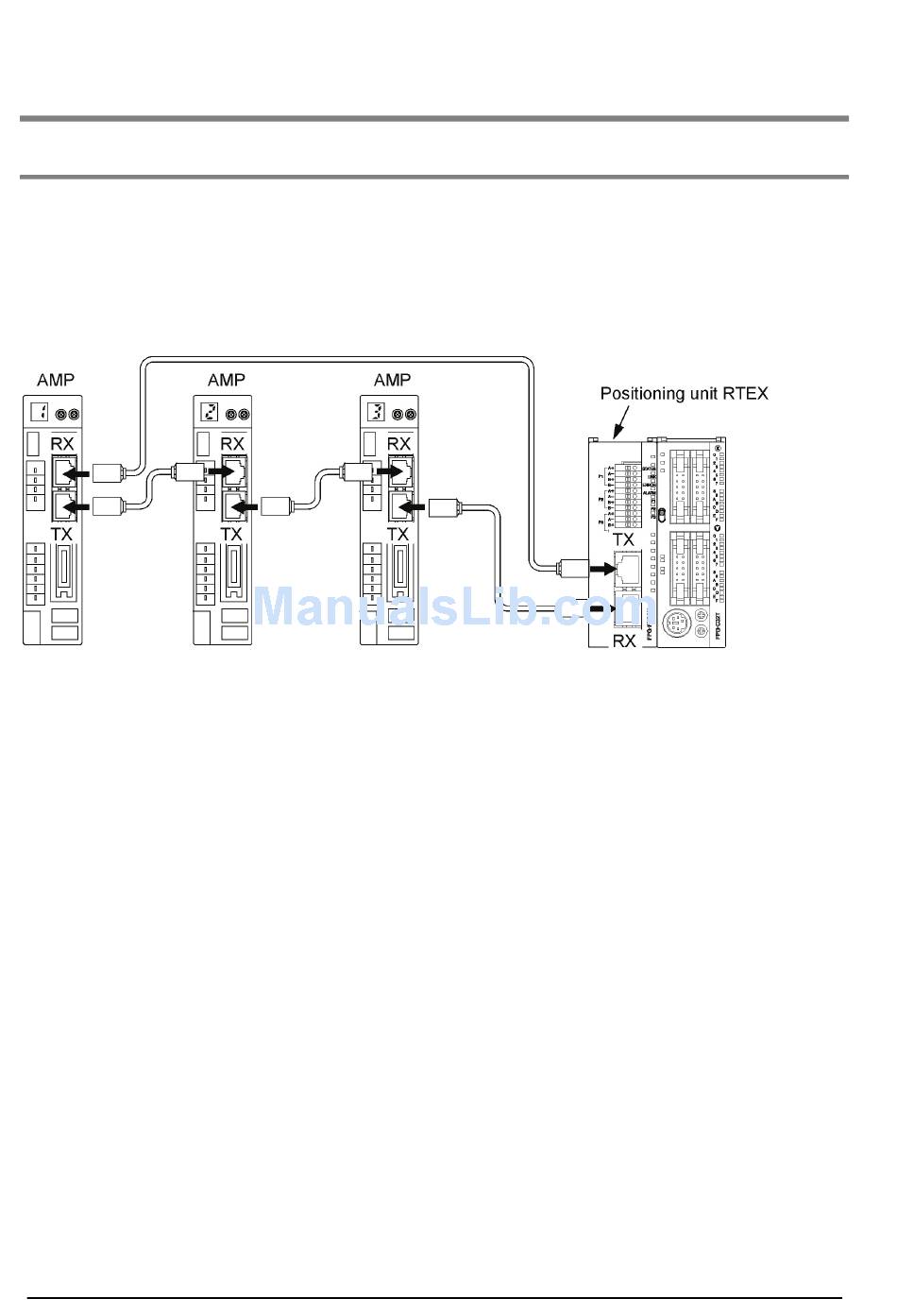

Use the LAN cable with the Ethernet category 5e shielded type for the wiring of the network. Connect the
positioning unit RTEX with each AMP in a loop. Connect the "TX" of the positioning unit RTEX to the
"RX" of an AMP, and then connect the "TX" of the AMP to the "RX" of the next AMP. At the end, connect
the "TX" of the last AMP to the "RX" of the positioning unit RTEX.
Note) Turn off the power supply of the system before wiring cables.
5-2
