Parameter name
J point control -
Acceleration/Deceleration pattern
J point control - Acceleration time
(ms)
J point control - Deceleration time
(ms)
J point control - Target speed
Pulser operation setting code
Pulser input method
Pulser operation ratio numerator
Pulser operation ratio denominator
Pulser operation target speed
OK
Cancel
Copy axis
Initialize
Help
3. Click [OK] to determine the settings.
Click [OK] to determine the edited settings.
Click [Cancel] to cancel the edited settings.
7-22
Description
Acceleration pattern in the J point (speed point) operation.
Acceleration time in the J point (acceleration point) operation.
Deceleration time in the J point (acceleration point) operation.
Target speed in the J point (acceleration point) operation.
The pulser input (1 to 3) in the pulser operation.
Input method in the pulser operation
No. of movement pulse is calculated by multiplying the No. of
input pulse from the pulser by the ratio below.
(Numerator of ratio of pulser operation)/(Denominator of ratio of
pulser operation)
Maximum operation speed of pulser operation
Update the parameter settings with the specified contents.
Close this dialog without updating the parameter settings.

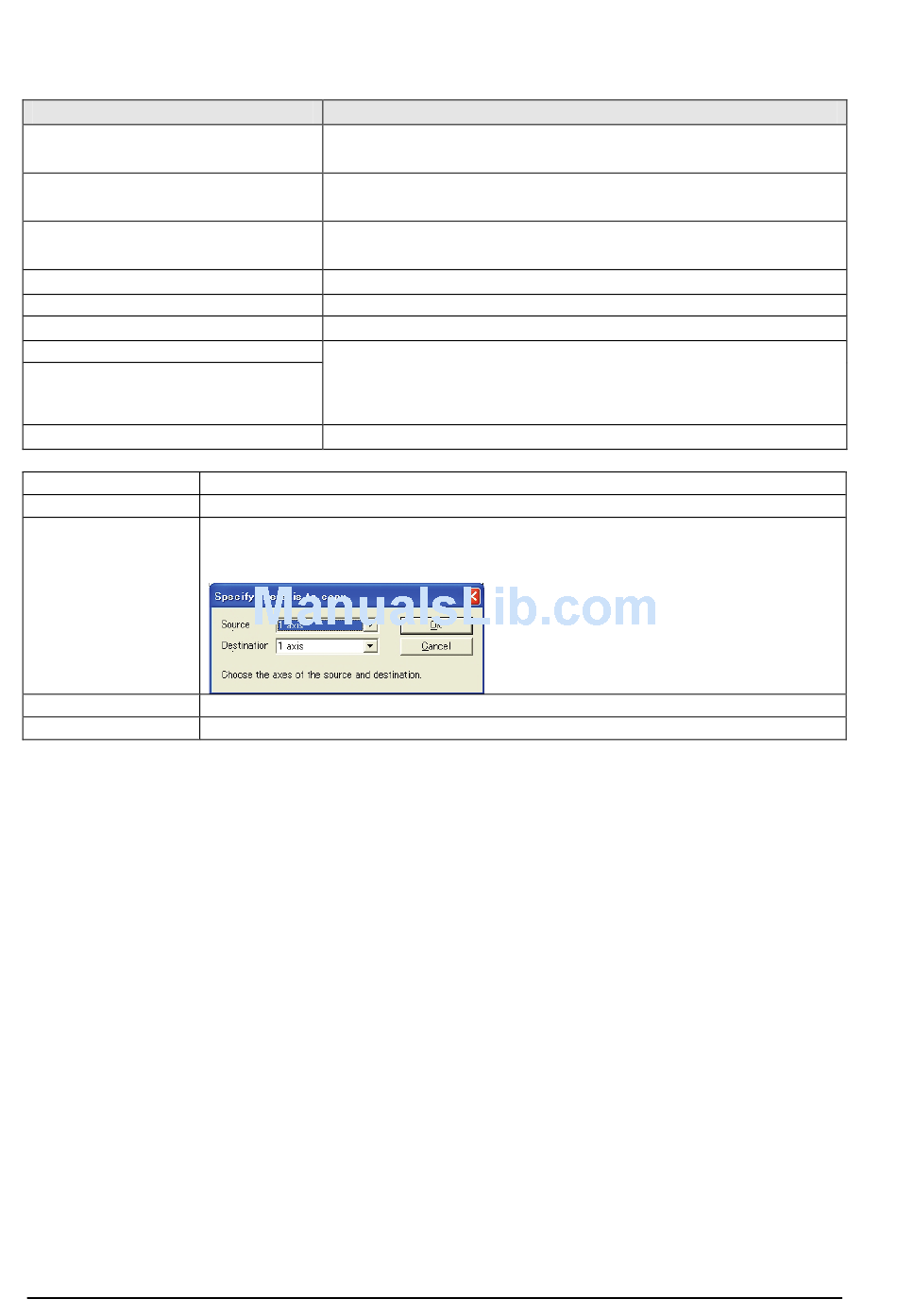

Specify the axes of the source and destination to copy the parameter setting
between the axes. The following dialog is shown by clicking the [Copy axis]
button. Specify the axes and click [OK].
Initialize the parameter settings.
Indicate the help for this function.
