19.2 Sample Programs

There are 3 patterns for setting positioning data.
1. When the positioning data has been already set in the standard area with the Configurator PM.
2. When setting the positioning data in the extended area using the ladder program.
3. When setting the positioning data in the standard area using the ladder program.

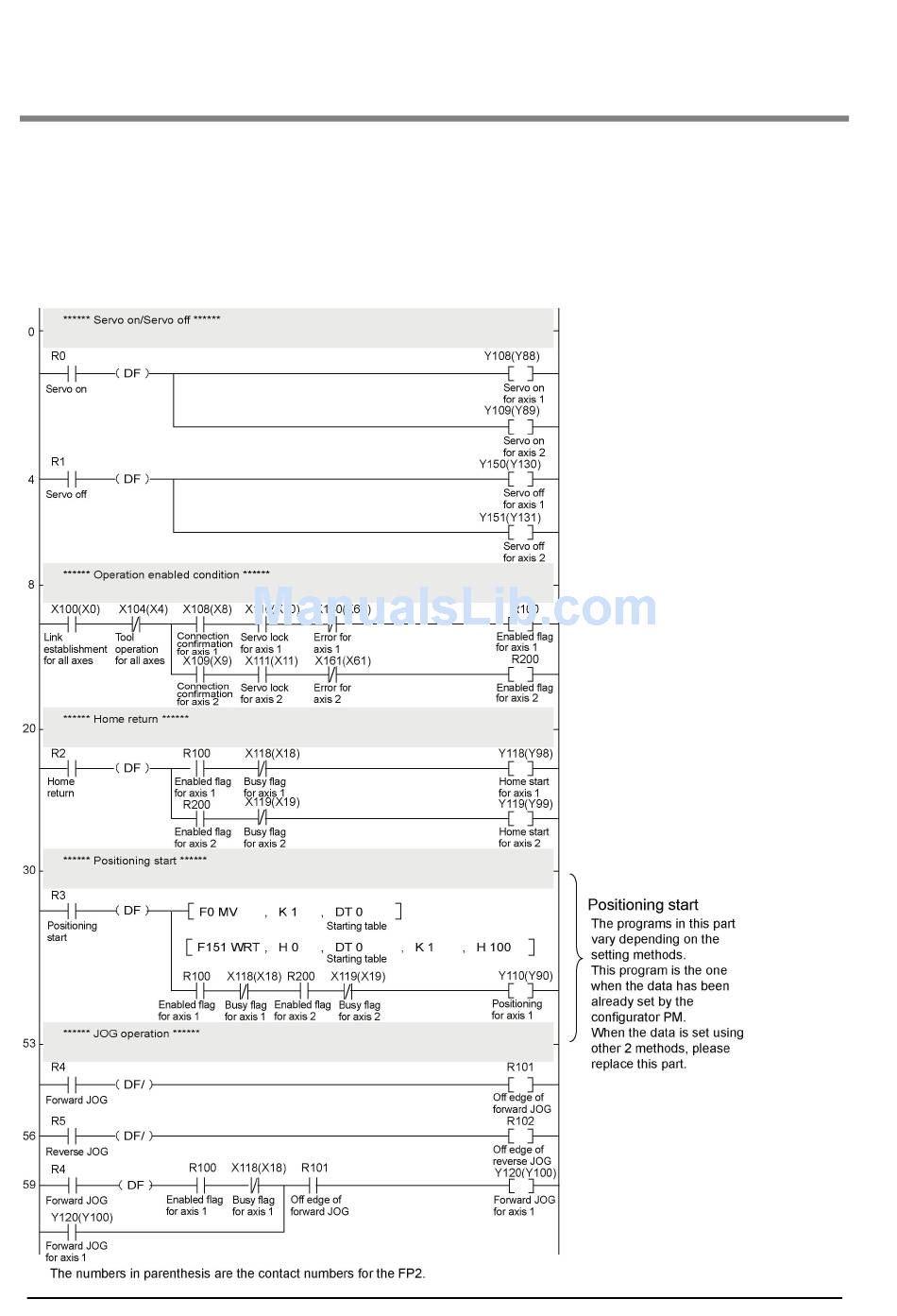

Sample program
The positioning start is the setting that has been already set in the standard area by the Configurator
PM.
19-4
