7.7.2
C ommunication Settings
1 0 2 B
Set the condition to communicate with the PLC that the positioning unit RTEX has been installed.

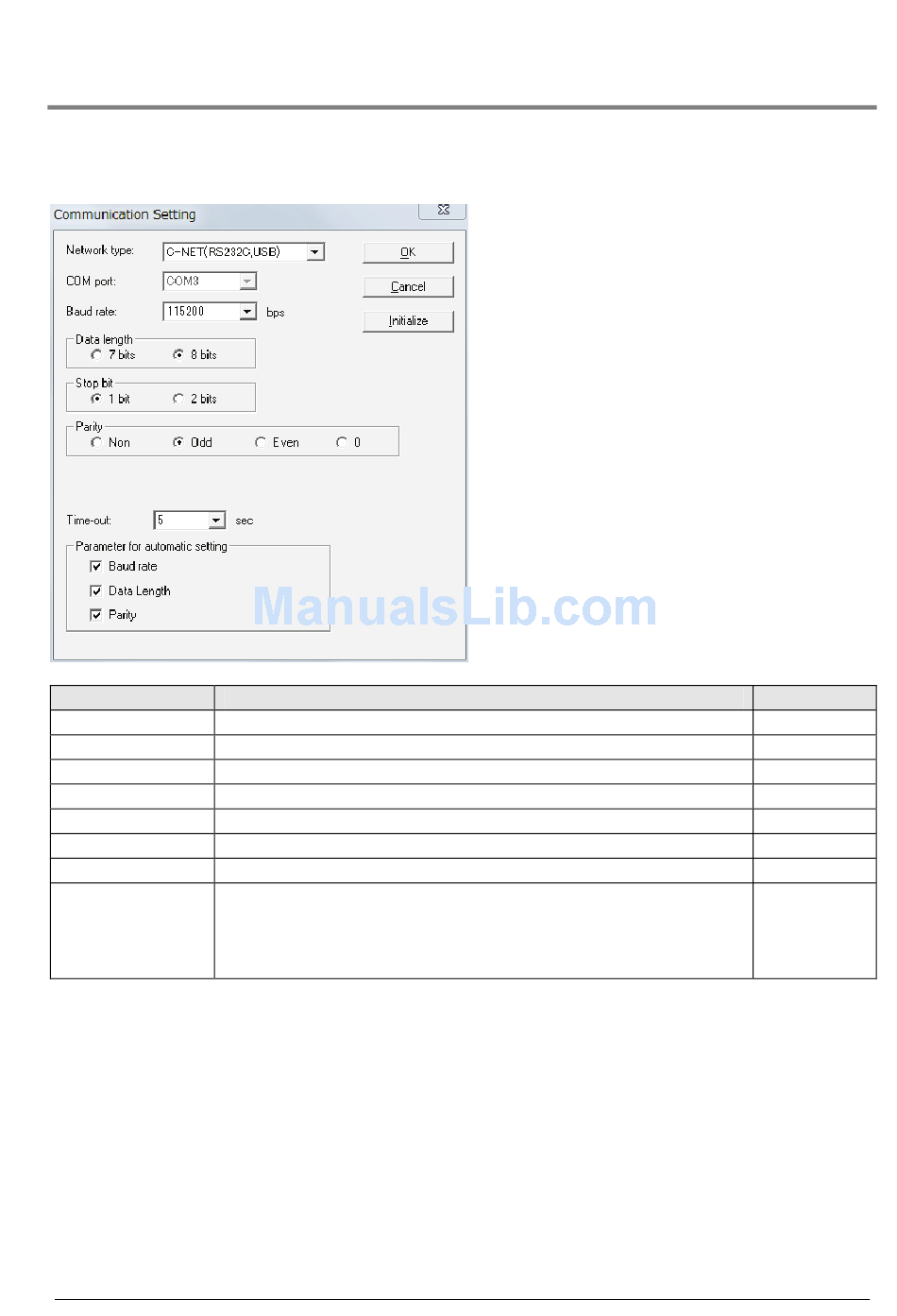

Select [Option] → [Communication settings] in the menu bar. The following dialog is shown.
Name
Network type
Port number
Baud rate
Data length
Stop bit
Parity
Timeout
Automatic
communication
settings
Setting value
Select C-NET (RS232C, USB).
Select a COM port to be used.
1200 to 115200 bps
7 bits, 8 bits: Set either 7 bits or 8 bits to send 1 byte.
1 bit, 2 bits
None, Odd, Even
Set the communication timeout time with PLC (0 to 60 seconds).
When the communication condition is different from the PLC,
check the items to search the matched conditions.
If all items are not checked, the communication condition is not
automatically searched.
Default
-
COM1
9600
8 bits
1 bit
Odd
5 seconds
All items are
checked.
