C onnection to Positioning Unit
4 0 B
7.7.1 Selecting Slot Number
When accessing the positioning unit RTEX in the Configurator PM, specify the slot number that the
positioning unit RTEX is installed in advance.

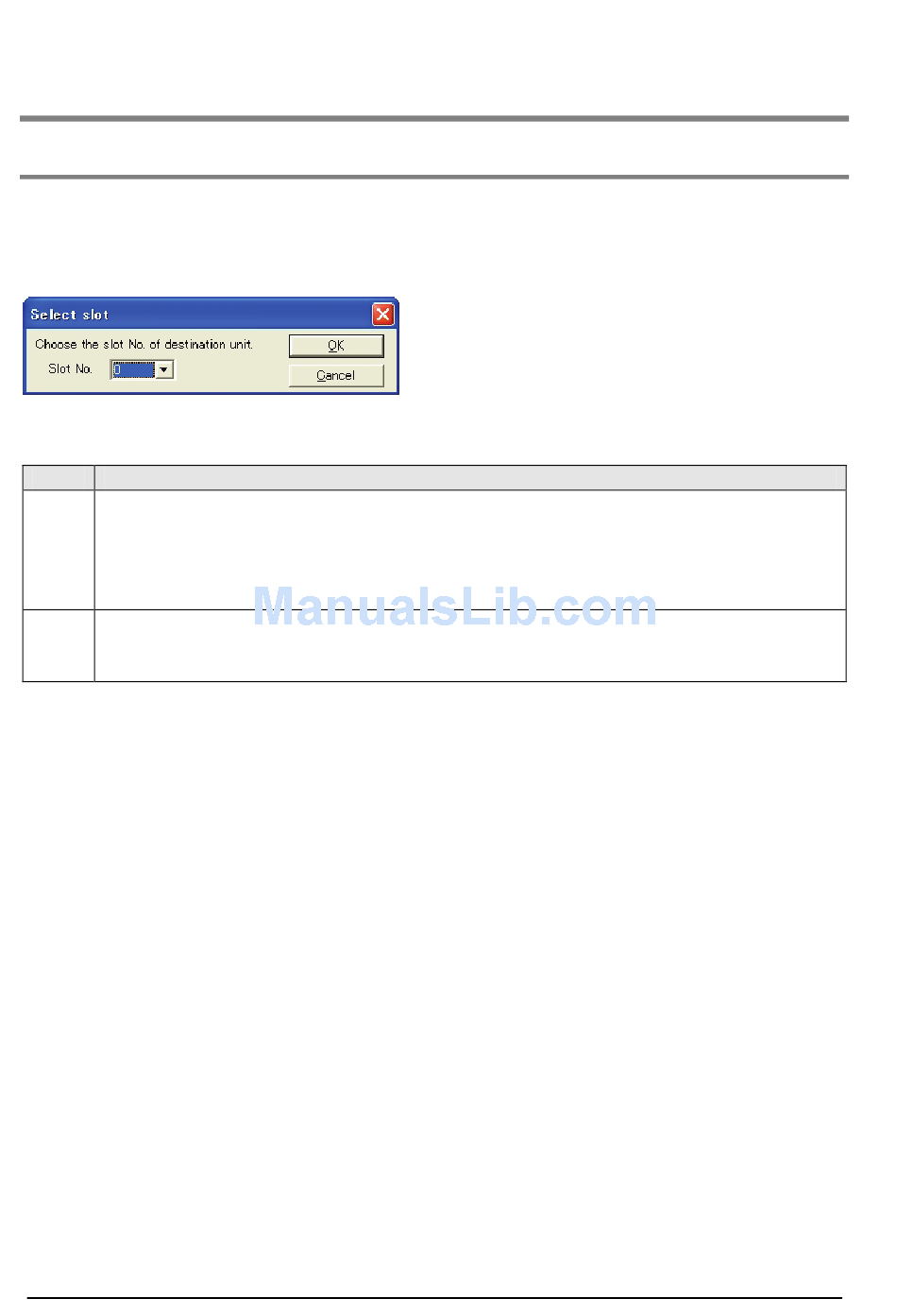

Select [Online] → [Select slot] in the menu bar. The following dialog is shown.
The slot numbers defined vary depending on the type of PLCs. See below.
PLC
Slot No.
FPΣ
The positioning unit RTEX is installed on the left side of the CPU unit, and defined as below.
Expansion unit 1 : Slot No. 0
Expansion unit 2 : Slot No. 1
Expansion unit 3 : Slot No. 2
Expansion unit 4 : Slot No. 3
FP2
The positioning unit RTEX is installed on the CPU unit with the motherboard. The slot
number for the unit installed on the right side of the CPU unit is the slot number 0, and then
the slot number varies depending on the installed position of the motherboard.
