Adding Assets To A Group; Configure Sub-Group For Infiniband Switches - Oracle Exalogic Elastic Cloud Owner's Manual

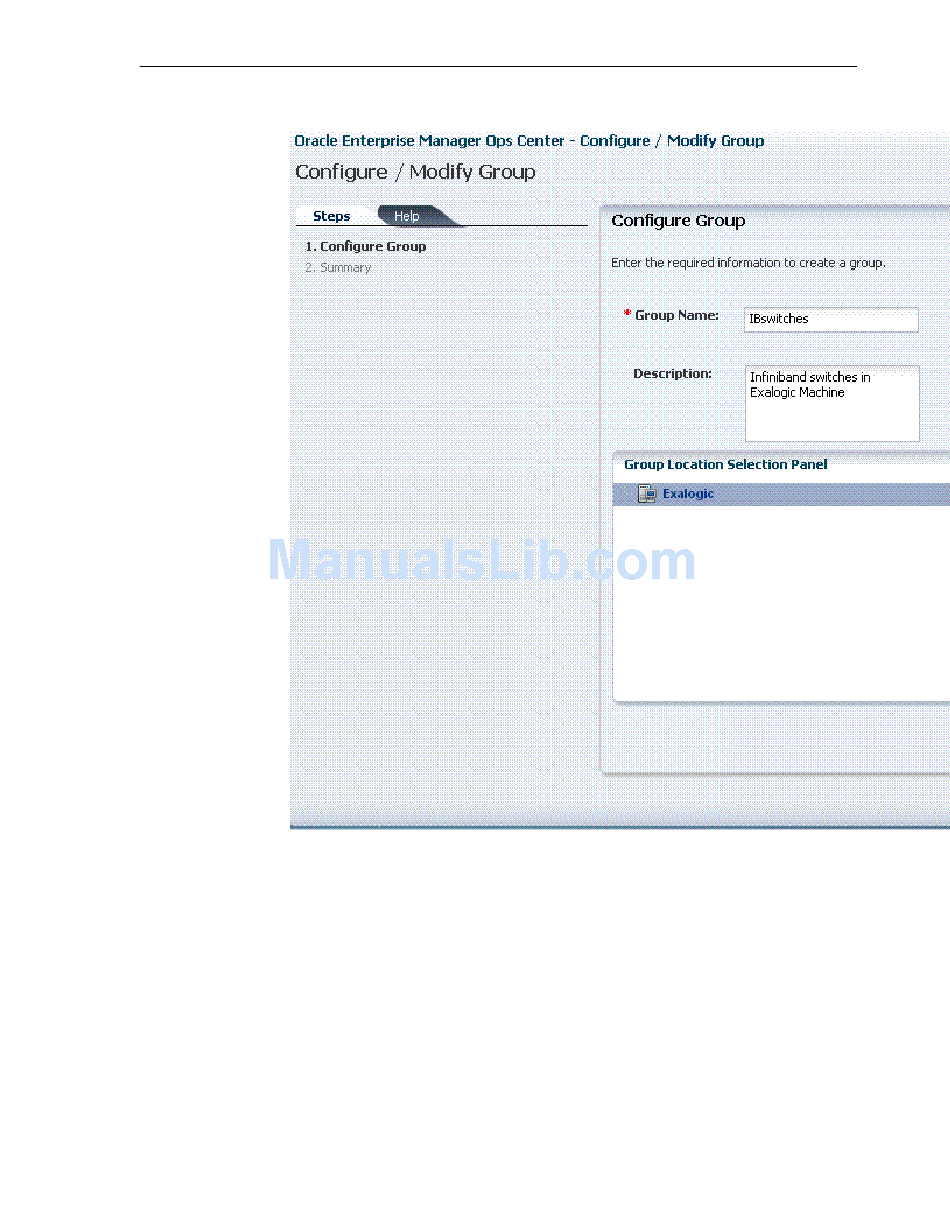

Figure 17-8
After entering the sub-group information and selecting the group location, click
3.
Next. The Summary screen is displayed.
On the Summary screen, click Finish. The IBswitches sub-group is created
4.
under the Exalogic group.

17.9.6 Adding Assets to a Group

After creating the top-level Exalogic group and its sub-groups, you must add
Exalogic-specific managed assets to a group.
To add an Exalogic-specific managed asset to a group, do the following:
On the All Assets page, click the Managed Assets tab. Exalogic-specific managed
1.
assets are listed under All Managed Assets.

Configure Sub-Group for InfiniBand Switches

Monitoring the Exalogic Machine Using Oracle Enterprise Manager Ops Center 17-15
Grouping Exalogic Machine Hardware Assets
