7.7.4 Configure ILOM IP Addresses Manually

If ILOM IP addresses get misconfigured due to Oracle Exalogic Configuration
Utility failures, you can configure ILOM IP addresses manually. Under normal
circumstances, you do not need to configure ILOM IP addresses manually.
To configure IP addresses manually, complete the following steps:
Obtain a free static IP address from the network to which the Cisco 4948 switch is
1.
connected.
Configure the IP address and sideband management by using a serial port
2.
connection as follows:
a.
b.
c.
d.
e.
7-8 Oracle Exalogic Elastic Cloud Machine Owner's Guide
Establish a serial connection to the SP of a compute node by inserting a serial
cable into the SER MGT port on the rear of the compute node.
In the terminal window, configure the following settings:
8N1: Eight data bit, no parity, one stop bit
9600 Baud
Disable hardware control
Disable software control
At the login prompt, log in as the root user.
From your present working directory, use the cd command to move to
the /SP/network directory, as shown in

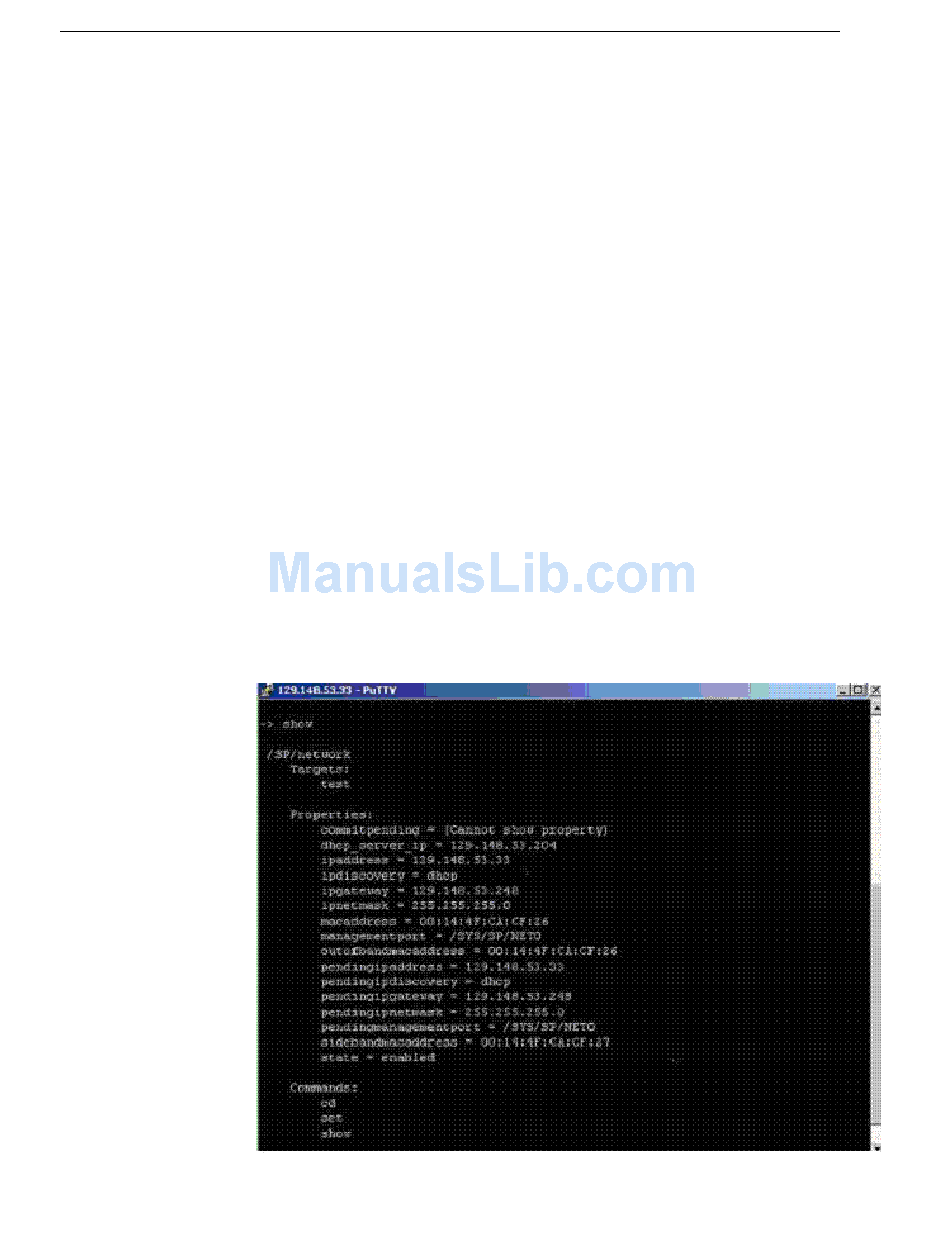

Figure 7-2

Configuring ILOM IP Using Serial Port Connection

Run the following commands at the command prompt:
Figure 7-2.
