Configuration Overview
name is used to access the administration console. The blue icon indicates that an
interface is not active on the storage head. To view or edit the network settings for

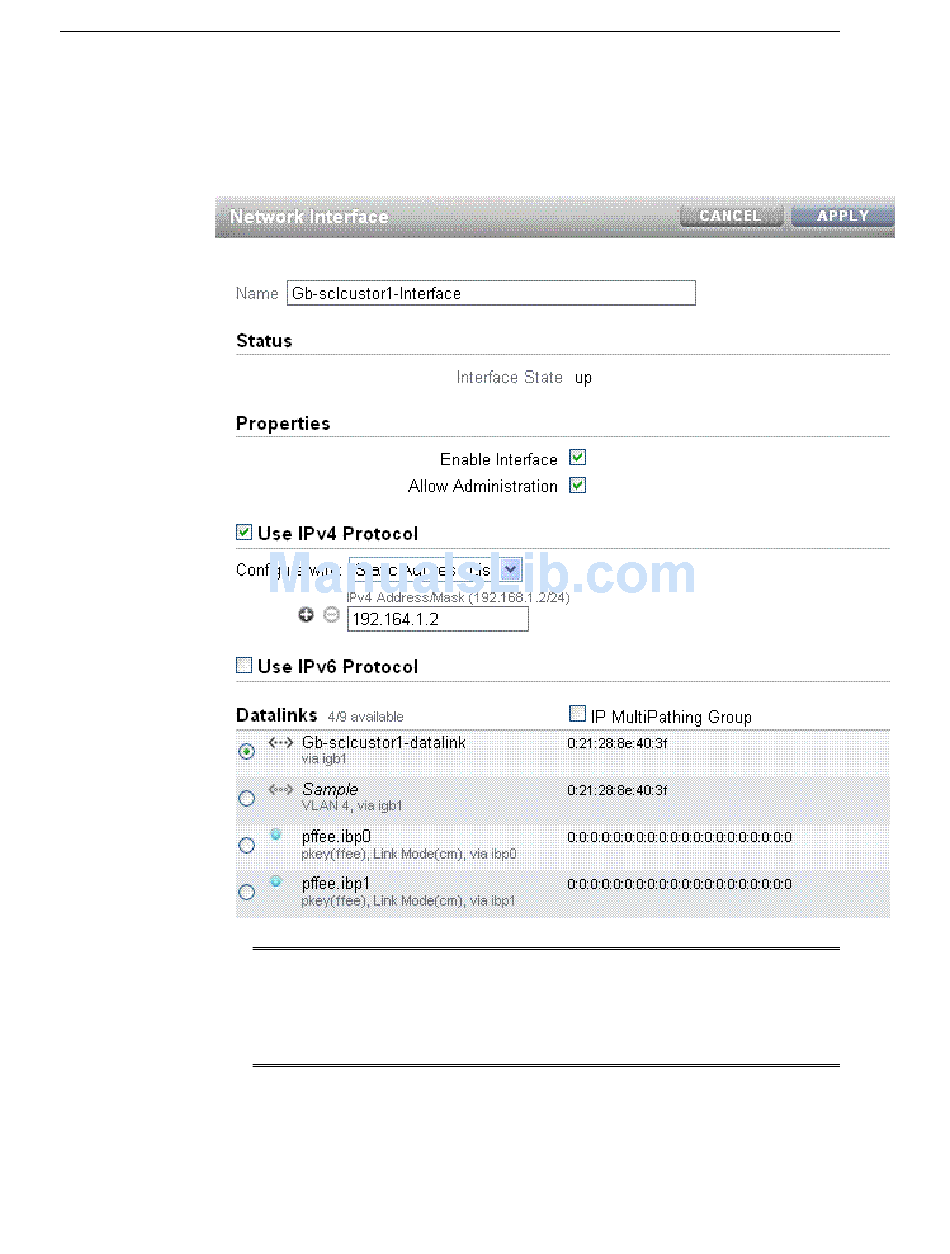

an interface, click the pencil icon. The interface settings are displayed in a screen, as
in Figure
Figure 8-3

8.4.3 Cluster Network Configuration

The cluster is set up in an active-passive configuration. All resources, data interface
links, and storage pool are owned by the active storage head. When the active node
8-6 Oracle Exalogic Elastic Cloud Machine Owner's Guide
8-3.

Network Interface Settings

Note:
The interface names and IP addresses shown on the screens in this chapter are
examples only. You must verify the interface names in your environment and
use them accordingly.
