Creating A Sub-Group For Exalogic Compute Nodes; Group Summary Screen - Oracle Exalogic Elastic Cloud Owner's Manual

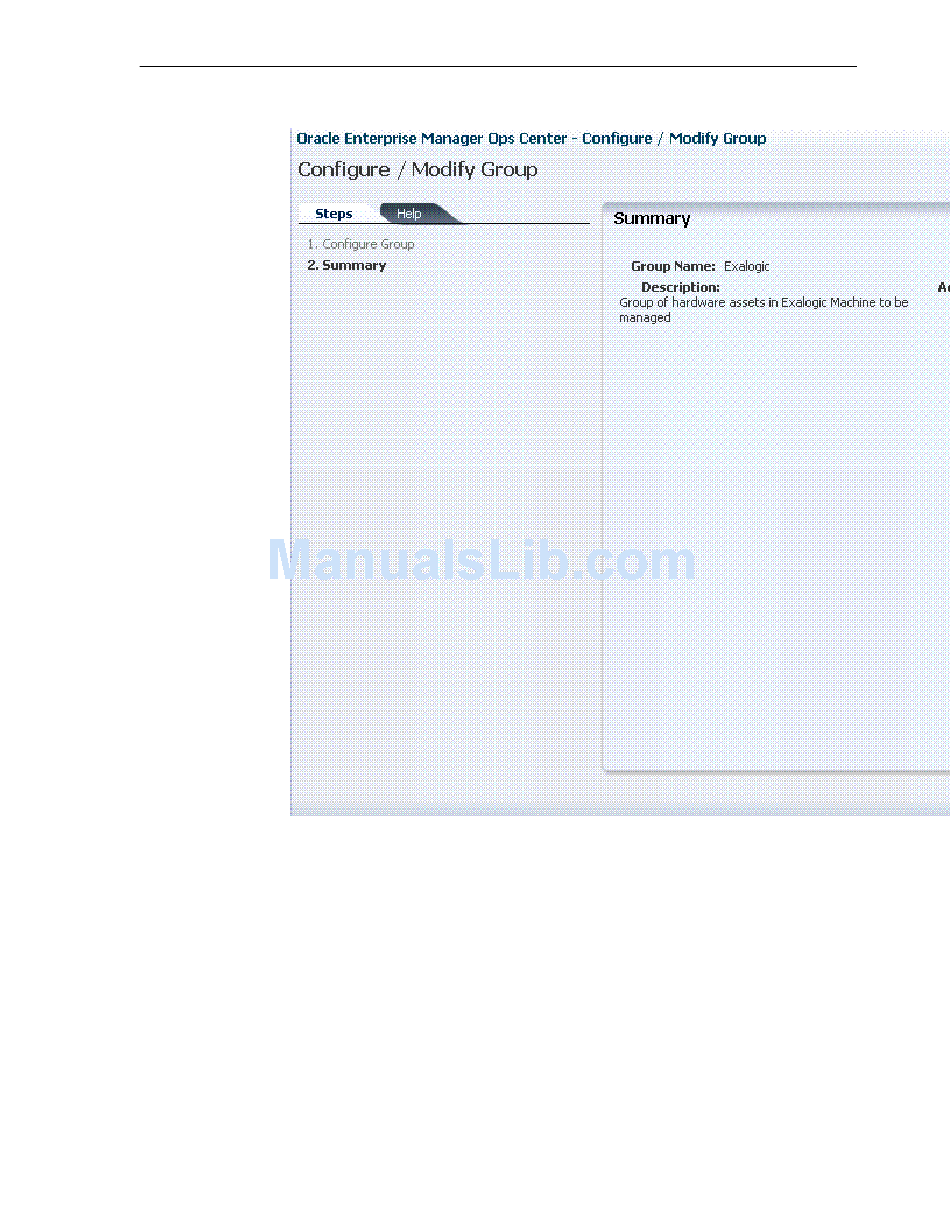

Figure 17-5
On the Summary screen, click Finish. The Exalogic group is created at the top-
4.
level (root).

17.9.3 Creating a Sub-Group for Exalogic Compute Nodes

After creating a top-level group for the Exalogic machine, you can create a sub-group
for Exalogic compute nodes as follows:
On the right navigation pane named Actions, click Create Group under Organize.
1.
The Configure/Modify Group screen is displayed.
In the Configure Group screen, in the Group Name field, enter a name for the
2.
new Exalogic group. For example, enter ComputeNodes. Enter a description in
the Description field. Select the Inside a user-defined Group/Subgroup option as
Location. In the Group Selection Panel, select the Exalogic top-level group that

Group Summary Screen

Monitoring the Exalogic Machine Using Oracle Enterprise Manager Ops Center 17-11
Grouping Exalogic Machine Hardware Assets
