Configuration Overview

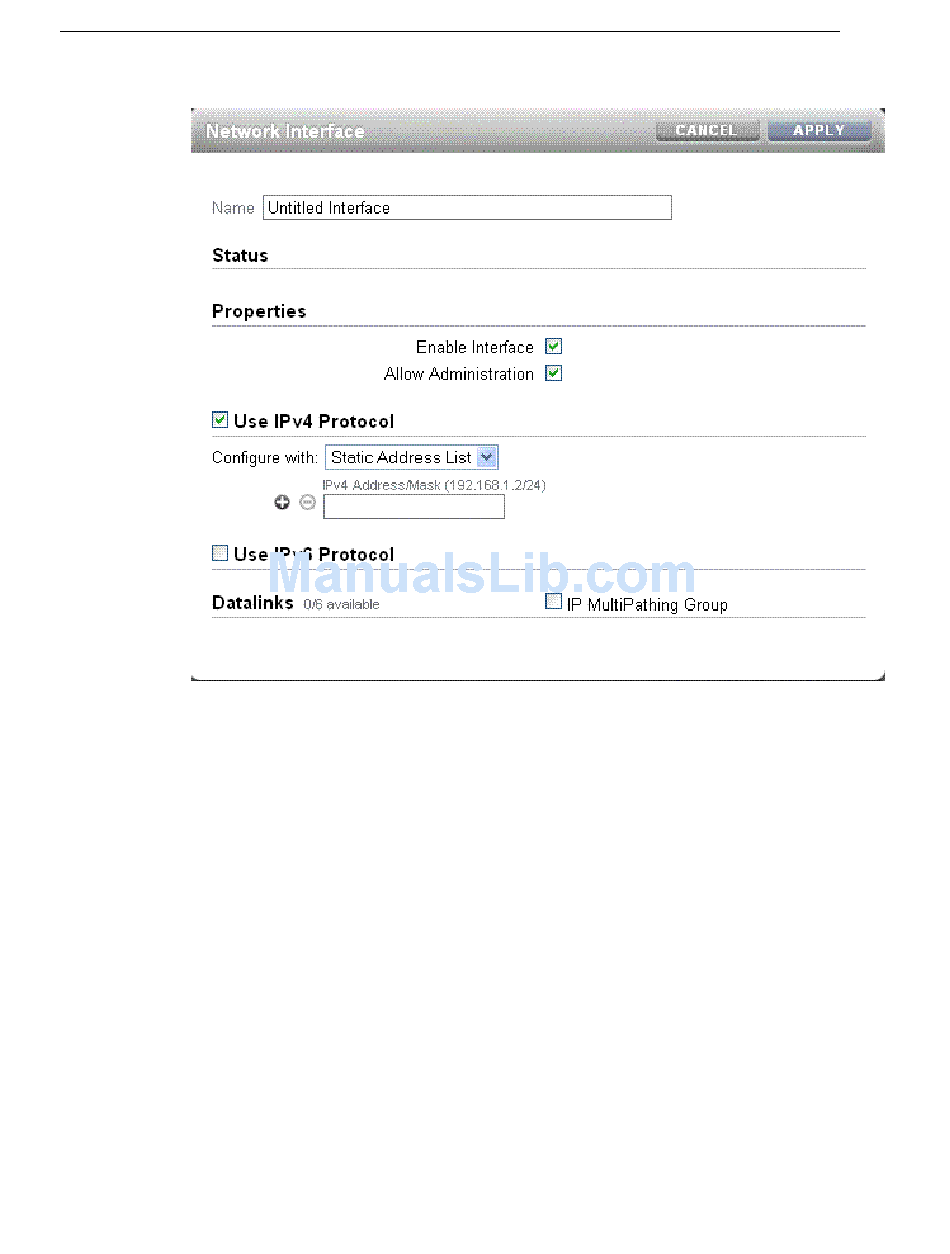

Figure 8-5
Enter a name for the new interface. In the Properties section, select the Enable
Interface option. Select the IP MultiPathing Group option to configure two interfaces,
such as igb2 and igb3, in an IPMP group.
8.4.4.2 Configure Option 2: ASR Support and Shared Path for Management and
Disaster Recovery, with Single Management URL
In this custom configuration, the igb0 port on your active storage head (head 1) is
used, and the management option is enabled. The igb0 port on your stand-by storage
head (head 2) is not used. The igb1 port on your stand-by storage head (head 2) is
used, and the management option is disabled. The igb2 and igb3 ports are bonded
with IP Multipathing (IPMP), and the management option is enabled on both igb2
and igb3.
This configuration option offers the following benefits:
• Supports Automated Service Request (ASR) for the storage appliance included in
the Exalogic machine, using ports igb0 and igb1
• Supports disaster recovery for the Exalogic machine, using ports igb2 and igb3
• Provides Exalogic Configuration Utility, which is used to reconfigure the Exalogic
machine based on your specific requirements, with ports igb0 and igb1
• Provides single management URL for both storage heads, using ports igb2 and
igb3
8-10 Oracle Exalogic Elastic Cloud Machine Owner's Guide

Creating a New IPMP Group Interface
