Rear Harness - Factory Five Racing Mk3 Roadster Assembly Manual

1. Run rear harness along left side of the frame trunk extensions.
2. Use the inertia cut-off switch as a template and drill two holes in the trunk aluminum on the far corner
of the driver's side. Mount the inertia fuel cut-off switch on the inside.
3. Run (2) wires (using blue wire extensions provided in kit) from the left rear, side marker-light, up
through the roll bar rear leg hole to be used for the license plate light. Leave the wires in the trunk for
now.
4. The remaining section of the rear harness runs to the battery where it joins the battery cable and runs
along the transmission tunnel down tubes.

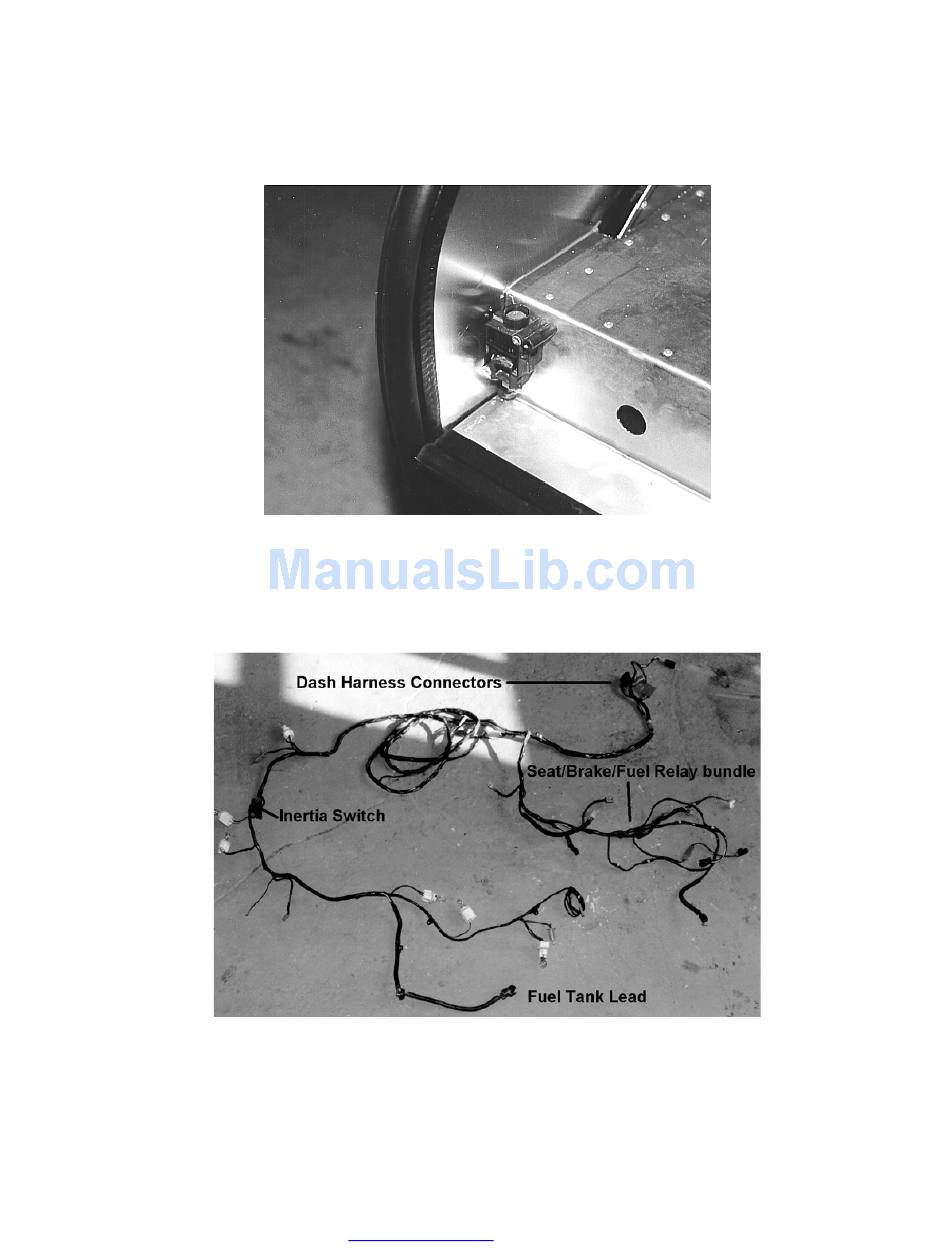

Rear Harness

Mustang inertia cut off switch
Rear harness
