Trunk Hinges - Factory Five Racing Mk3 Roadster Assembly Manual

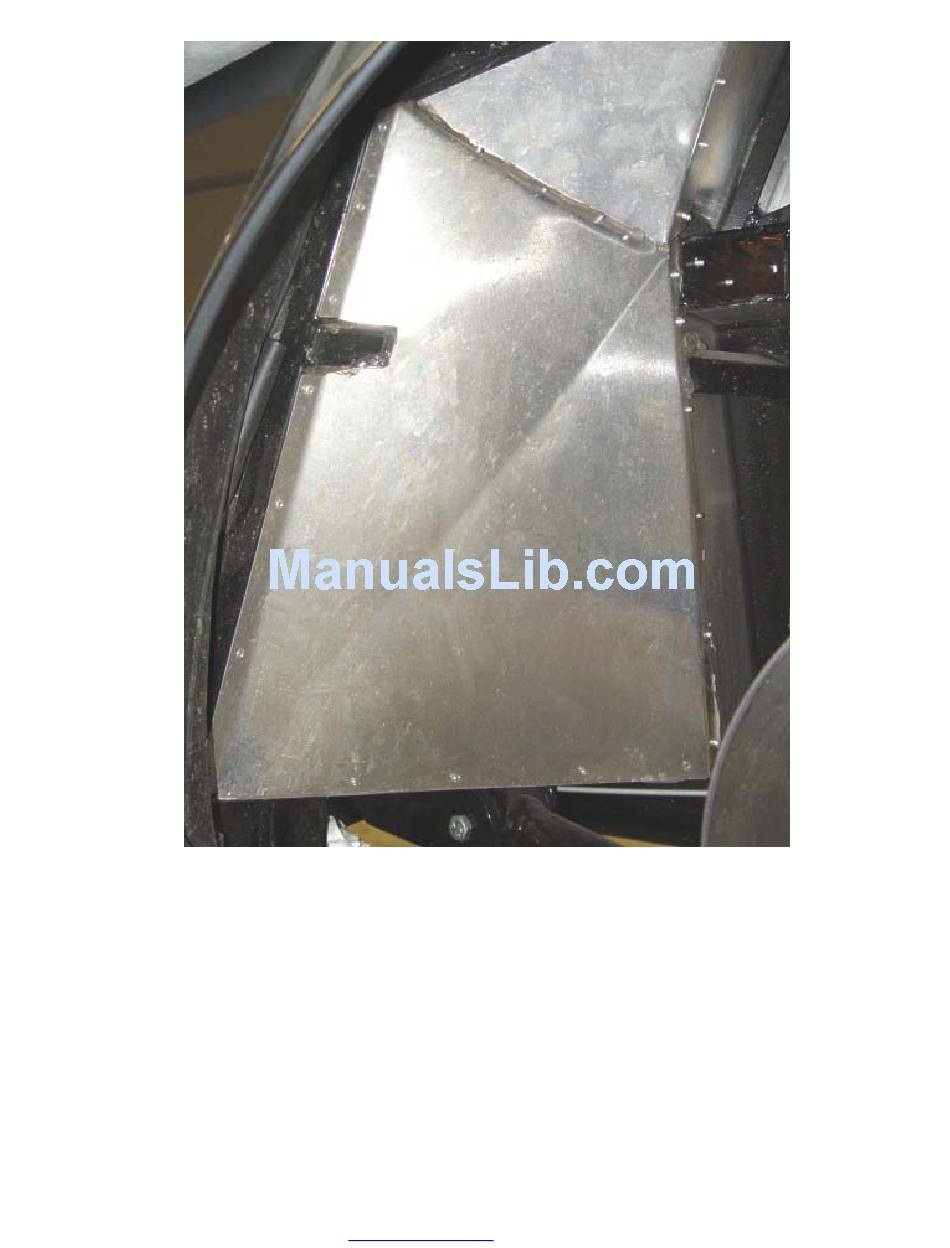

Rear cockpit lower splash panel.
6. Hold the panels in place with #8 screws.
7. Use a marker and ruler to mark the rivet holes on the aluminum panel.
8. Note where the panels touch each other and where they touch the frame. Remove the panels.
9. Apply silicone to the upper splash panels.
10. Install the upper splash panels with #8 screws.
11. Apply silicone to where the lower splash panels touch.
12. Install the lower splash panels with #8 screws.
13. Use ⅛" drill bit and drill the rivet marks.
14. Rivet the panels in place with ⅛" short or long rivets.
