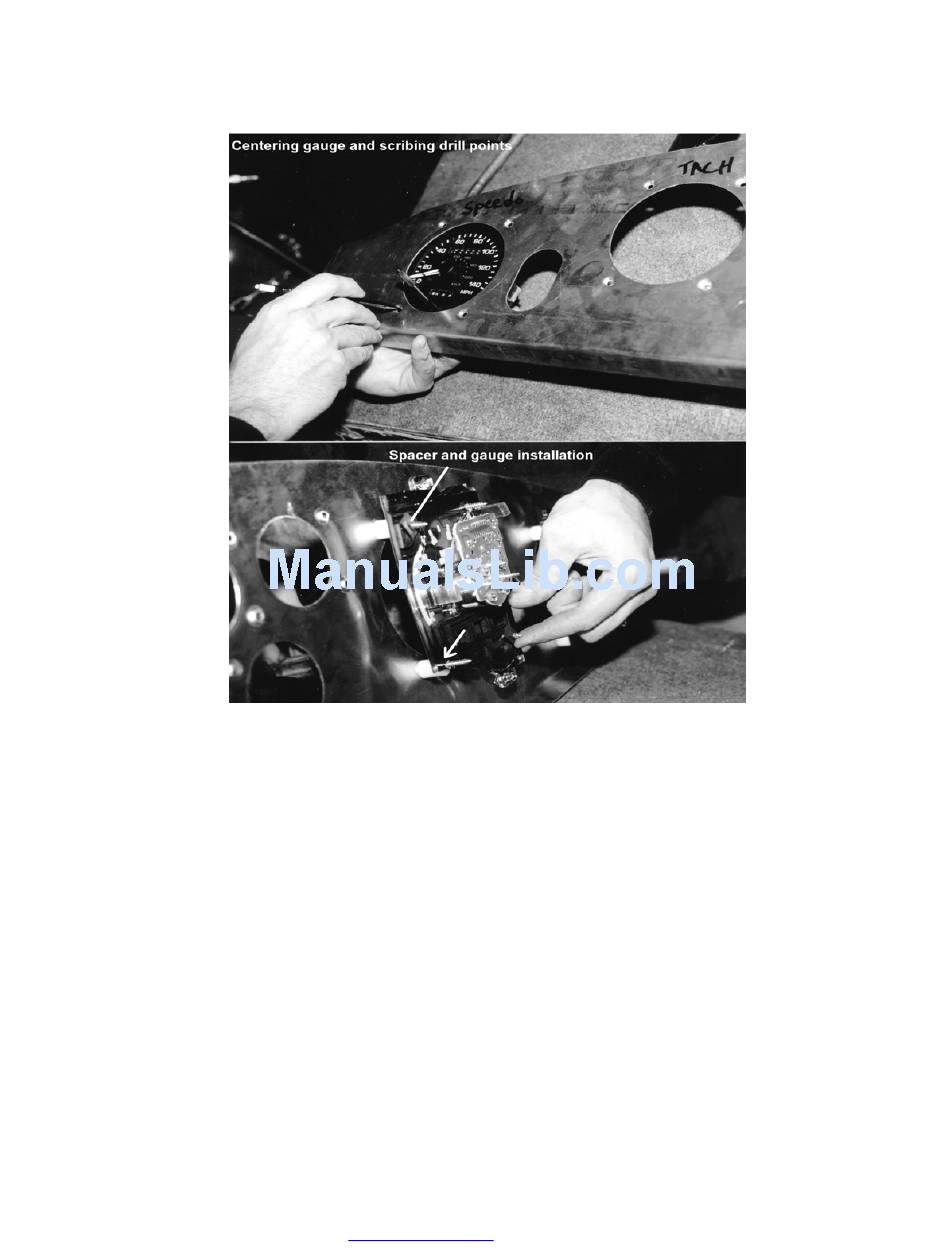

10. If you would like to install the three lights that are included in the kit, the original Roadster's had
them positioned directly over the steering column in a straight line. Use a ½" drill bit for the
holes.
11. The blue light will light when the high beams are on.
a. Connect one lead from the blue light to the black wire and the other lead to the second 4 conductor
2' section.
b. Attach the other end of the same wire to the gray plug pin #2 (Dimmer to High Beams) using red
connectors.
12. The red light is check engine or charge. Use wires and run them to the appropriate bulb on the white
pod. The green light is for turn signals.
13. The turn signal light uses a three prong flasher unless two lights are used, one for each direction.
Using the one light in the kit, remove the two-prong flasher from above the passenger compartment.
Break/cut the connector for it in half and connect the purple/pink wire to the prong marked "L".
Attach the other wire to the prong marked "X" and then attach the dash light to the center flasher
connection with a female connector and using the 4 ft. long extension. The other lead, on the light,
connects to the ground terminal block. With this set-up, the green light will flash when either the left
or right turn signal is triggered.
14. Tape or silicone over the dimpled area where the set screws are, so that the dash cover does not show
any wrinkles or imperfections underneath. The standard dash cover has a thin foam backing, which
will help cover any imperfections from the screw heads.
