ATTENTION: If you are going to run the car with a Carburetor you can disregard the wiring harness
part in this section. We still recommend the use of a fuel inertia cut off switch in your car if
using an electric fuel pump.
TOOLS: Socket set
PARTS: Mustang Computer and OEM plastic cradle.
1. Remove the kick panel in the passenger footbox.
2. Disconnect the ground strap in the footbox next to the computer.
3. Remove the computer and its plastic holder from the passenger footbox area.
TOOLS: Socket set, Phillips head screwdrivers, Needle-nose pliers.
PARTS: Mustang Speedometer cable.
1.
Remove all visible screws from the dash gauge pod. You can reach the two screws above the
instrument pod with a short Phillips head screwdriver. The two gauge wiring connectors are removed
from the gauge cluster by squeezing the outside clips.
2.
The speedometer cable is unsnapped from the speedometer by squeezing the white retainer ring and
then pulling off.
3.
The other end of the cable will be removed later in the disassembly.
4. Remove the snap connectors that feed the outside pod switches. This is done by pulling the switch
out toward the driver and requires a regular head screwdriver to press on the side before the piece can
slide out.
Computer

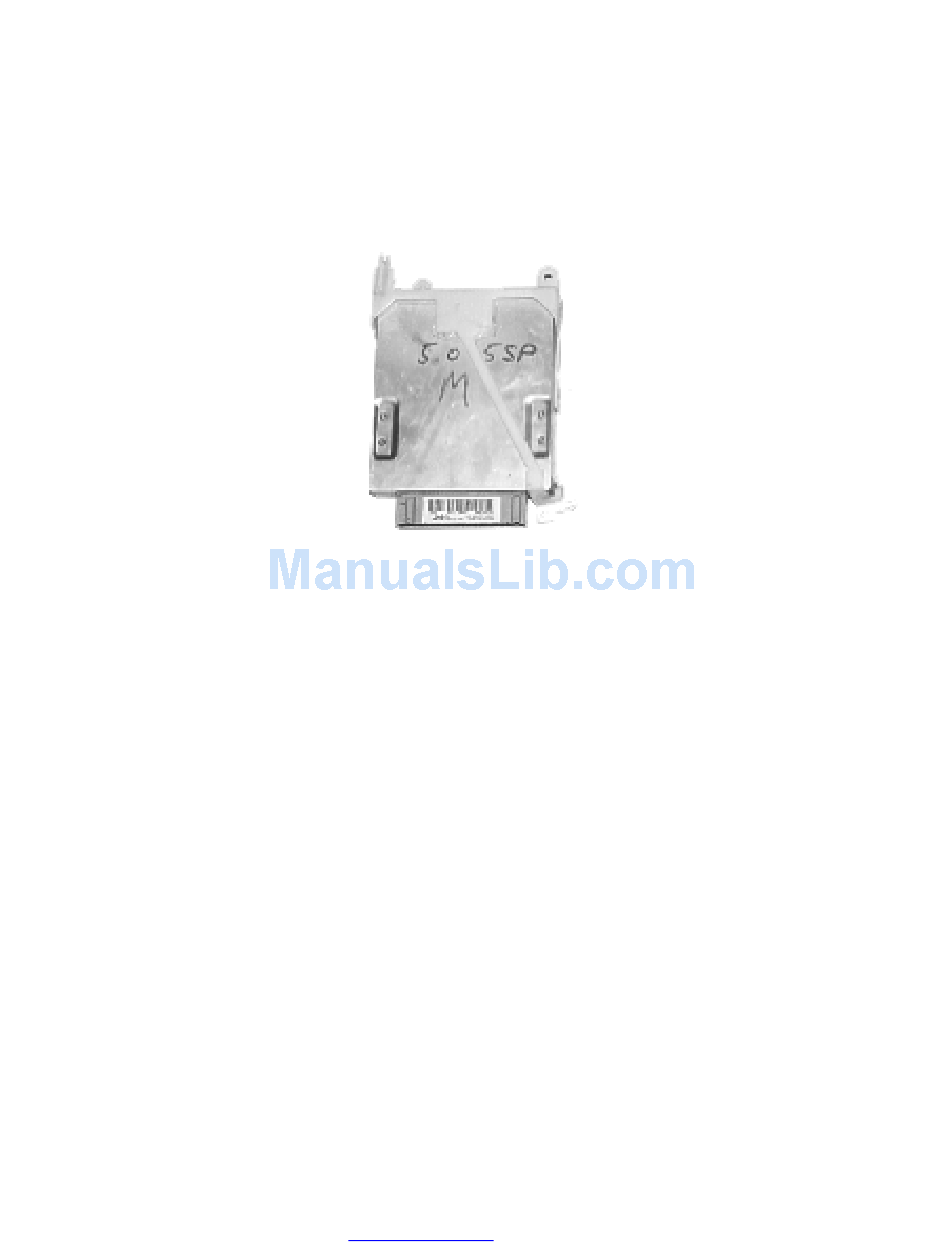

EEC-IV computer and cradle.
Gauge Cluster and Speedometer Cable
18
www.factoryfive.com
508-291-3443
