Factory Five Racing Mk3 Roadster Assembly Manual page 64

1. Use the ⅜"x 2" bolts provided to mount the master cylinder and spacers to the footbox front wall.
The number of spacers used dictates the height of the brake pedal. Start with one spacer unless you
are 6' or taller then use more.
2. One of these bolts doubles as a foot box lower mounting bolt.
3. Tighten all of the mounting bolts for the pedal box and master cylinder.
4. Install the push rod from the power booster into the master cylinder and insert the white plastic
bushing in the ring end.
5. Hold the rod between the two ears of the brake light switch and slide it over the brake pedal post.
6. Put the clip through the hole in the pedal so that the push rod will not come off.

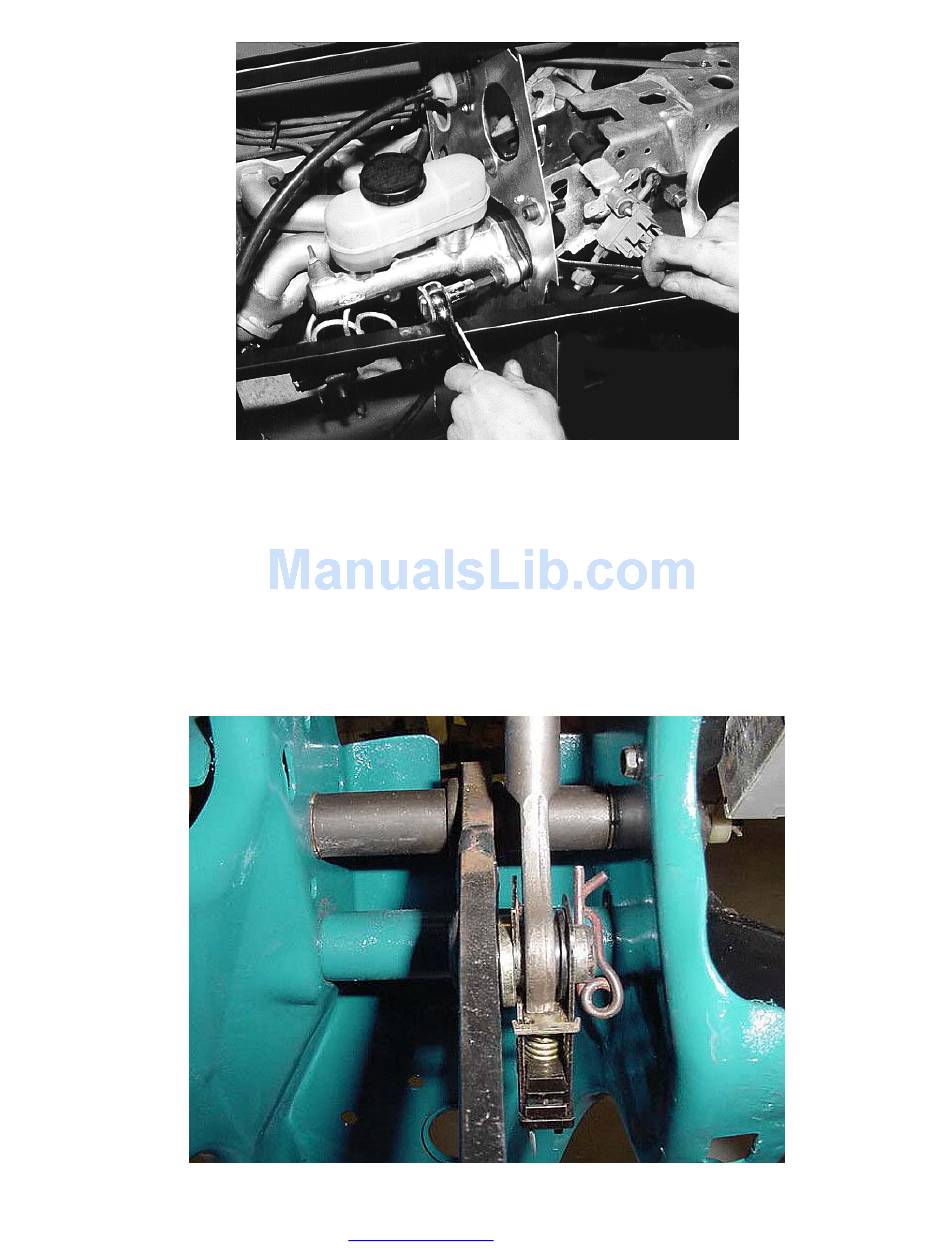

Tightening the master cylinder. Note the spacers directly behind it
View up at the mounted brake pedal
