Factory Five Racing Mk3 Roadster Assembly Manual page 139

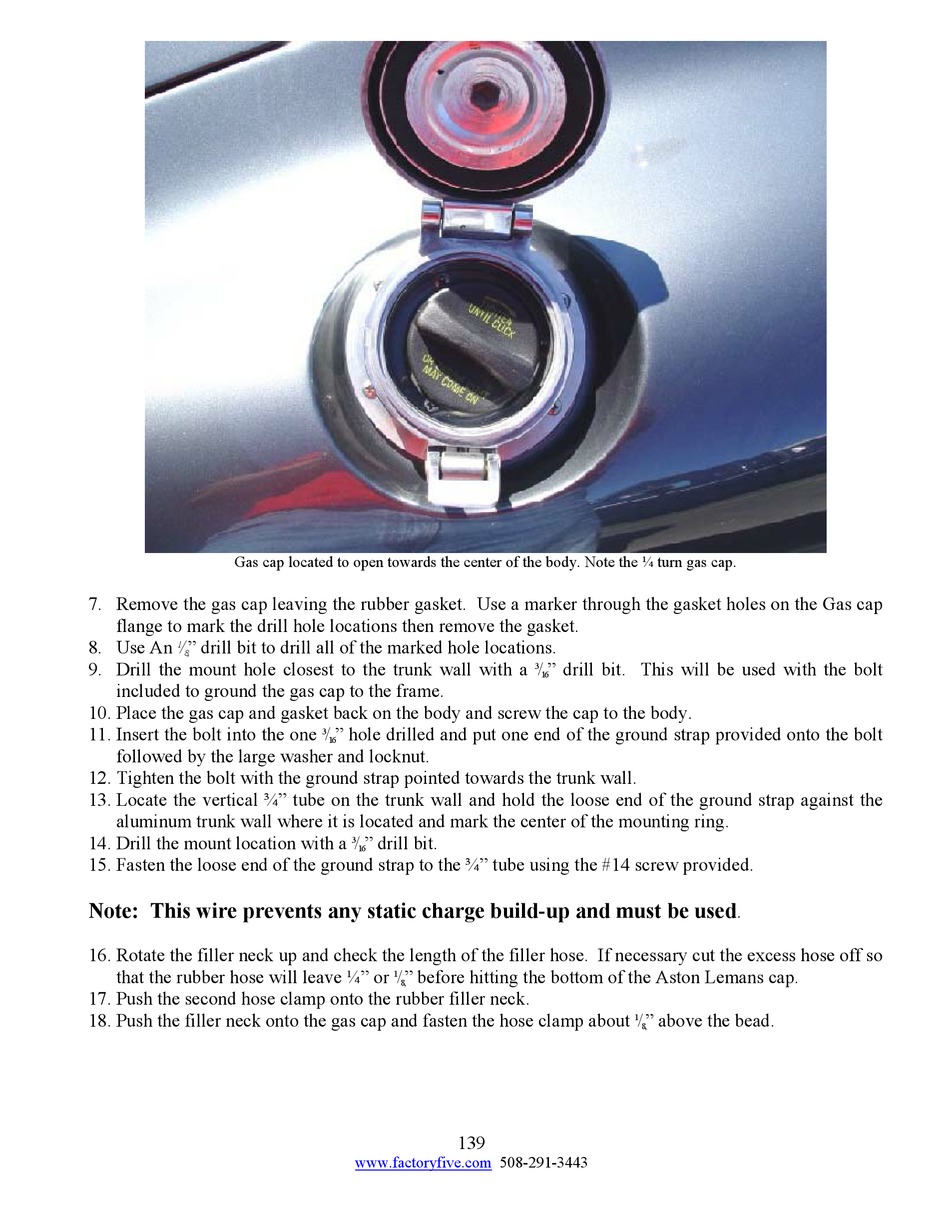

Gas cap located to open towards the center of the body. Note the ¼ turn gas cap.
7. Remove the gas cap leaving the rubber gasket. Use a marker through the gasket holes on the Gas cap
flange to mark the drill hole locations then remove the gasket.
8. Use An / " drill bit to drill all of the marked hole locations.
1
8,
9. Drill the mount hole closest to the trunk wall with a
included to ground the gas cap to the frame.
10. Place the gas cap and gasket back on the body and screw the cap to the body.
11. Insert the bolt into the one
followed by the large washer and locknut.
12. Tighten the bolt with the ground strap pointed towards the trunk wall.
13. Locate the vertical ¾" tube on the trunk wall and hold the loose end of the ground strap against the
aluminum trunk wall where it is located and mark the center of the mounting ring.
14. Drill the mount location with a
15. Fasten the loose end of the ground strap to the ¾" tube using the #14 screw provided.
Note: This wire prevents any static charge build-up and must be used
16. Rotate the filler neck up and check the length of the filler hose. If necessary cut the excess hose off so
that the rubber hose will leave ¼" or
17. Push the second hose clamp onto the rubber filler neck.
18. Push the filler neck onto the gas cap and fasten the hose clamp about
/ " hole drilled and put one end of the ground strap provided onto the bolt
3
16
/ " drill bit.
3
16
/ " before hitting the bottom of the Aston Lemans cap.
1
8,
139
