Speedometer And Clutch Cables - Factory Five Racing Mk3 Roadster Assembly Manual

TOOLS: Socket set, duct tape.
PARTS: Speedometer cable and sending unit, clutch cable.
1. Pull the speedometer cable out from the dash area keeping the rubber grommet that is on it in place.
This grommet will also be used.
2. Remove the bolt that holds the cable to the body near the exhaust in the engine bay.
3. Remove the wiring harness plug from the sending unit.
4. Remove the speedometer sending unit bolt using an 11mm socket.
5. Pull the sending unit straight out.
6. Replace the screw in the transmission once the sending unit is removed.
7. Cover the speedometer drive hole with duct tape to prevent dust and dirt from entering.
8. Remove the clutch cable cover from the bell housing and push the cable out of the clutch fork.
9. Release the cable sheath retainer clip. Pull the cable out and replace the clip on the cable. You may
even want to tape it in place.

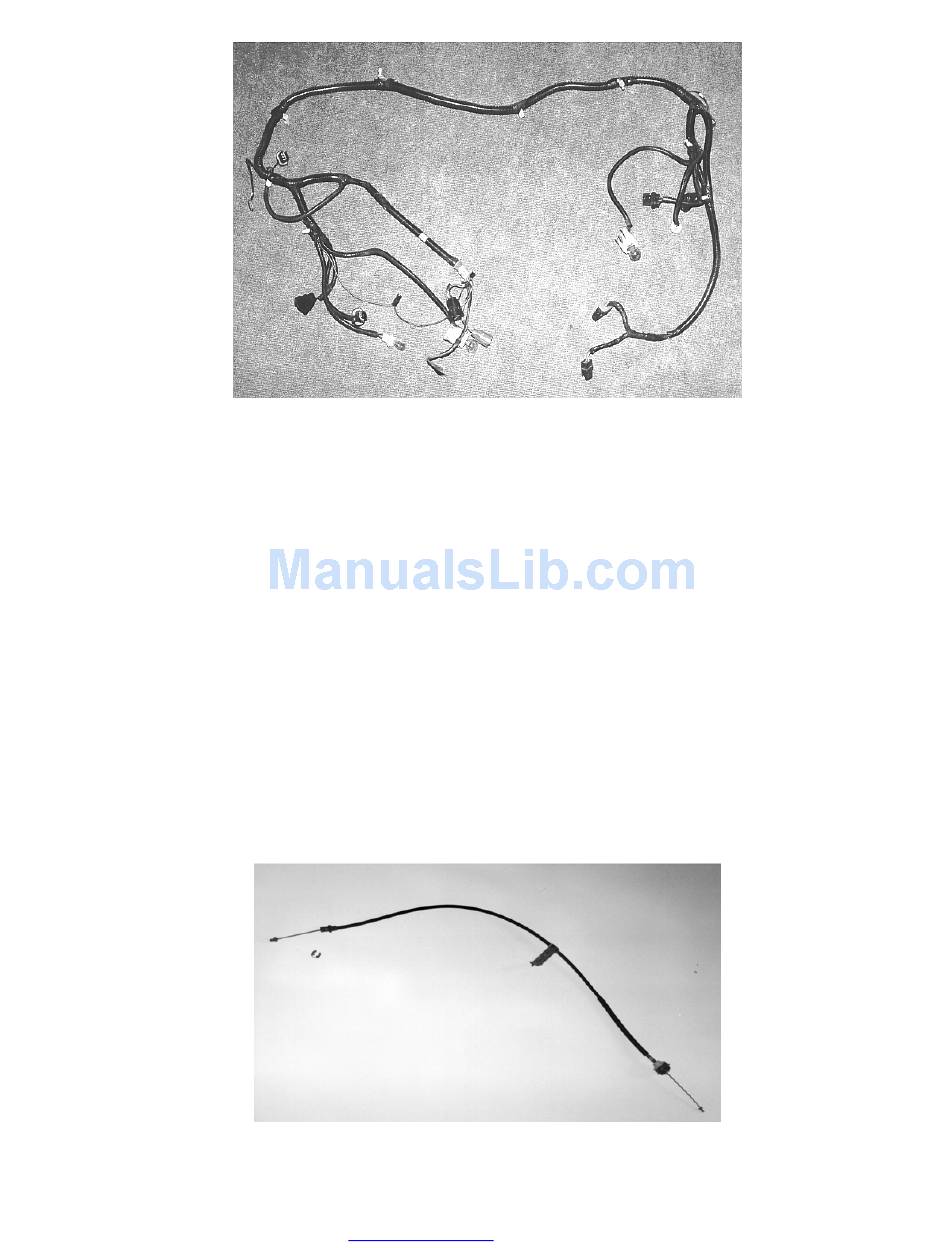

Front wiring harness with hookups for headlights, alternator, and horn

Speedometer and Clutch Cables

Clutch cable and retainer circlip.
