Factory Five Racing Mk3 Roadster Assembly Manual page 262

2. Attach the shaft end of the Quad shock to the rear quad shock bracket hole on the frame using the
washer on the outside of the quad shock as shown in the picture.
• Spindle Installation
Attention: The caliper is mounted on the rearward side of the spindle.
1. Push the inner joint into the center section until it clicks.
2. Push the outer CV Joint through the spindle.
3. Using the OEM T-bird nuts and bolts, fasten the spindle to the control arms.
4. Attach the large nut using an impact wrench.
5. Put a jack under the lower shock mount and raise the jack until just before the frame lifts off the jack
stands in order to simulate ride height.
6. Torque the spindle attachment bolts to 100 Ft-lbs.
Note:
If using the IRS Completion Package, follow the IRS 11.65" brake instructions for the Calipers and
Emergency brake cable installation.

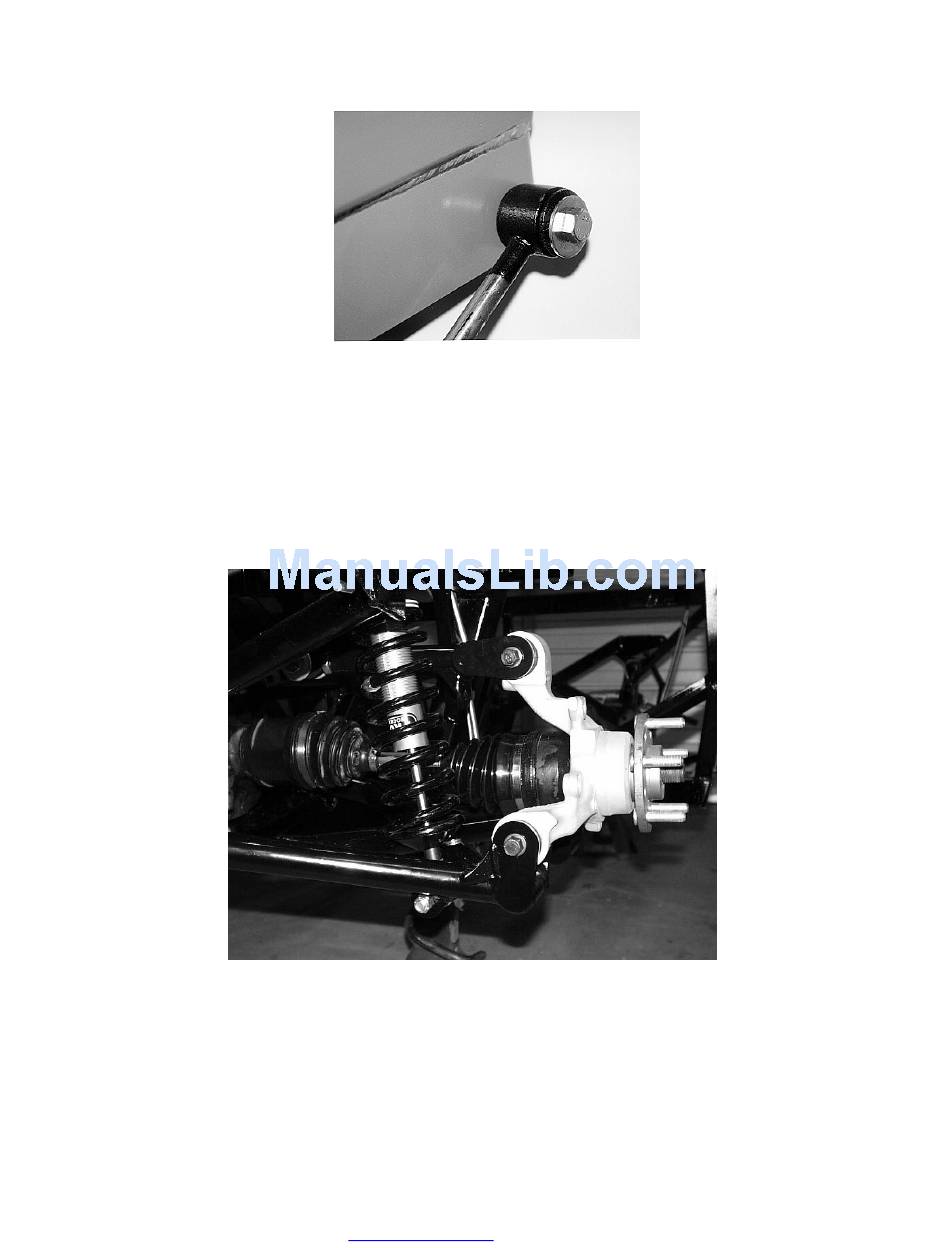

Quadshock mounted to frame bracket.
