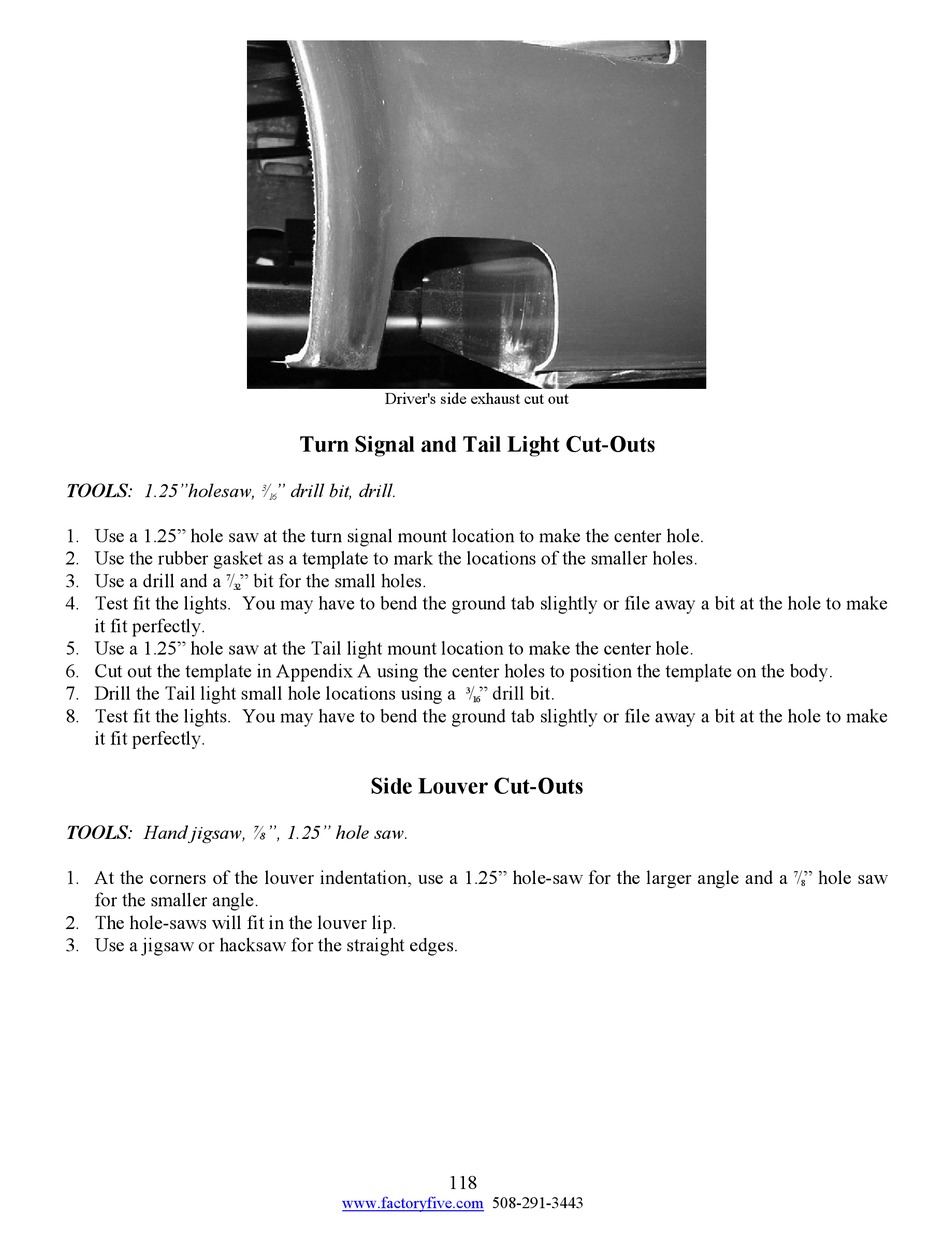

Factory Five Racing Mk3 Roadster Assembly Manual page 118

TOOLS: 1.25"holesaw,
1. Use a 1.25" hole saw at the turn signal mount location to make the center hole.
2. Use the rubber gasket as a template to mark the locations of the smaller holes.
3. Use a drill and a / " bit for the small holes.
7
32
4. Test fit the lights. You may have to bend the ground tab slightly or file away a bit at the hole to make
it fit perfectly.
5. Use a 1.25" hole saw at the Tail light mount location to make the center hole.
6. Cut out the template in Appendix A using the center holes to position the template on the body.
7. Drill the Tail light small hole locations using a
8. Test fit the lights. You may have to bend the ground tab slightly or file away a bit at the hole to make
it fit perfectly.
TOOLS: Hand jigsaw, ⅞", 1.25" hole saw.
1. At the corners of the louver indentation, use a 1.25" hole-saw for the larger angle and a
for the smaller angle.
2. The hole-saws will fit in the louver lip.
3. Use a jigsaw or hacksaw for the straight edges.
Driver's side exhaust cut out
Turn Signal and Tail Light Cut-Outs
/ " drill bit, drill.
3
16
Side Louver Cut-Outs
