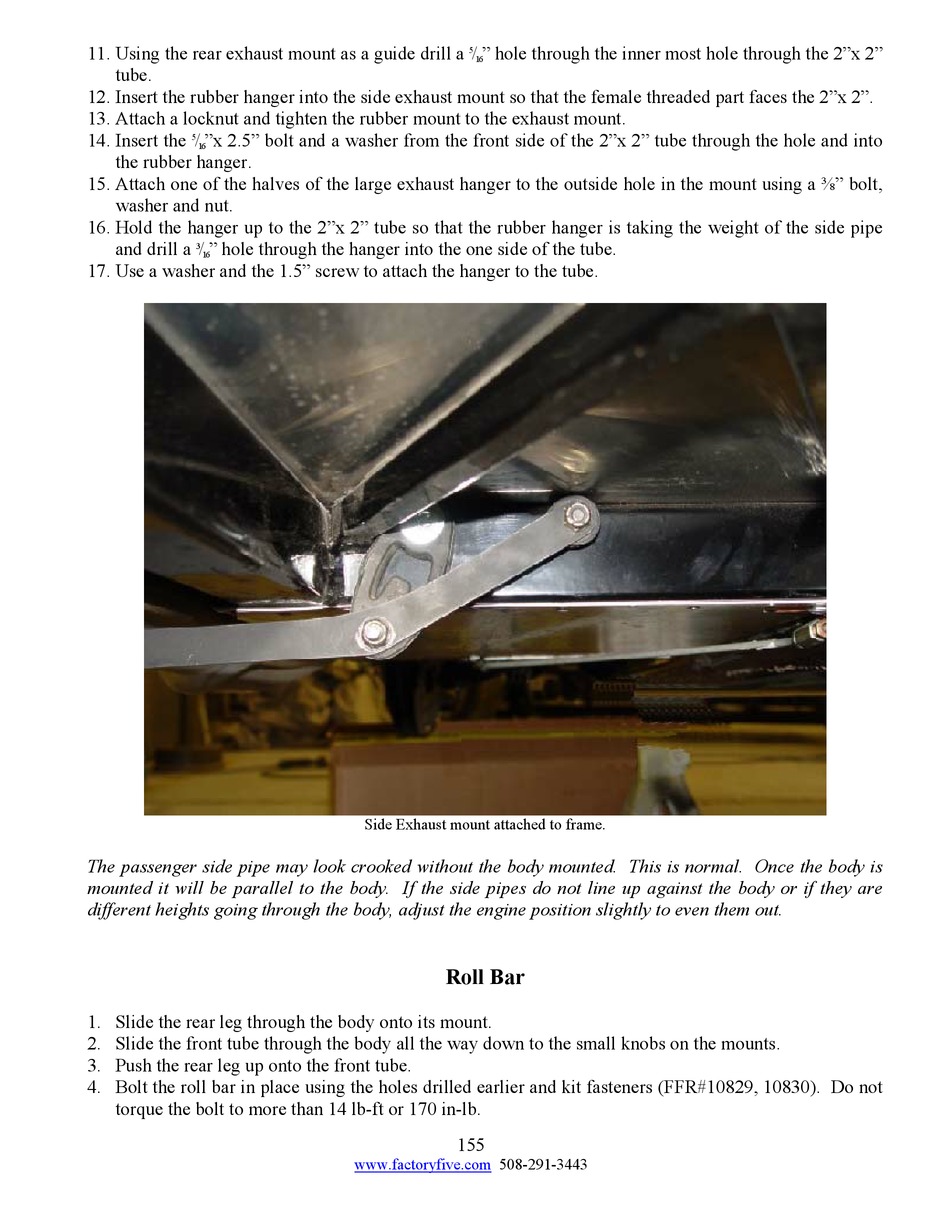

11. Using the rear exhaust mount as a guide drill a
tube.
12. Insert the rubber hanger into the side exhaust mount so that the female threaded part faces the 2"x 2".
13. Attach a locknut and tighten the rubber mount to the exhaust mount.
14. Insert the / "x 2.5" bolt and a washer from the front side of the 2"x 2" tube through the hole and into
5
16
the rubber hanger.
15. Attach one of the halves of the large exhaust hanger to the outside hole in the mount using a ⅜" bolt,
washer and nut.
16. Hold the hanger up to the 2"x 2" tube so that the rubber hanger is taking the weight of the side pipe
and drill a / " hole through the hanger into the one side of the tube.
3
16
17. Use a washer and the 1.5" screw to attach the hanger to the tube.
The passenger side pipe may look crooked without the body mounted. This is normal. Once the body is
mounted it will be parallel to the body. If the side pipes do not line up against the body or if they are
different heights going through the body, adjust the engine position slightly to even them out.
1. Slide the rear leg through the body onto its mount.
2. Slide the front tube through the body all the way down to the small knobs on the mounts.
3. Push the rear leg up onto the front tube.
4. Bolt the roll bar in place using the holes drilled earlier and kit fasteners (FFR#10829, 10830). Do not
torque the bolt to more than 14 lb-ft or 170 in-lb.
/ " hole through the inner most hole through the 2"x 2"
5
16
Side Exhaust mount attached to frame.

Roll Bar
