Factory Five Racing Mk3 Roadster Assembly Manual page 243

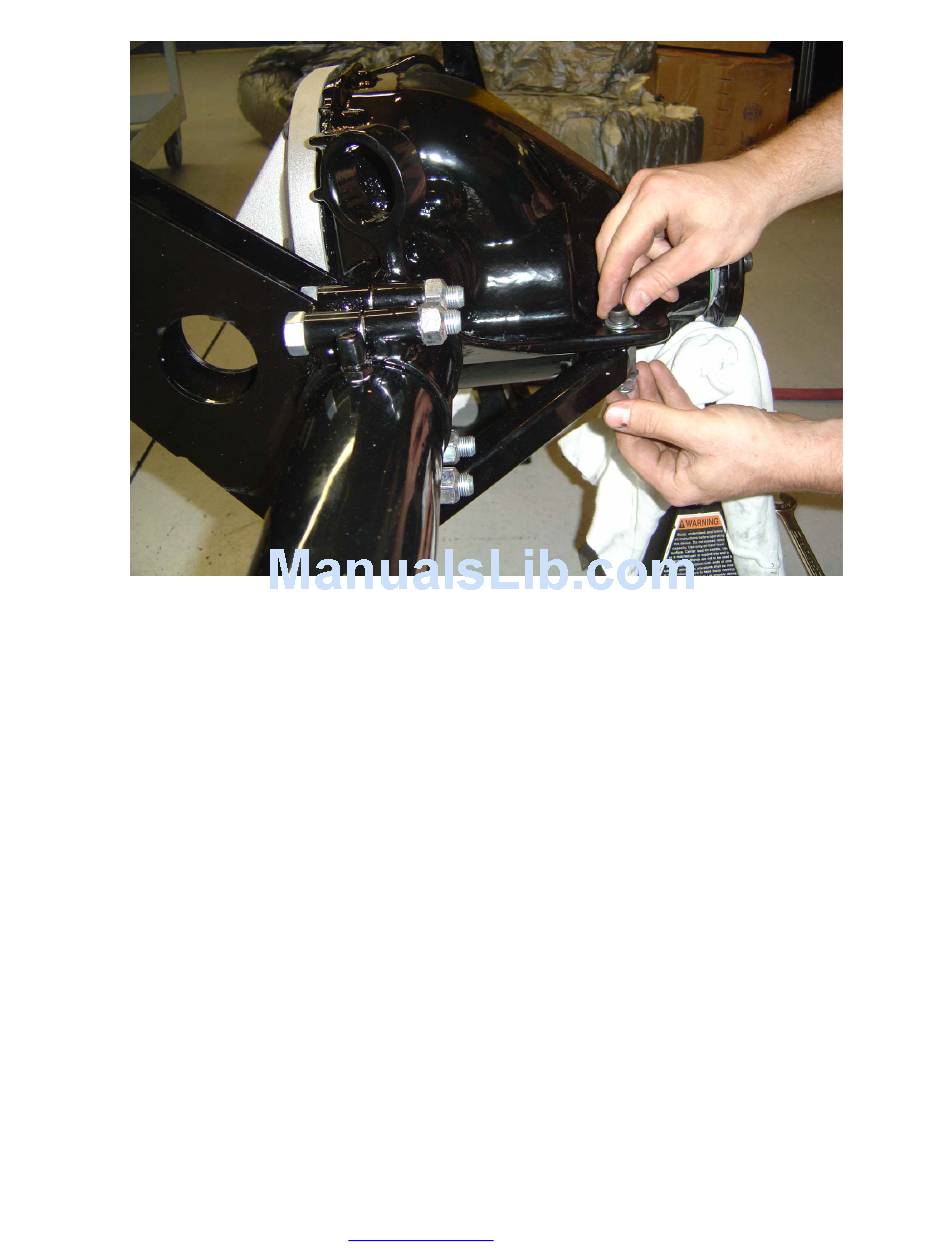

13. Install the rod ends with jam nuts in the upper control arm and bolt the arm in place. One end bolts to
the axle bracket just installed and the other end to the bracket welded in at the factory on the
passenger side of the 2"x 3" frame rail. Use the spacers and ⅝" bolts provided. The lower bolt hole
provides more traction than the upper hole.
14. Drill the Panhard bar frame mount hole for the front leg mount through the back of the 4" round tube.
Make sure before drilling that the hole is lined up close to the center of the 2"x 3" vertical tube so that
a nut can be attached on the back of the bolt from the bottom.
