Alternate Drive Pulley - Factory Five Racing Mk3 Roadster Assembly Manual

3. Install the block off plugs (with a ⅜" hex key) in the adapter holes not being used. Use the Teflon
tape on the threads of the plugs as you tighten them. Wrap the Teflon tape so it stretches when you
attach the plug into the threaded socket. Max torque for the fittings on the relocate kit is 28 lbft.
4. Thread the short end of the threaded nipple into the relocator.
5. Mount the oil filter relocator on the old AC bracket or on the front frame X member (preferred
location). If you're going to mount the relocate bracket on the X member, make sure to drill this
before you install your engine. Otherwise, your drill won't fit in between the engine and the frame.
ATTENTION: If you are using under-drive pulleys or eliminating the smog pump do not drill the A/C
bracket according to the diagram. Instead use the belt as a guide to mount the pulley where the belt
will fit and have sufficient tension
TOOLS: ¾" socket, ¾" combination wrench.
PARTS: Alternate drive pulley components (FFR# 11080)
1. The fasteners should be packed with the pulley.
2. Place a washer onto the bolt.
3. Place the pulley wheel onto the bolt.
4. Place the aluminum sleeve on the bolt with the flange towards the pulley wheel, so that it slides inside
the pulley.

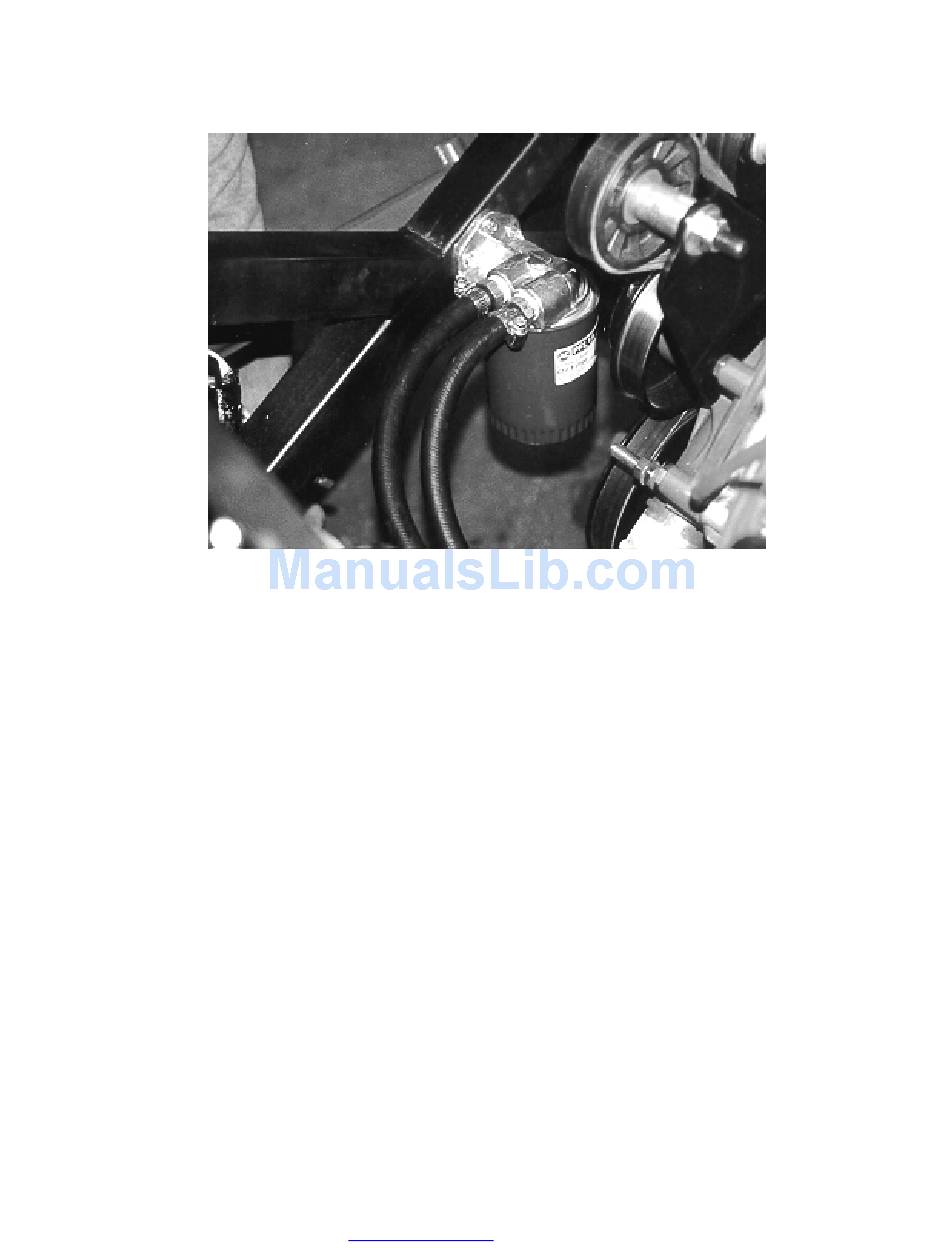

Remote oil filter mount on the X-member

Alternate Drive Pulley
