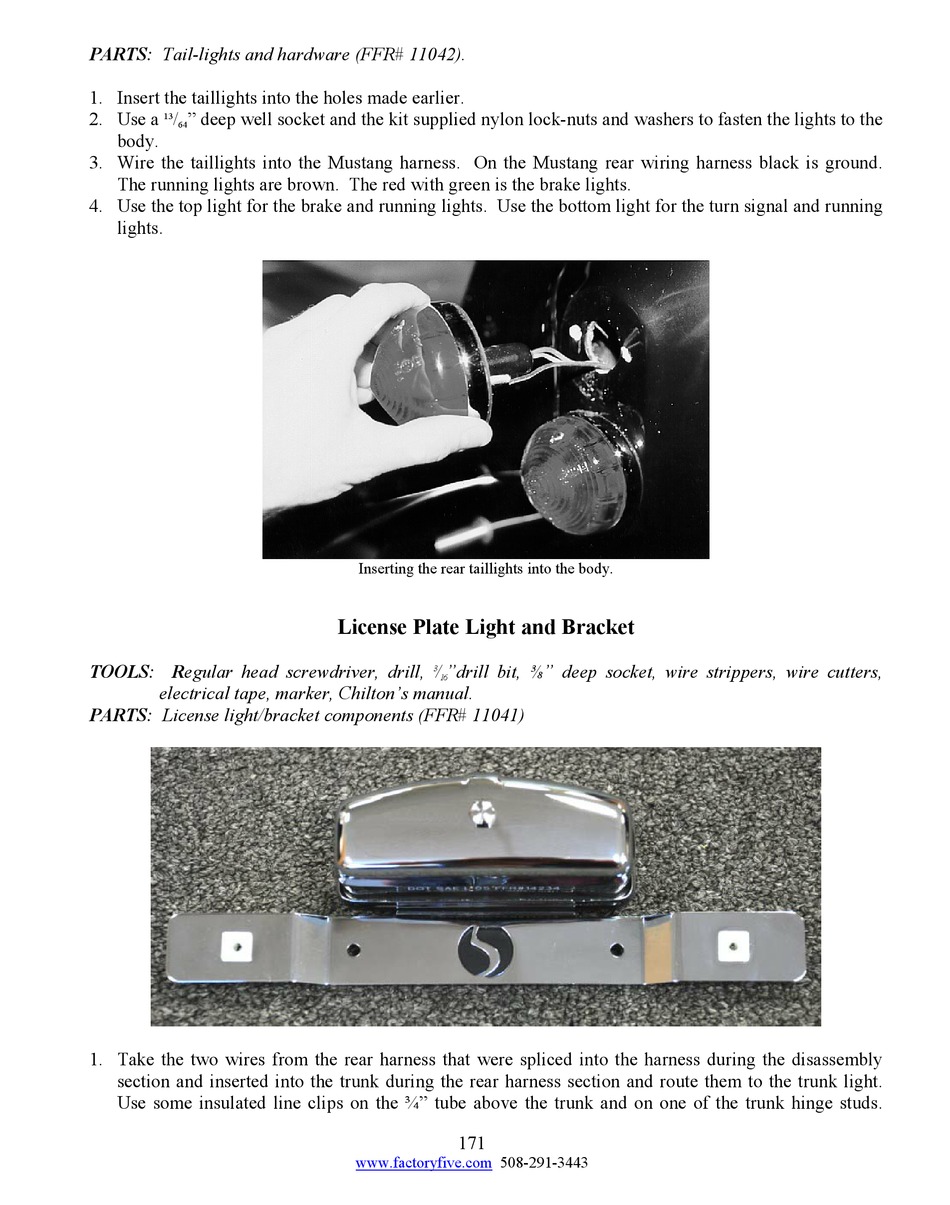

PARTS: Tail-lights and hardware (FFR# 11042).
1. Insert the taillights into the holes made earlier.
2. Use a
/
" deep well socket and the kit supplied nylon lock-nuts and washers to fasten the lights to the
13
64
body.
3. Wire the taillights into the Mustang harness. On the Mustang rear wiring harness black is ground.
The running lights are brown. The red with green is the brake lights.
4. Use the top light for the brake and running lights. Use the bottom light for the turn signal and running
lights.
TOOLS: Regular head screwdriver, drill,
electrical tape, marker, Chilton's manual.
PARTS: License light/bracket components (FFR# 11041)
1. Take the two wires from the rear harness that were spliced into the harness during the disassembly
section and inserted into the trunk during the rear harness section and route them to the trunk light.
Use some insulated line clips on the ¾" tube above the trunk and on one of the trunk hinge studs.
Inserting the rear taillights into the body.
License Plate Light and Bracket
/
"drill bit, ⅜" deep socket, wire strippers, wire cutters,
3
16
171
www.factoryfive.com
508-291-3443
