1. If retro fitting the Koni shocks, place the car on jack stands and remove the old shocks and springs.
Save all of the fasteners and spacers, they will be reused.

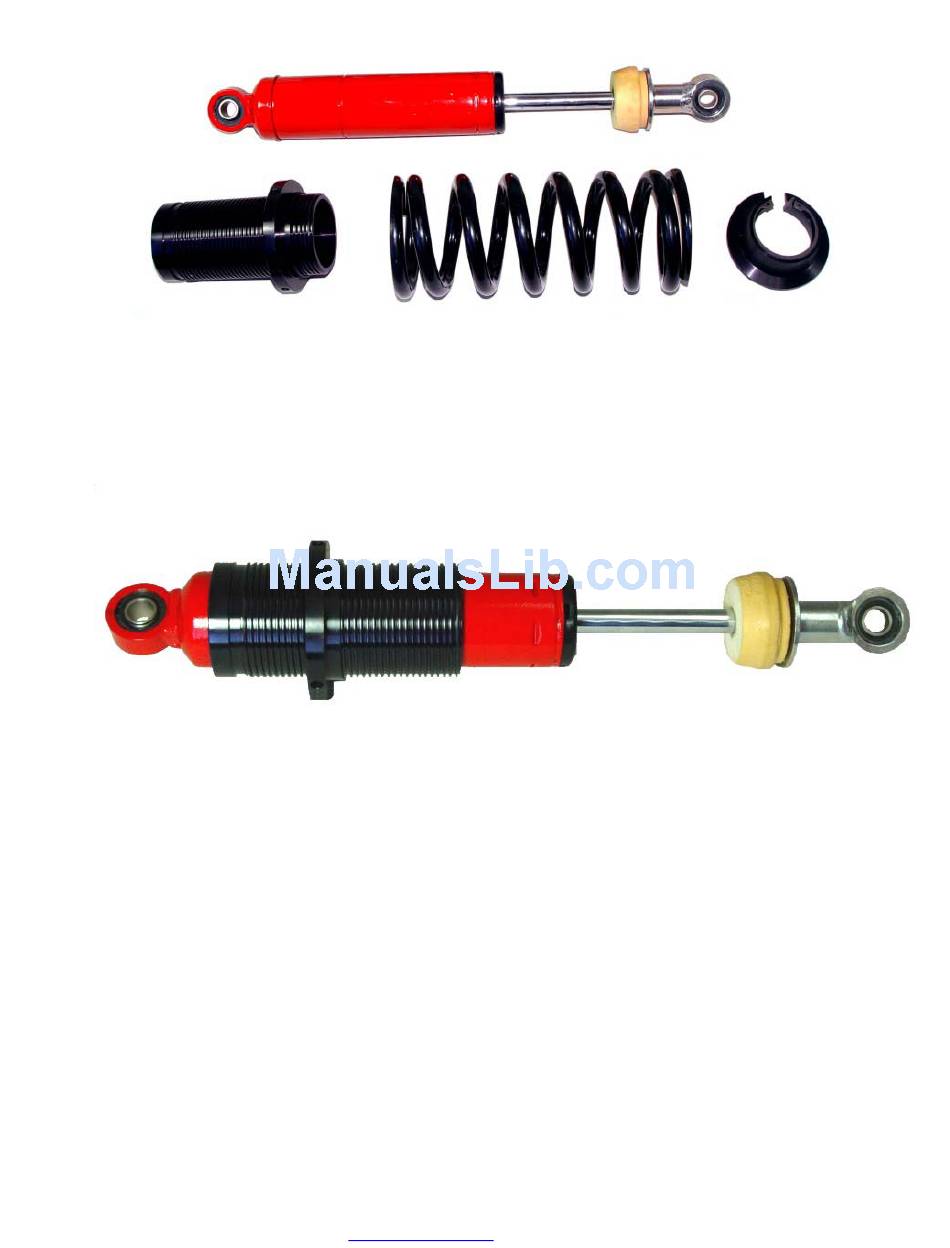

2. Double check the jam nut under the rod end and bump stop to make sure that it is tight.
3. Screw the spring seat down on the sleeve so it is closer to the unthreaded end.
4. Slide the coil sleeve over the body of the damper beginning at the end which has the rubber bump
stop. The unthreaded end of the sleeve goes first so that it will sit on the snap ring on the shock body.
5. The coil-over hats have a snap ring which holds it in place. Remove this snap ring to assemble the coil
over shock.
