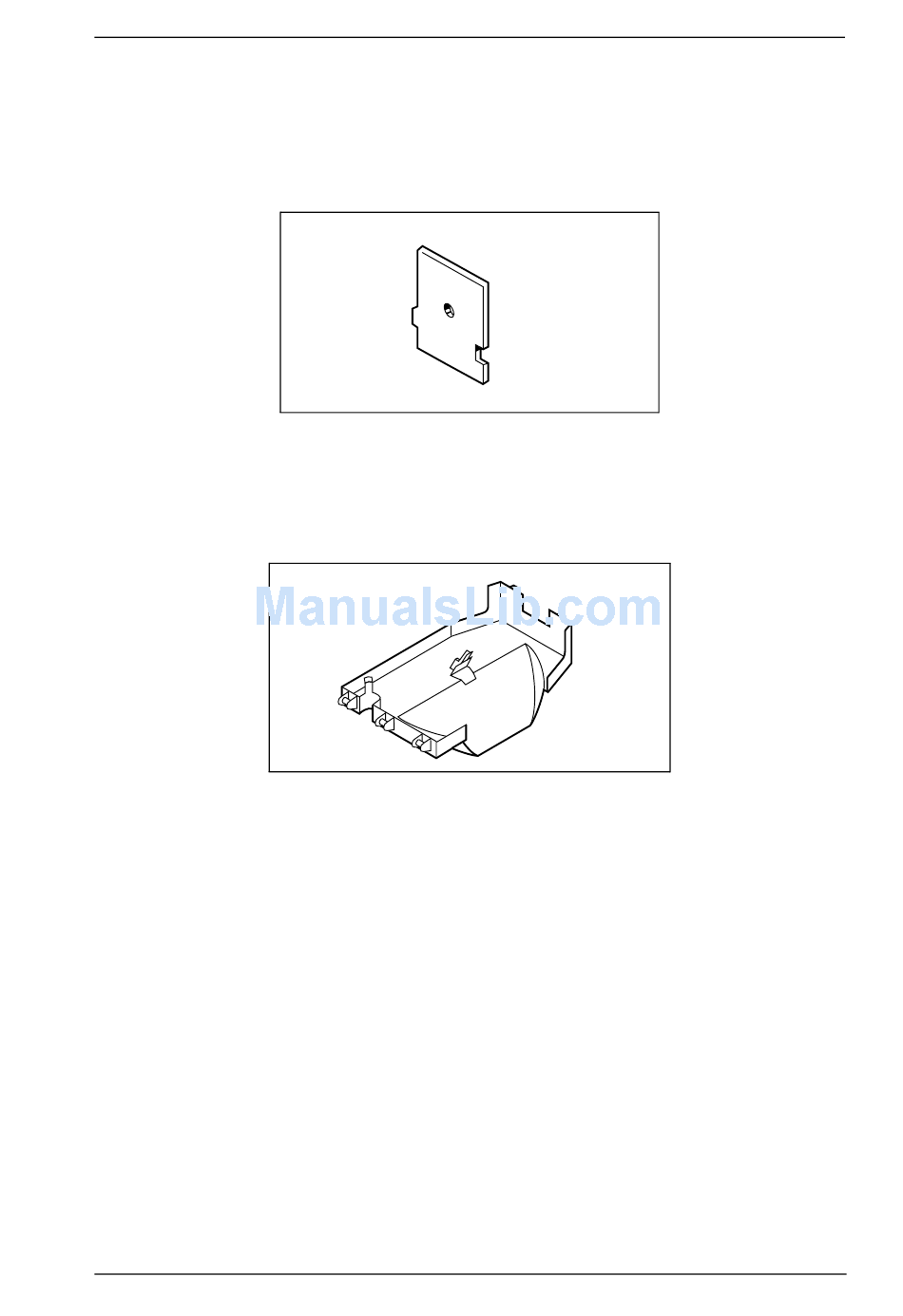

Spacer (three per system): install between the mounting

brackets of the ICS and an adjacent module. The Spacer

provides a 2.6 cm (1 in.) space between modules and the

Fiber Spool Holder (six per system): Replaces the trough

shelf in modules requiring additional fiber spools. Install

the spool holder in the right side of a Trunk Module.

ICS Door Label: Located on the inside of the ICS door, it

provides space to identify fiber port allocation on the ICS.

Fiber cable management system / 233

Modular ICS 6.0 Installer Guide
