11. Fill the engine with oil. Use the stock dip stick line as a fill level. See Appendix I for specifications
and capacities.
12. Before installing the driveshaft, the rear axle should be allowed to hang with the frame being
supported and the transmission should be in neutral.
13. Slide the driveshaft on the end of the transmission then line up the four holes in the rear flange with
the holes in the rear axle and install the pinion flange bolts using a 12pt. 12 mm wrench.
14. Hook the oil lines up to the Oil filter Relocator and the adapter on the engine. Make sure that the
lines go to the correct ports or the engine will be starved for oil. The out on the engine goes to the in
on the Relocator and the out on the Relocator goes to the in on the engine.
15. Fill the Transmission with fluid. See Appendix I for specifications and capacities.
TOOLS:
/
" hex key, ⅜",
5
64
PARTS: Pedal box hardware (FFR# 11023), Accelerator cable components (FFR# 13777).
87-93 Fuel Injected Applications
1. Using a ruler and marker measure and mark 2⅝" from the cylinder slug on the engine end of the
cable.
2. Using a pair of wire cutters, cut the cable at the location marked.
3. Remove and discard the included ball stud. It is for carbureted applications
4. Push and twist the included ball stud retainer onto the end of the cable. Do not tighten the set screw
yet.
Accelerator Cable
/
", ½" wrenches.
7
16

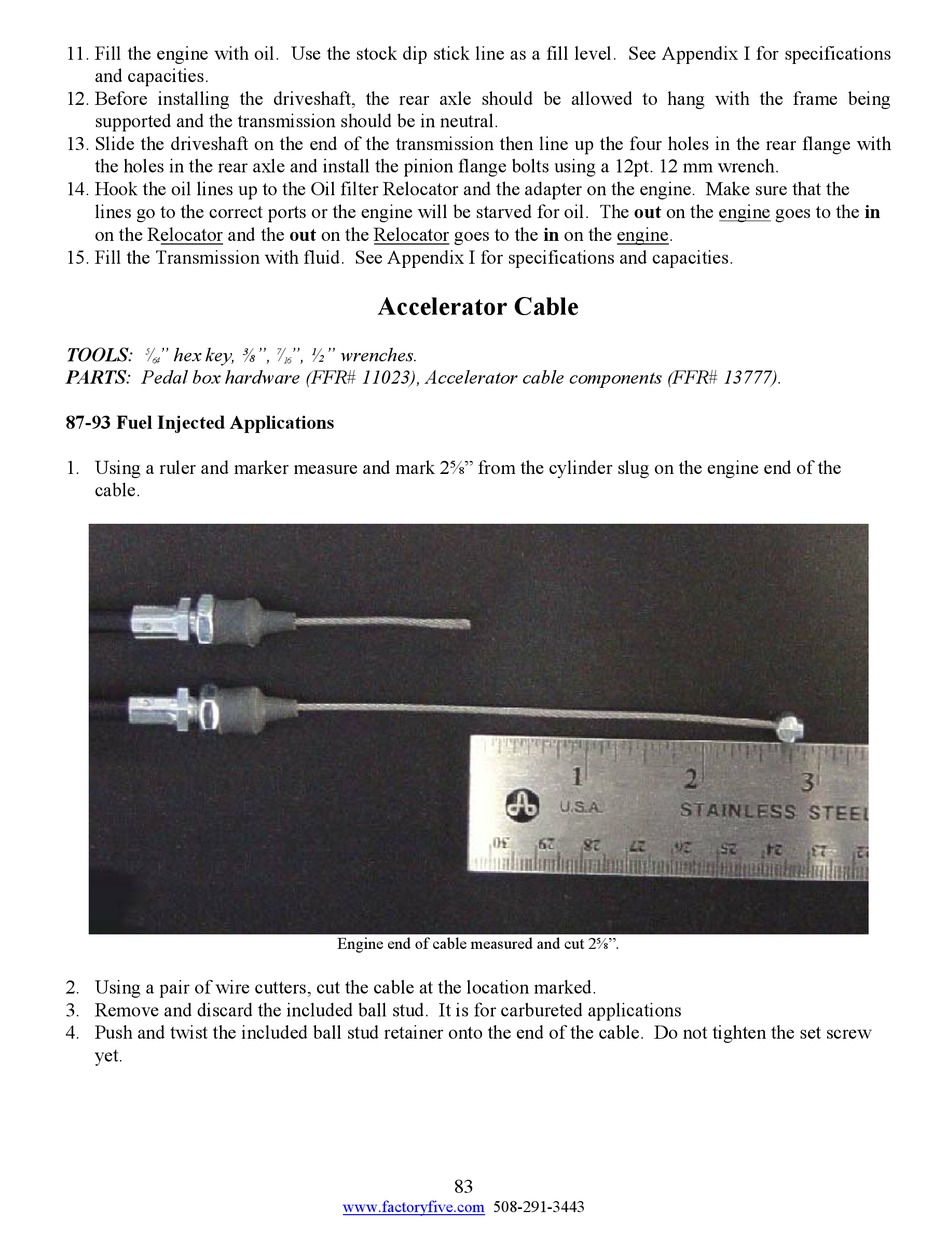

Engine end of cable measured and cut 2⅝".
