Roll Bar Drilling - Factory Five Racing Mk3 Roadster Assembly Manual

TOOLS: Drill, / " long drill bit, vise grips
5
16
1. Assemble the roll bar on the frame. Put the rear leg on, then slide the front hoop on all the way down
to the small knobs on the holders. Push the rear leg up onto the front tube.
2. Use vise grips or a friend to hold the rear roll bar leg in place.
3. Drill / " holes for the stainless roll bar bolts. Insert one of the bolts after drilling each hole to prevent
5
16
movement and ensure fit.
4. Remove the roll bar.
Kit driver footbox aluminum

Roll Bar Drilling

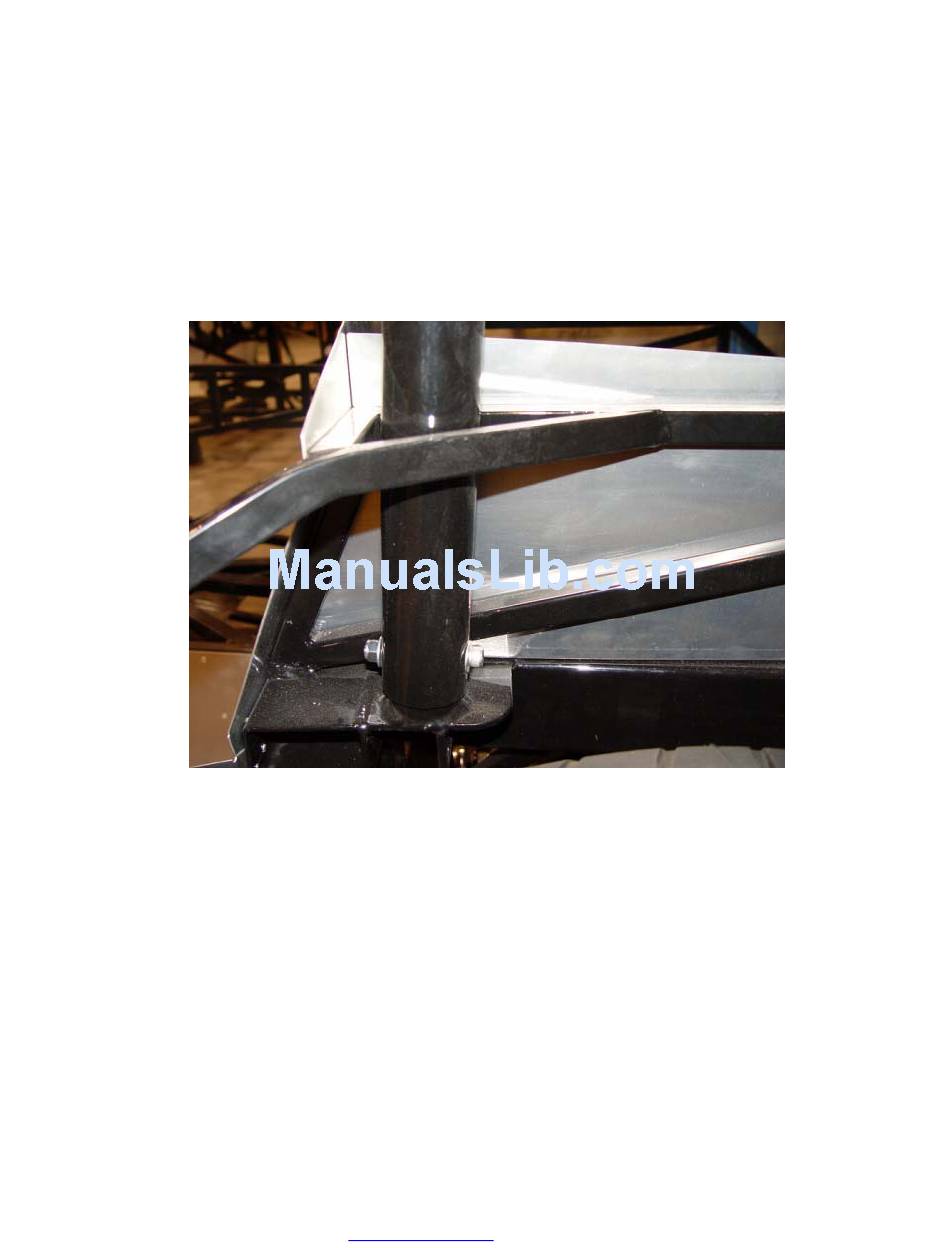

Front outside roll bar bolt.
114
