11. Attach the connectors onto the fuel filter and fuel pump.
12. Run the vapor line to the plastic connector on the fuel tank along with the hard line to the fuel
canister, which will be mounted later to about where the fuel lines end up in the engine bay.
1. Attach the battery ground cable securely to an area free of paint, behind fuel filter bracket. NAPA
sells a 2 ft. long cable with an eyelet at one end and terminal connector at the other end if the donor
piece is not available or is not usable.

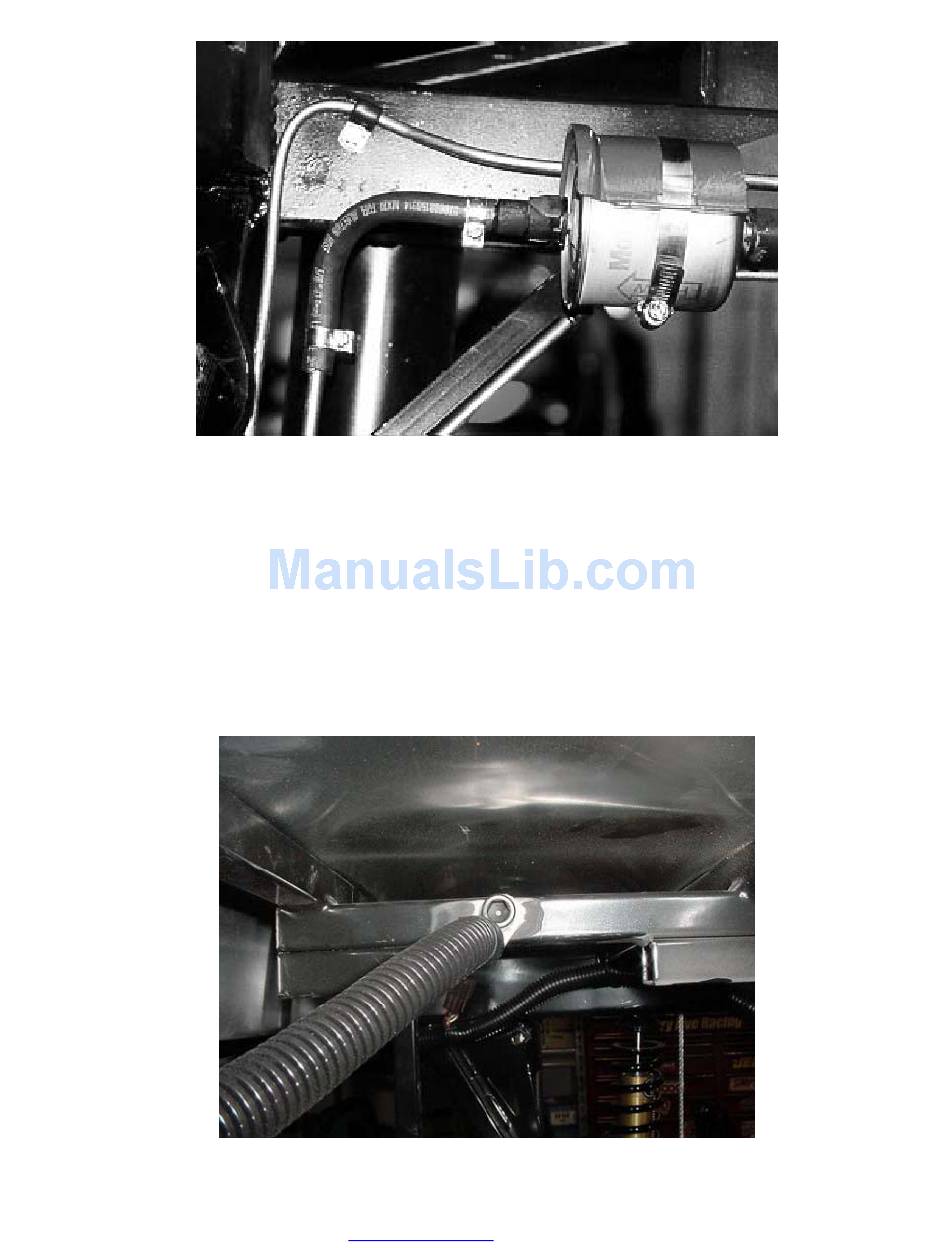

Rubber fuel line and Mustang connector on fuel filter

Battery Relocation Kit

Battery grounded to sanded frame area.
75
www.factoryfive.com
508-291-3443
