11. Fasten the base plates to the body using the enclosed small screws and a matching drill bit to start the
hole.
TOOLS: Drill, / ", /
3
7
32
PARTS: Three lock set and fasteners (FFR# 11019), hood/trunk fasteners (FFR# 10646).
1. Attach the hood pin vertical posts to the top mounting plate.
2. One nut goes on each side of the plate.
3. Adjust the height of the pins.
4. When the hood is on the posts it should just barely touch the post.(This is only for alignment
purposes)
5. Put a small dab of silicone or white grease on each of the hood pin posts.

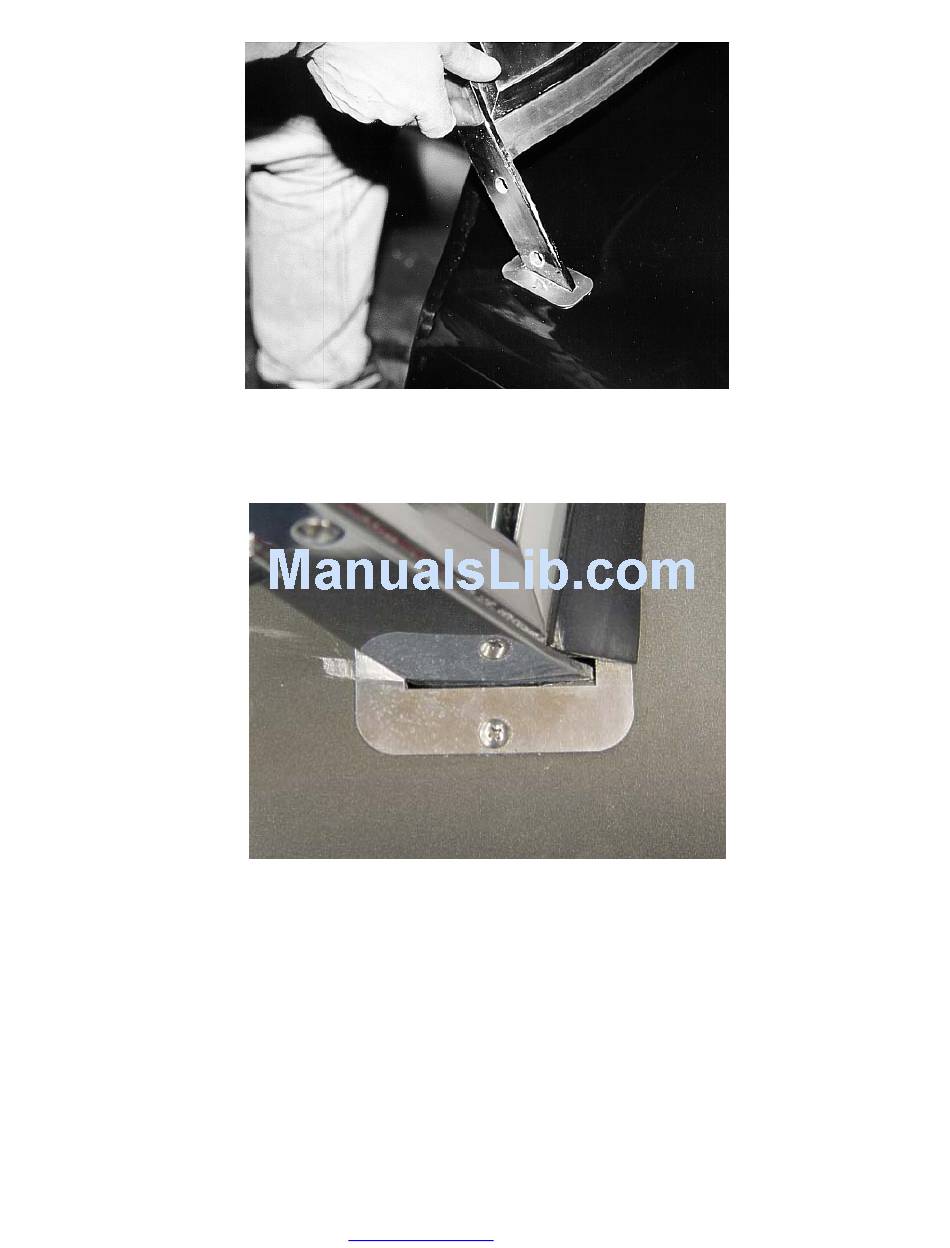

Inserting the windshield with the base plates in place
Base plate screwed to body.
" drill bits, Phillips head screwdriver, (2)
16
www.factoryfive.com

Hood Pins

/
11
142
508-291-3443
.
" combination wrenches.
16
