10. Loosen the bolts on the brackets at the top of radiator.
11. Lift the radiator, shroud and the fan with clutch up and out of the engine bay. Discard or sell the fan.
Keep the shroud. You won't need the Mustang fan since a 16" puller fan is included in the kit.
12. If the car was fitted with A/C, remove the condenser at this time. If you started with a good running
car that has the A/C system intact it's your environmental responsibility to have the Freon removed
and disposed of safely. Don't release this stuff into the ozone.
13. Store radiator, fan shroud and overflow reservoir in a safe place.
TOOLS: Socket set, wrenches or box wrenches for brake lines, tube cutter, tape, and marker pen.
PARTS: Mustang power booster push rod.
1. Remove the brake rod retainer clip from the top of the brake pedal.
2. Remember the order in which these washers and spring clips are removed so that you can reinstall
them faster later.
3. Remove the four bolts that retain the power booster to the firewall, these bolts also go through the
pedal box front mount plate inside the foot-box area.
4. Attach tape to the brake lines and mark their positions on the master cylinder and distribution block.
Leave the lines that go from the distribution block to the master cylinder in place.
5. Cut 4" into the hard brake lines from the distribution block. New brake line is provided with the kit.
6. The power booster/master cylinder assembly can now be taken out of the engine compartment.
TOOLS: ⅝" and / " combination wrenches.
11
16
PARTS: Mustang rack assembly, rubber mounting bushings.
1. Remove the U-joint bolt from the steering column sleeve.

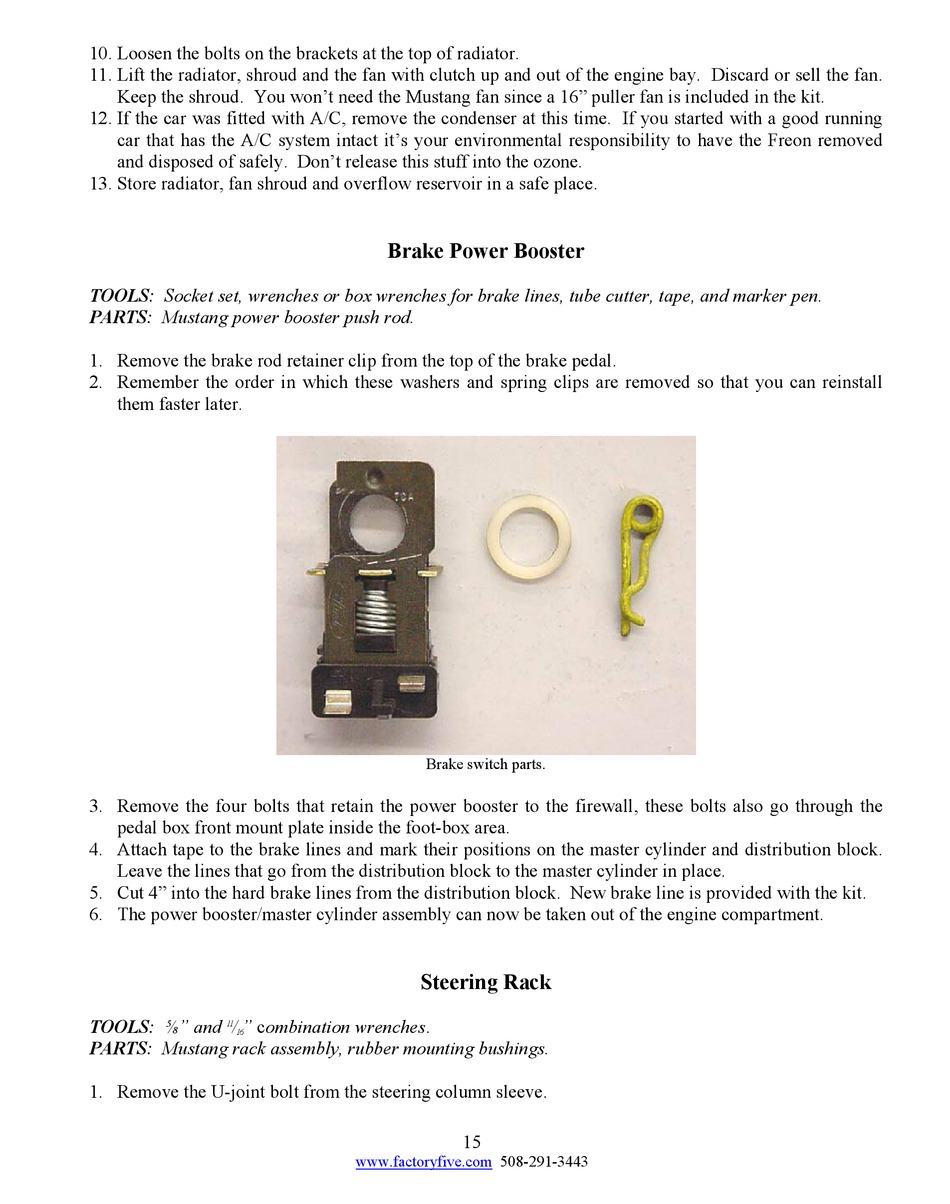

Brake Power Booster

Brake switch parts.

Steering Rack
