Factory Five Racing Mk3 Roadster Assembly Manual page 68

28. Take a look at the completed foot box and floor for gaps between the panels and around the seat
harness mounts. Use silicone to fill these gaps.
1. Position the foot box floor. The front edge sits on top of the front wall bottom tab and the back gets
attached to the 2"x 2" tube.
2. Mark where the rivets will go.
3. Remove the panel and apply silicone to the frame.
4. Attach the foot box top panel to the frame using the factory-mounting hole and self-tapping screws.
Note where the panel touches the frame.
5. Remove the panel.
6. Apply silicone to the underside of the 2"x 2" frame tube where the panel will contact.
7. Install the top panel again with a #8 self-tapping screw.
8. Drill and rivet the panel to the underside only of the 2"x 2" frame tube.
9. Position the foot box inside wall with self-tapping screws in the factory holes. Note where the panel
tabs go under the floor and top panels.
10. Use a ruler and marker to mark where rivets will go.
11. Remove the inside wall.
12. Apply silicone to the inner wall tabs.
13. Install the inner wall with self-tapping screws.
14. Drill and final rivet the panel in place.

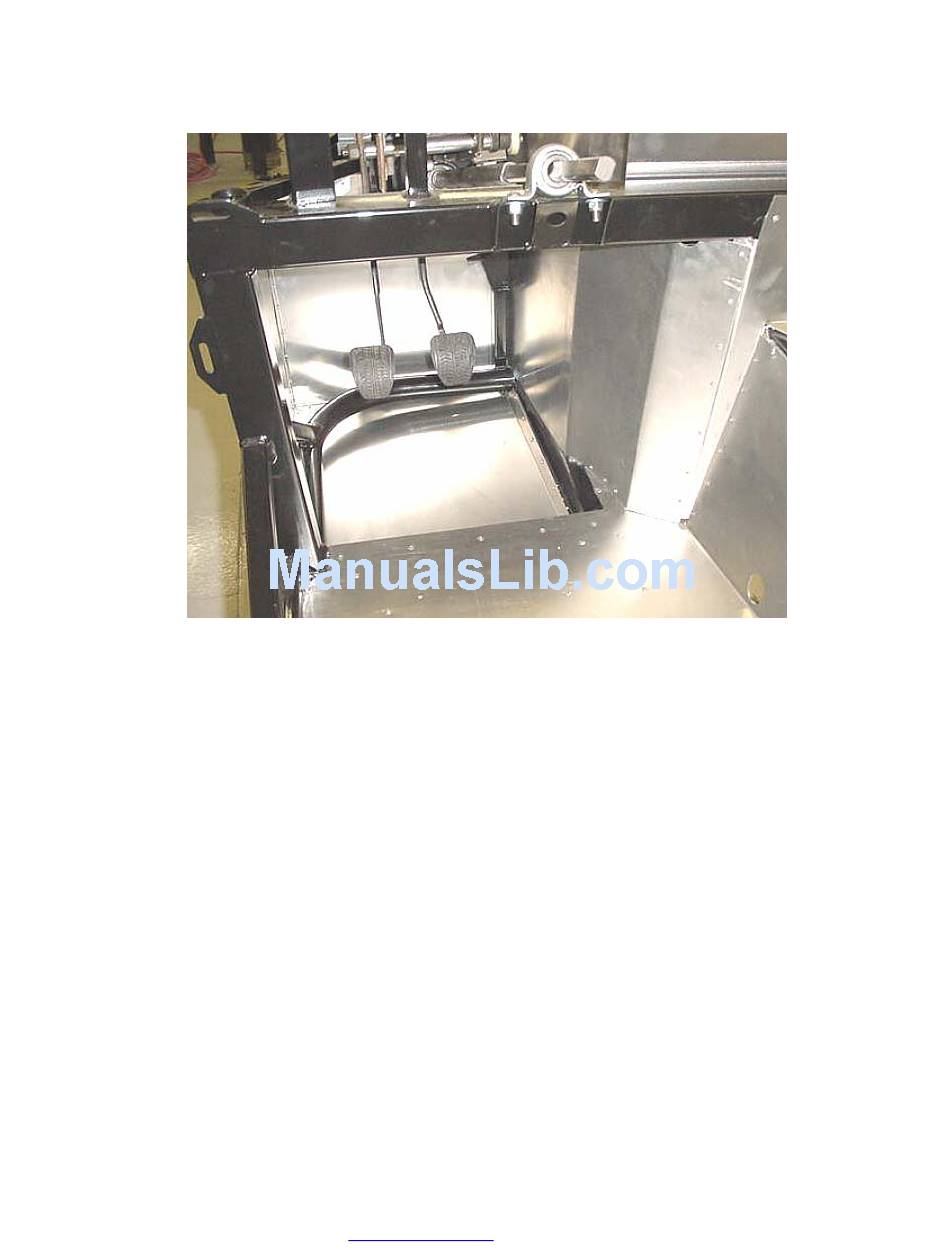

Drivers inside footbox
Passenger Foot Box
