6. Center the hood in the opening and press down.
7. This should leave a couple of small silicone marks on the underside of the hood.
8. Drill two
/
" holes in the hood where the marks are located.
7
16
9. Raise the height of the posts so that they stick through the hood.
10. Place the circular chrome plates, packaged with the hood posts, over the posts.
11. Drill through the circular chrome plates with a
12. Screw the chrome plates to the hood using the short hood pin screws and a Philips head
screwdriver.
13. Adjust the height of the posts and the angle of the hole through the posts so that the hood is held
firmly in place. The pins can be removed and installed pointed in the direction desired.

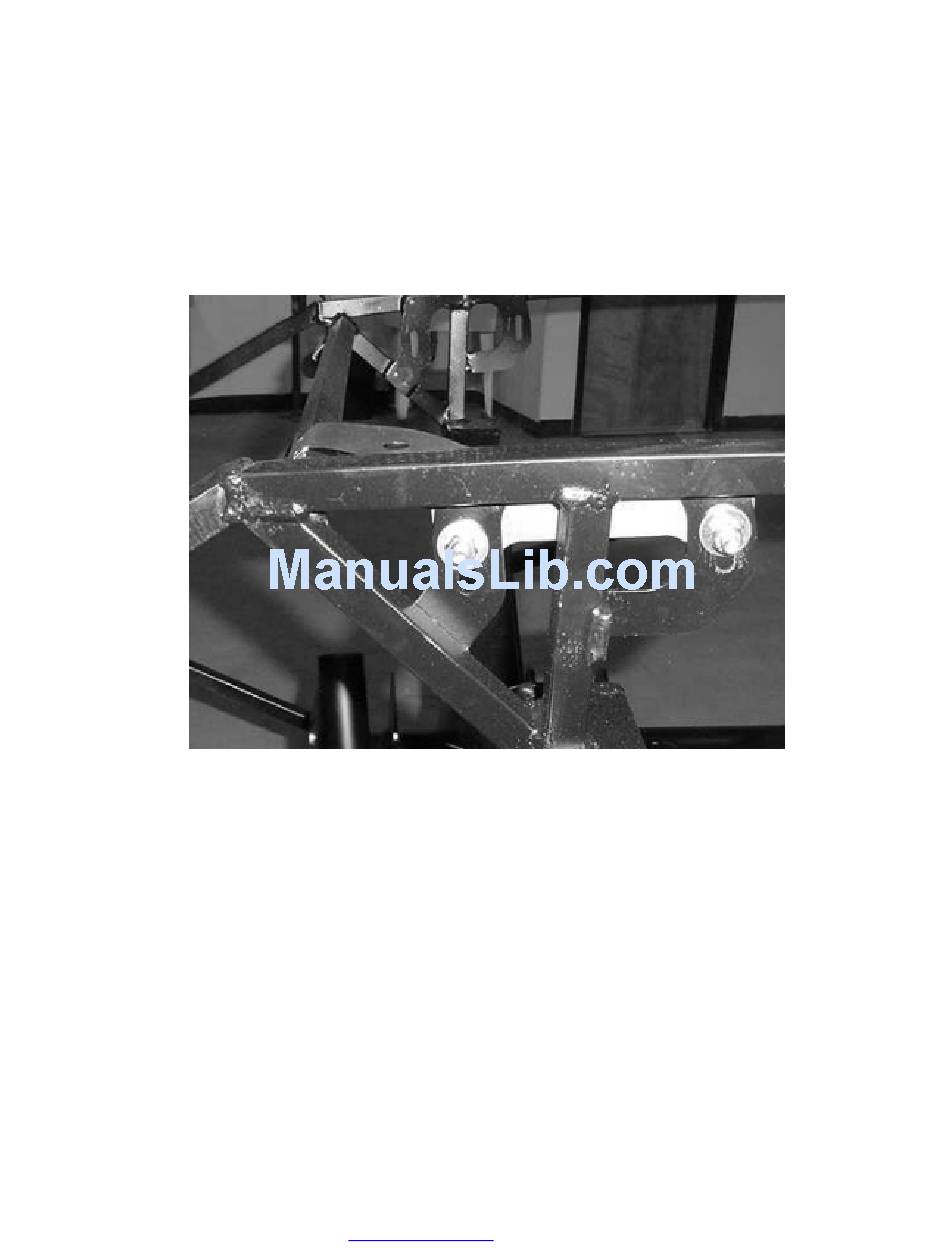

Hood pin side mounting plate with top plate bolted in
ATTENTION: Take your time to align the doors properly.
TOOLS: ½",
/
" deep socket, vise grips, drill, ⅛" drill bit, 13mm combination wrench, rivet tool,
9
16
silicone, caulk gun, #8 nut driver, White lithium grease or WD 40.
PARTS: Black vinyl trim (FFR# 13990), door components (FFR# 11065), secondary body fasteners
(FFR# 10788).
1. Remove the cover from the latch.
2. Apply lithium grease to the rotating plate and pin.
3. Work the latch until the action is smooth and easy.
4. Attach the latch to the door using four of the small screws.
/
" drill bit.
