3. Repeat on the other side of the body. These ovals will be the slots through which the
windshield bars will insert.
ATTENTION: Use caution when cutting.
photocopies of the template (one for each side of the car) from Appendix A so that it does not get
lost or destroyed.
TOOLS: Hand jigsaw, 2.5" hole-saw, drill, marker, clear tape.
1. Cut out the side exhaust template from Appendix A.
2. The template goes down to the bottom edge of the body. There is nothing but air under the side
exhaust.
3. Tape or hold the template and mark around it with a pen.
4. Use a 2.5" hole saw in the two upper corners to ease the amount of cutting needed and to make the
corners look nicer.
5. Use a jigsaw to cut out the marked area.
6. The template is tight so enlarge the holes after fitting the side pipes later if desired. Do not allow the
exhaust to get too close to the body or it will cause the paint to blister from the heat.

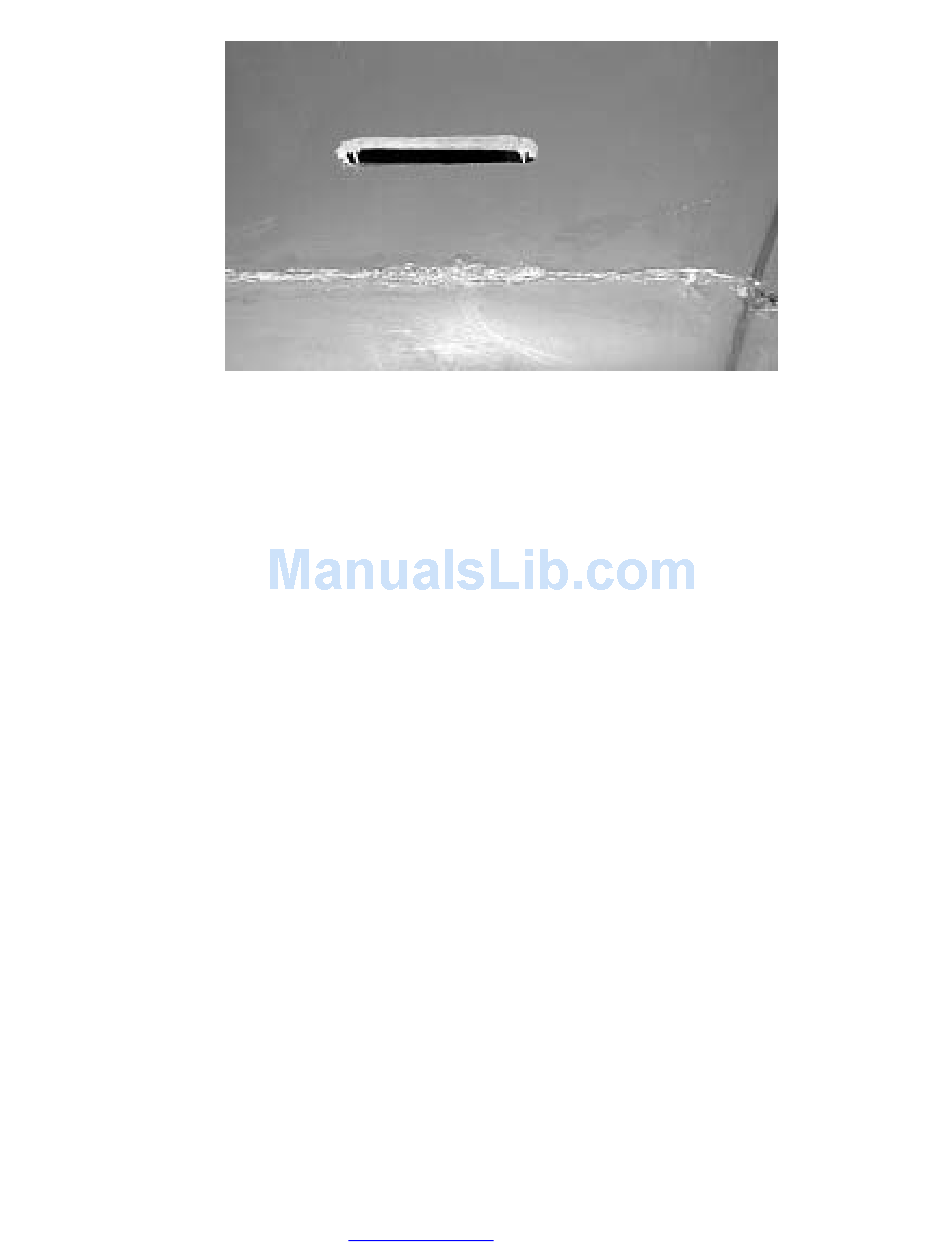

Connect the two holes with a jig saw to form the windshield slot
Side Exhaust Cut-Outs
Go slowly measure twice, and cut once. Make two
