Fuel Line - Factory Five Racing Mk3 Roadster Assembly Manual

From Master Cylinder Rear
Firewall
6. From the distribution block, run the line forward along the ¾" tubing to the front side of the "X"
member for a clean engine appearance. Go down along the "X" and up again then along the ¾" tube
to the right front brake bracket.

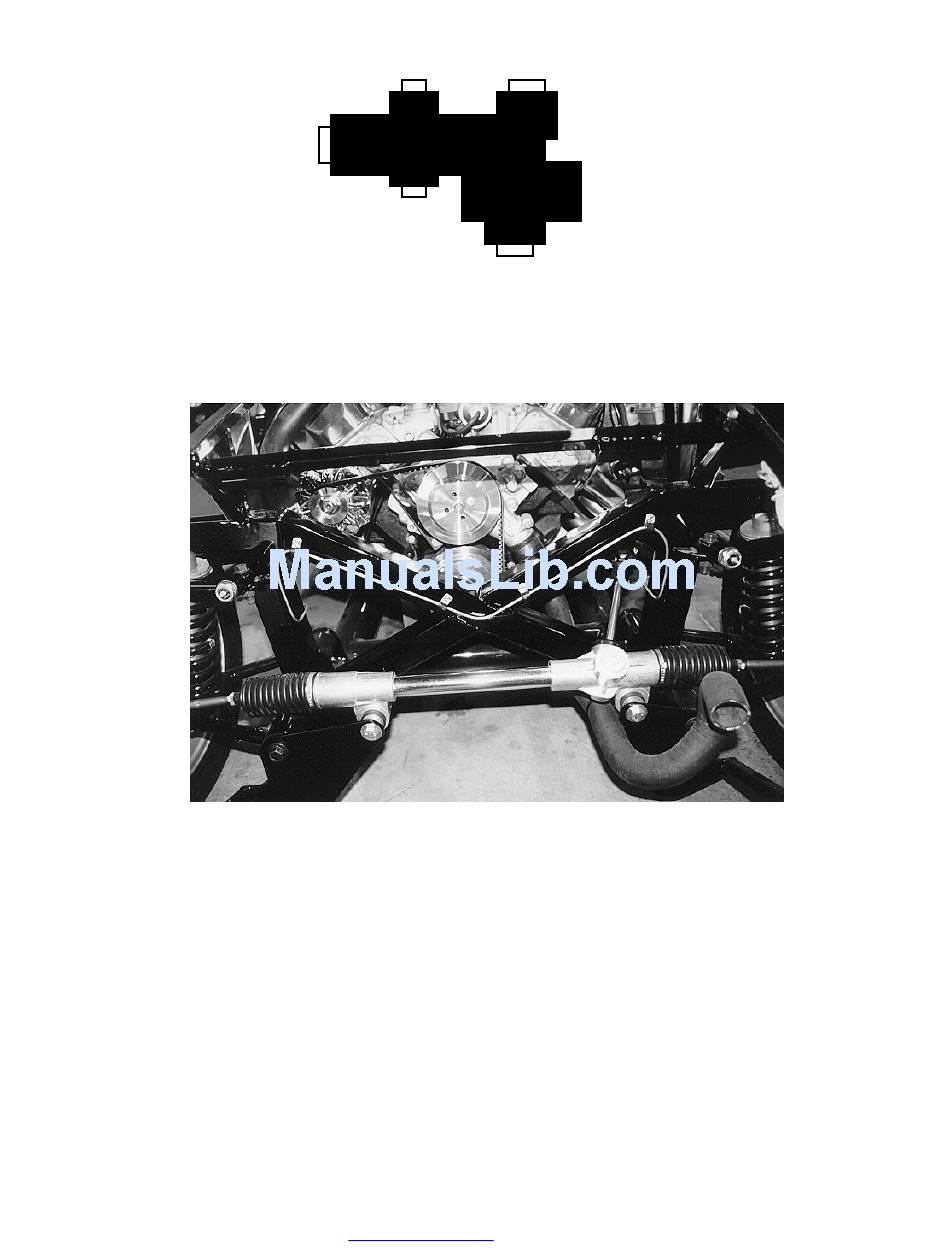

Brake line routing along frame X-member. This Mark II has a manual steering rack.
1. The ¼" return (FFR# 10784) and
line is used from the Mustang donor.
2. Measure two feet of both lines and mark with a marker pen. Use a tube bender of the appropriate size,
make a 90° bend at the point marked. This bend goes at the front right corner of the passenger foot-
box so that the lines stick straight up in the air and give enough so that the exact engine location can
be made.
To Right
Front Brakes
Brake distribution block line routing. Right is towards front of car

Fuel Line

/ " send (FFR#10783) fuel lines are provided in the kit. The vapor
5
16
