Factory Five Racing Mk3 Roadster Assembly Manual page 105

3. Place the mid-trunk floor panel (FFR# 10560) over the roll bar tube mounts by arching the panel up in
the middle lengthwise and passing it from the cockpit side into the upper trunk. This can be tricky,
but take your time and it will fit without damage. This is one of those steps where you need to take
your time and proceed slowly.

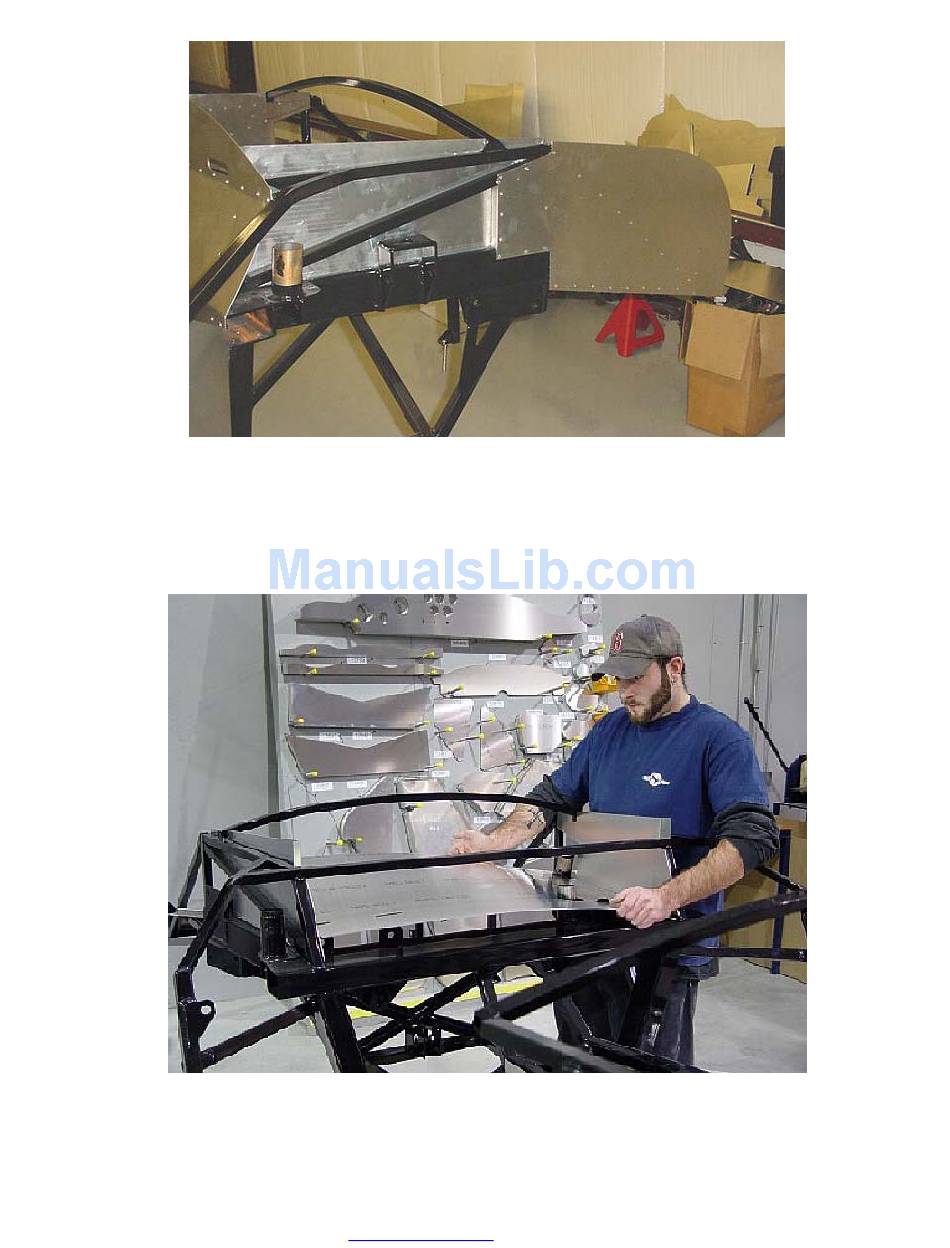

Fitting the mid-trunk panel. Bend the panel as shown and insert the passenger's side first.
4. Trace around the frame with a marker.
5. Remove the aluminum panel. Measure and mark the panel for the rivets every 2-3 inches.
6. Drill ⅛" holes where the rivet holes were marked.
Trunk front and rear side walls.
