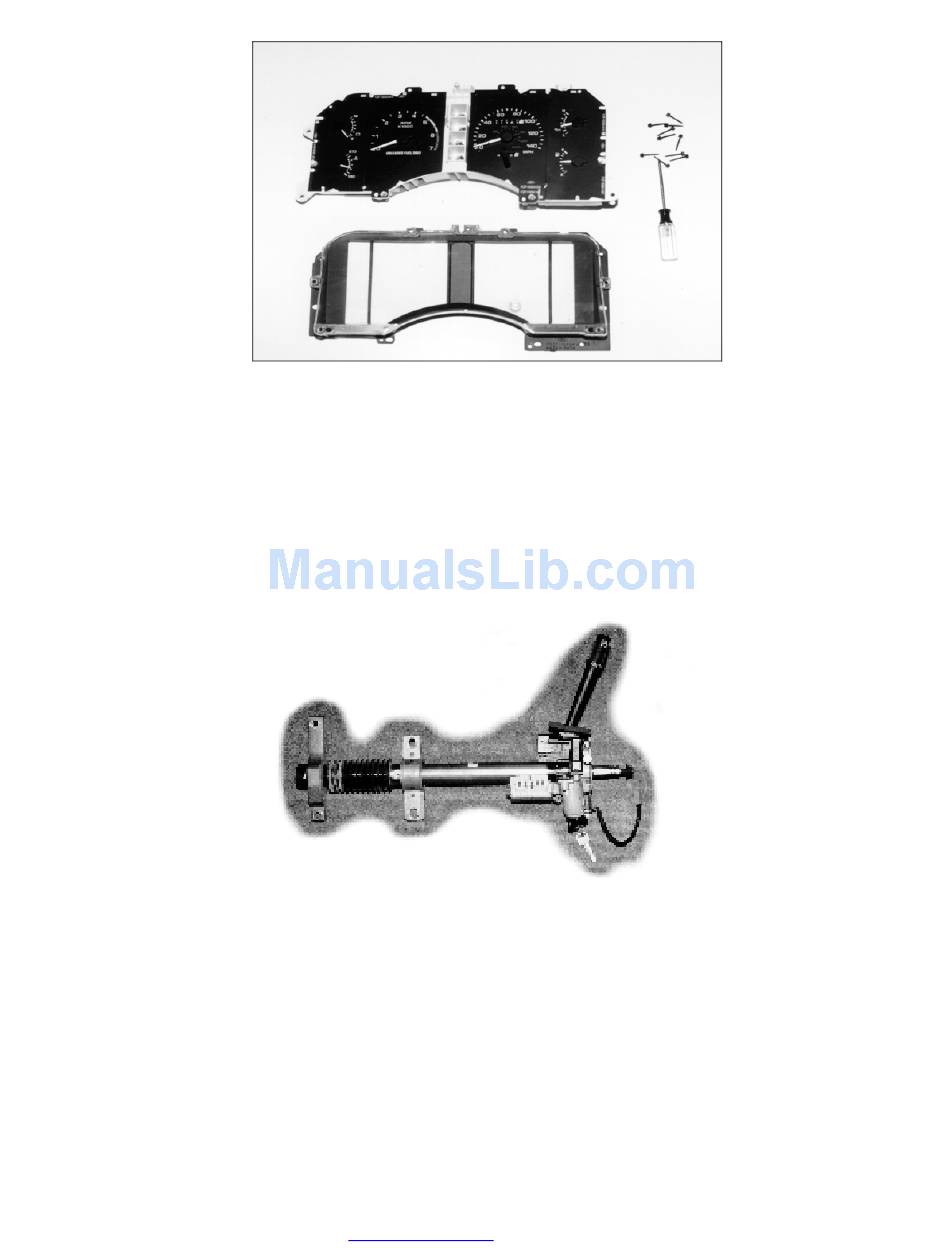

Mustang gauges mounted in gauge pod
5. The two gauge wiring connectors are removed from the gauge cluster by squeezing the outside clips.
Remove the clear plastic gauge cover with a Torx screwdriver and discard. Place the switches and gauge
pod in your parts area, awaiting kit assembly.

Turn Signal and Ignition Switches

TOOLS: Socket set, extension, Phillips head screwdrivers, needle nose pliers.
PARTS: Turn signal and ignition switches
Steering column (with ignition, turn signal stalk, and under dash mounts).
1. Remove the steering column mounts located under the dash above the driver floor. Allow the column
to fall down.
2. Remove the wiring connectors have from the turn signal and ignition switches.
3. Remove the turn signal stalk and the ignition switches from the column.

Dash Wiring Harness

TOOLS: Socket set, extension, regular, Torx and Phillips head screwdrivers, needle nose pliers,
hammer, and marker tape.
19
