Side Louvers - Factory Five Racing Mk3 Roadster Assembly Manual

4. Pass the pin through pre-drilled hole in the body, then the pin sleeve and on through the aluminum
and the / " plate on the frame.
1
16
5. Put the washer and nut on the pin and tighten with a ⅜" wrench and regular screwdriver.
6. Engage the T-Handle and make sure that the latch hooks onto the pin securely.
7. Lock the handle and make sure it stops the trunk from opening.
Note: Trim the sleeve if necessary to pull the body into alignment with the trunk lid
TOOLS: Silicone, caulk gun, and duct tape.
PARTS: Side Louvers (FFR# 10985)
1. Bend more of an angle into the louver fins carefully if desired.
2. Lay a thick bead of silicone on the upper and lower flat sections of the louvers.
3. Position the louvers on each side of the body, the louvers act as air exits from the hot engine bay so
the forward edge of the blades should be pointing toward the inside. Apply duct tape to both edges of
each louver to secure until silicone cures.

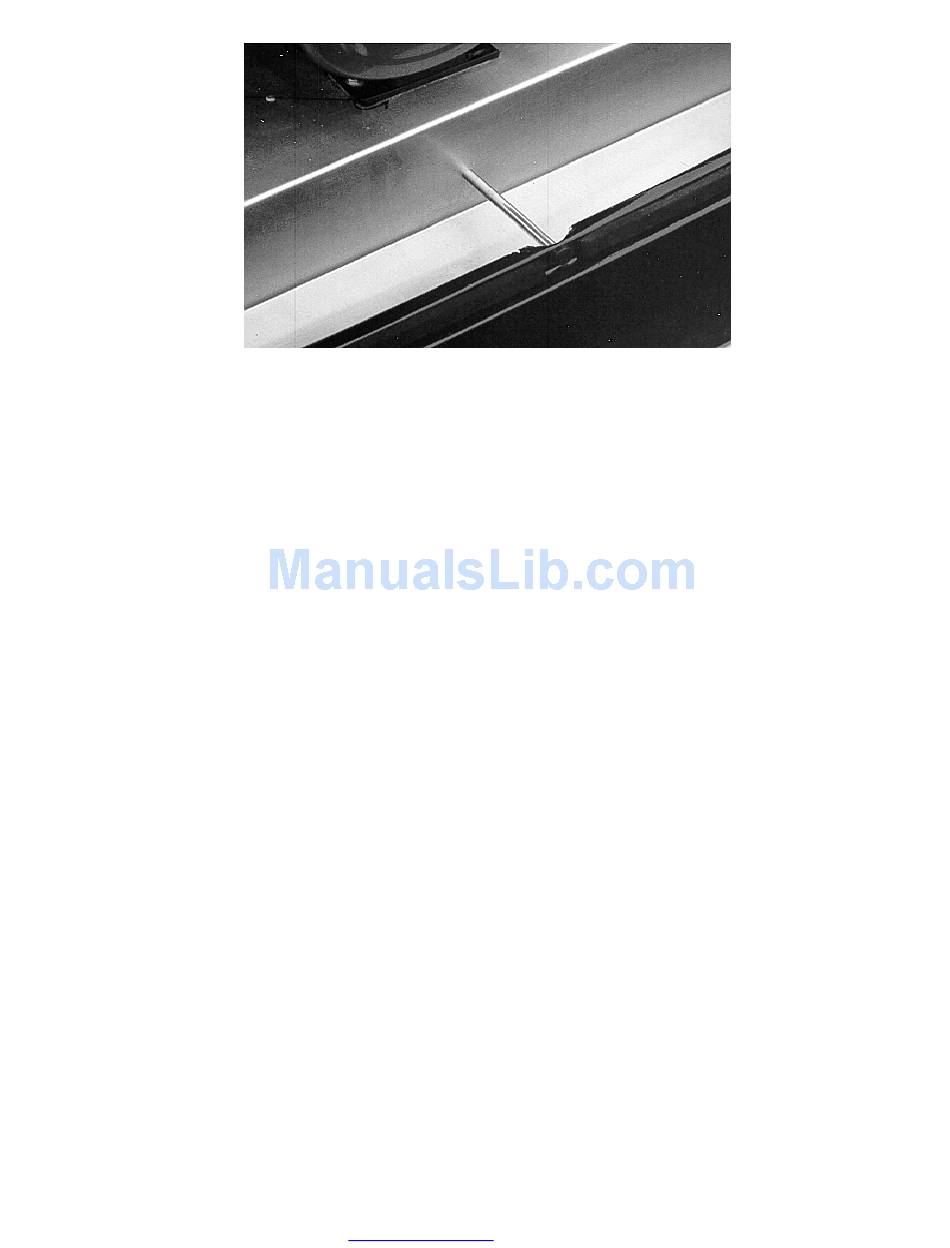

Trunk latch pin mounted in trunk.

Side louvers
