Turn Signal Lights; Tail-Lights - Factory Five Racing Mk3 Roadster Assembly Manual

TOOLS: 8mm deep socket, wire strippers, wire cutters, electrical tape, marker, Chilton's manual.
PARTS: Front turn signals and hardware (FFR# 11044).

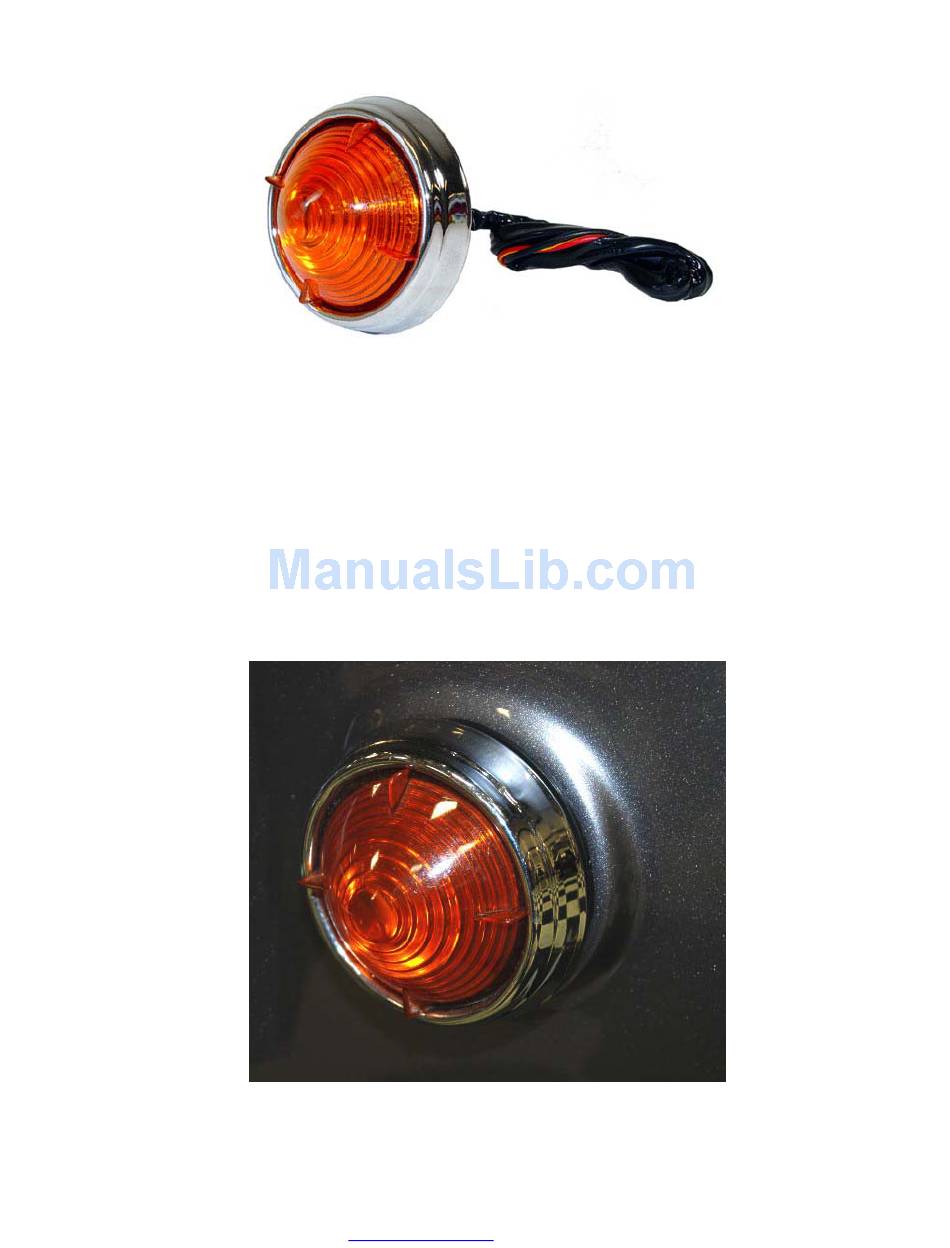

1. Mount the light to the body with the provided fasteners and an 8mm deep socket and ratchet.
2. Wire the turn signals up to the Mustang harness. The driver's side Mustang turn signal wire is light
green/white. The passenger's side is white/light blue. The running lights are brown. On the light, the
red wire is the dim light and the green wire is the bright light and the brass ring is the ground.
3. If the turn signals do not work when the lights are hooked up, the answer is commonly found in the
wiring harness. In the Mustang harness, the turn signal flasher gets its power from the rear defroster
circuit. Since this is not hooked up, the power lead for the flasher (purple/orange wire at flasher-one
over the passenger footbox) must be cut and hooked into the #2 fuse box hole which has a red wire on
one side and now the flasher lead on the other.
