Accelerator Cable

Accelerator cable components, insulated clip hardware
The cable design is set up for a 96-04 4.6L Mustang engine with an OEM pedal but using the supplied
ball studs and retainers it can be adapted for all applications.

87-93 5.0L Fuel Injected Applications

Run the accelerator cable to its proper position on the engine.

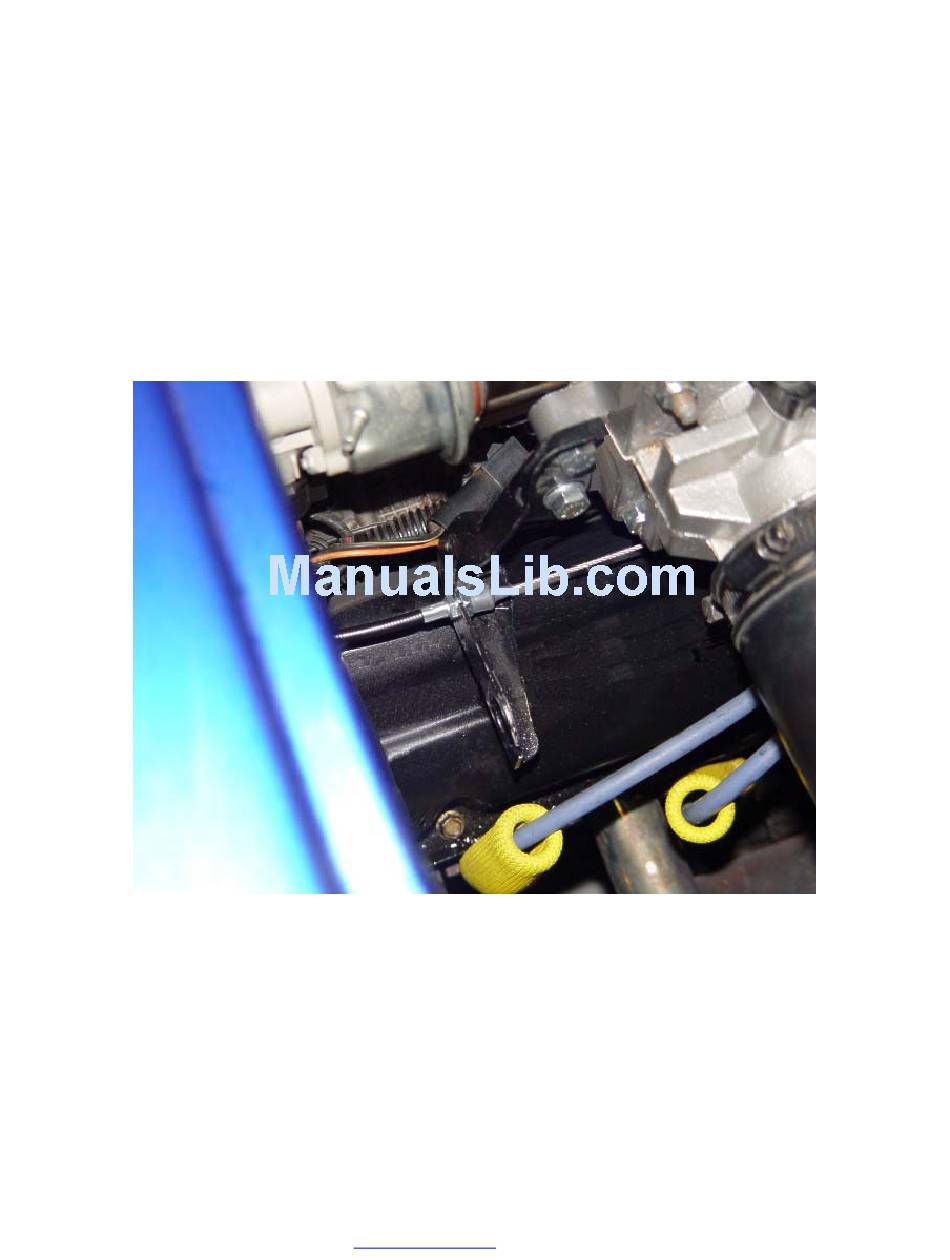

Attach the engine end of the cable sheath to the cable mount on the intake using ⅜" and / " wrenches
7
16
and push the cable wiper onto the remaining threads.
There is a ball stud and retainer in the accelerator cable components to help attach to the throttle body on
87-93 applications.
Cut the barrel fitting off the end of the cable.
229
